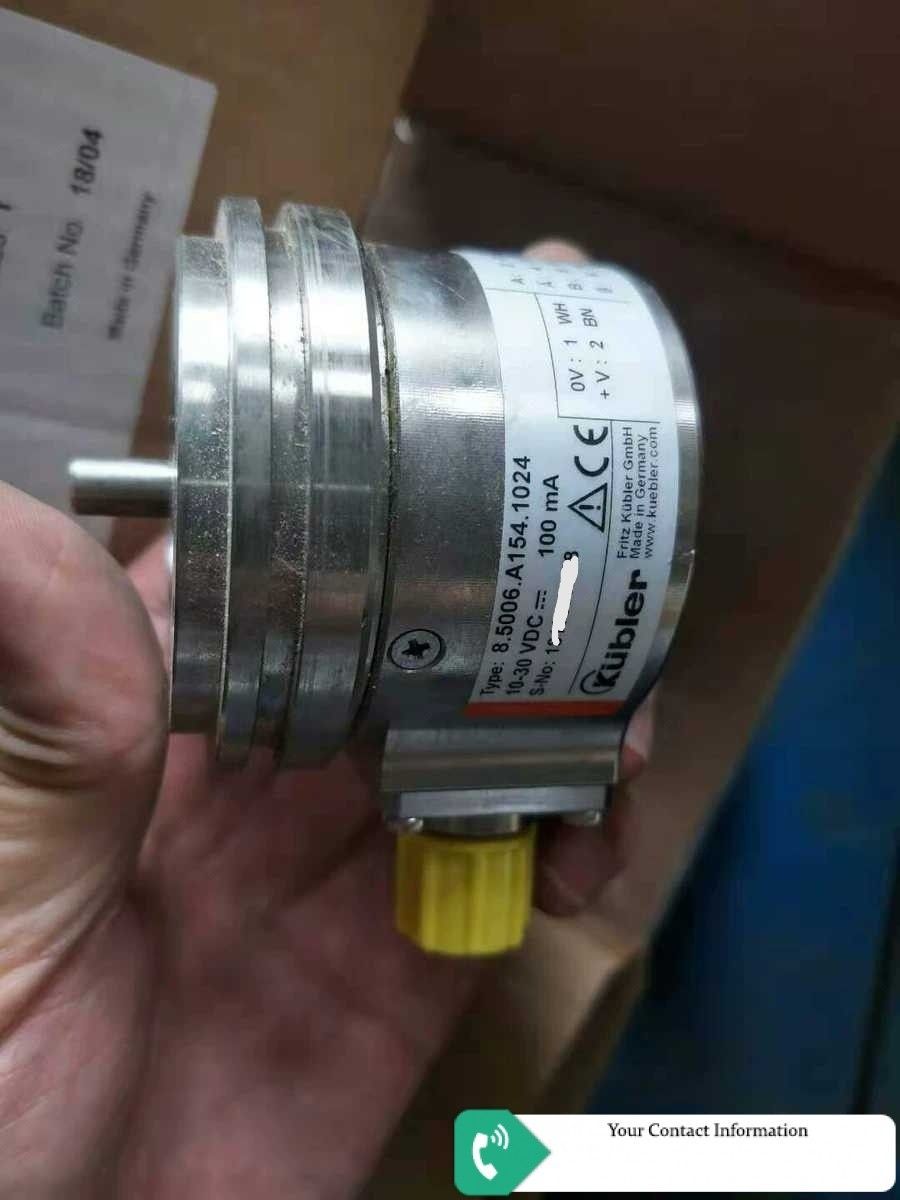

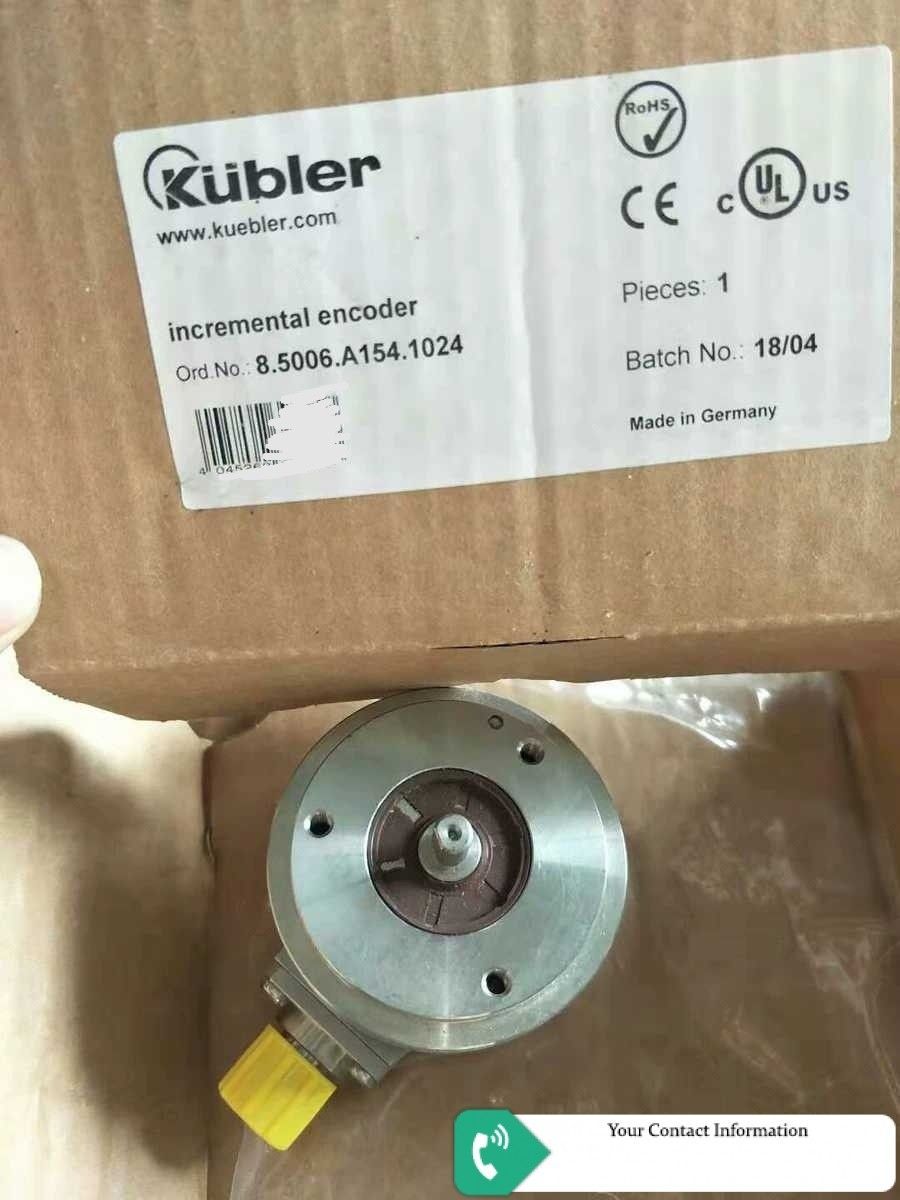

Incremental encoders KUEBLER
The incremental Sendix encoders 5006 in stainless steel offers optimum material resistance and thus virtually unlimited durability.
The high-grade seals, the IP66 /IP67 level of protection as well as the wide temperature range additionally ensure impermeability and ruggedness.
Flange = A = synchro flange ø 58 mm [2.28“]
Shaft (ø x L), with flat = 1 = ø 6 x 10 mm [0.24 x 0.39“]
Output circuit / power supply = 5 = push-pull (with inverted signal) / 10 ... 30 V DC
Type of connection = 4 = radial M12 connector, 8-pin
Pulse rate = 1024
