Pepperl & Fuchs

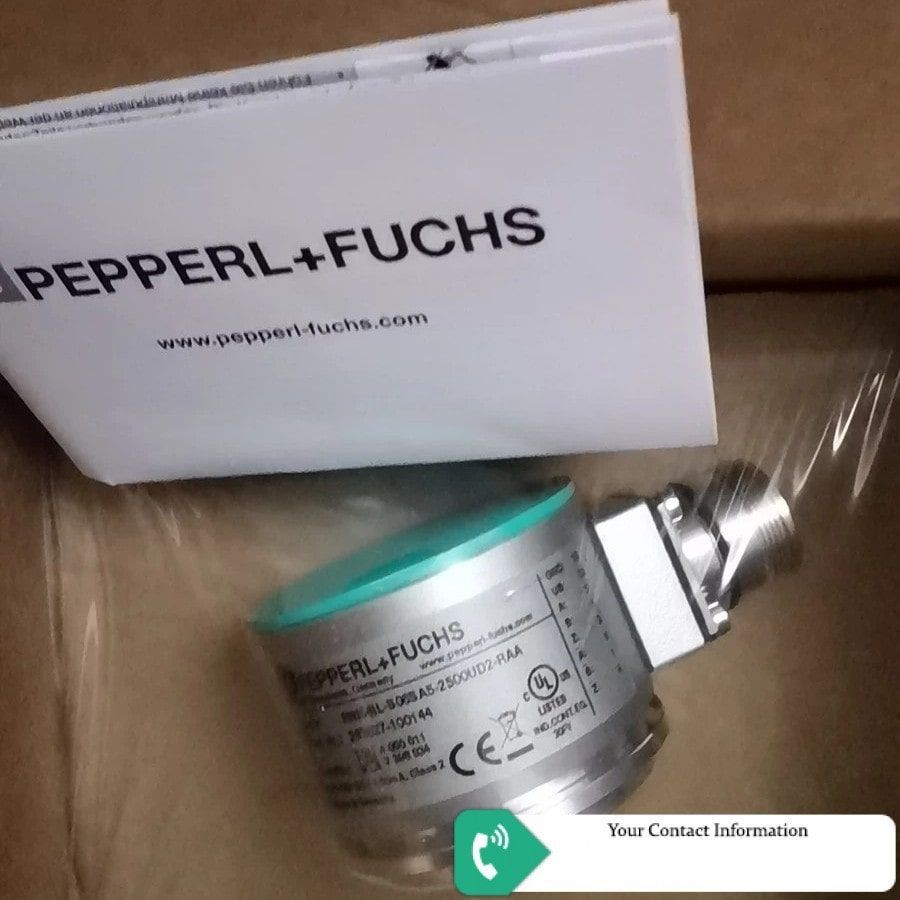

ENI58L-S06SA5-2500UD2-RAA
Incremental rotary encoder ENI58IL-S
Housing ∅ 58 mm
Solid shaft
Servo or clamping flange
Up to 5000 ppr
Universal output driver
BlueBeam technology for ultimate precision
ENI = Incremental rotary encoder
58 = Housing diameter 58 mm
IL = Industrial Line
S = Solid shaft
Shaft diameter : 06 = 6 x 10 mm
SA = Servo flange
5 = IP65
Pulse count = 2500
UD2 = RS422, UB 5 V ... 30 V
Connection alignment : R = radial
Connection type : AA = M23 device plug clockwise (type 9416)
