Endress+Hauser

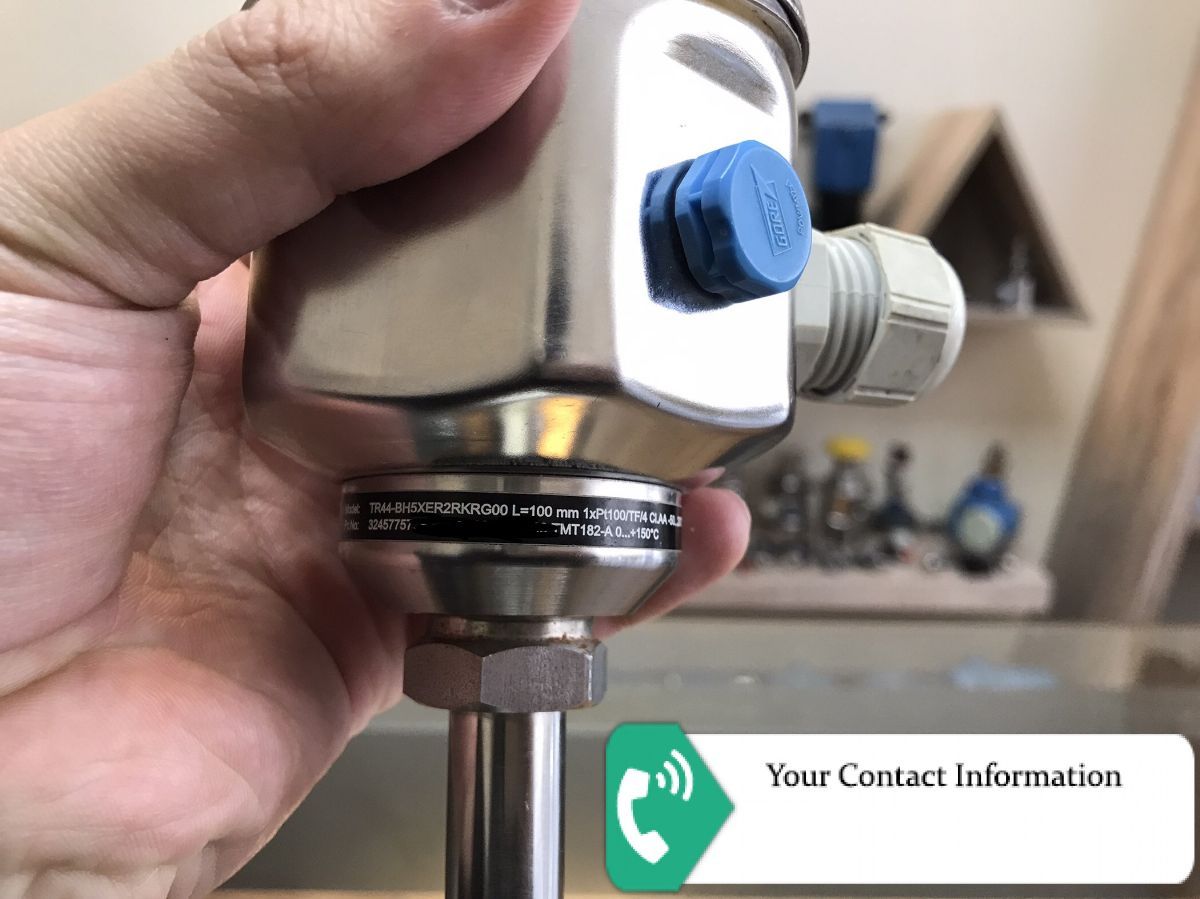

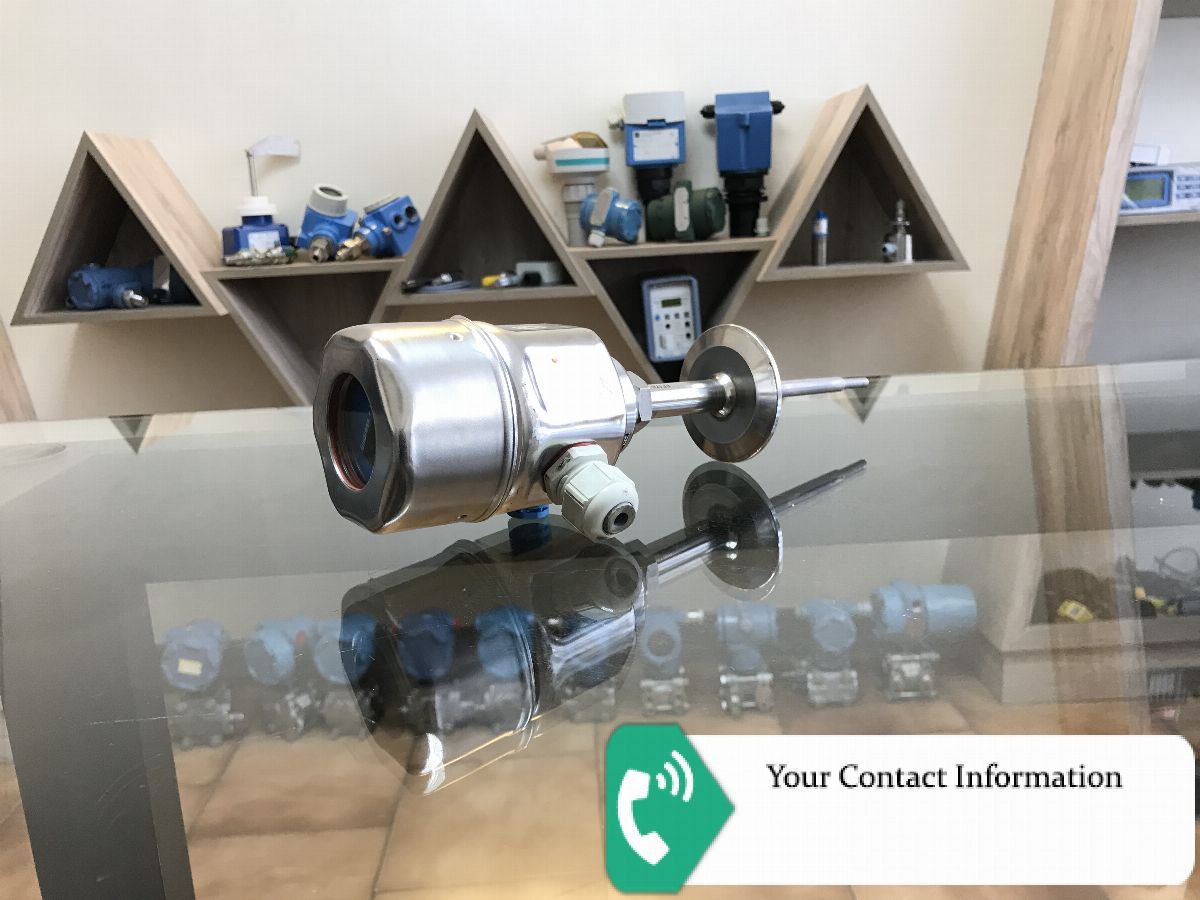

TR44-BH5XER2RKRG00
Process Connection: BH = 2" ISO2852 Tri-clamp, 3A
Neck Length E; Diameter D: 5 = 82 mm, 15mm
Immersion Length L: X = ..... mm
Pipe Diameter; Material; Finishing: E = 8mm; 316L, Ra<=0.8um
Tip Shape: R = Reduced, D=8mm
Terminal Type: 2 = Flying leads
RTD; Wire; Meas. Range; Class; Validity: R = 1xPt100 TF; 4; -50/200oC; AA: 0/150oC

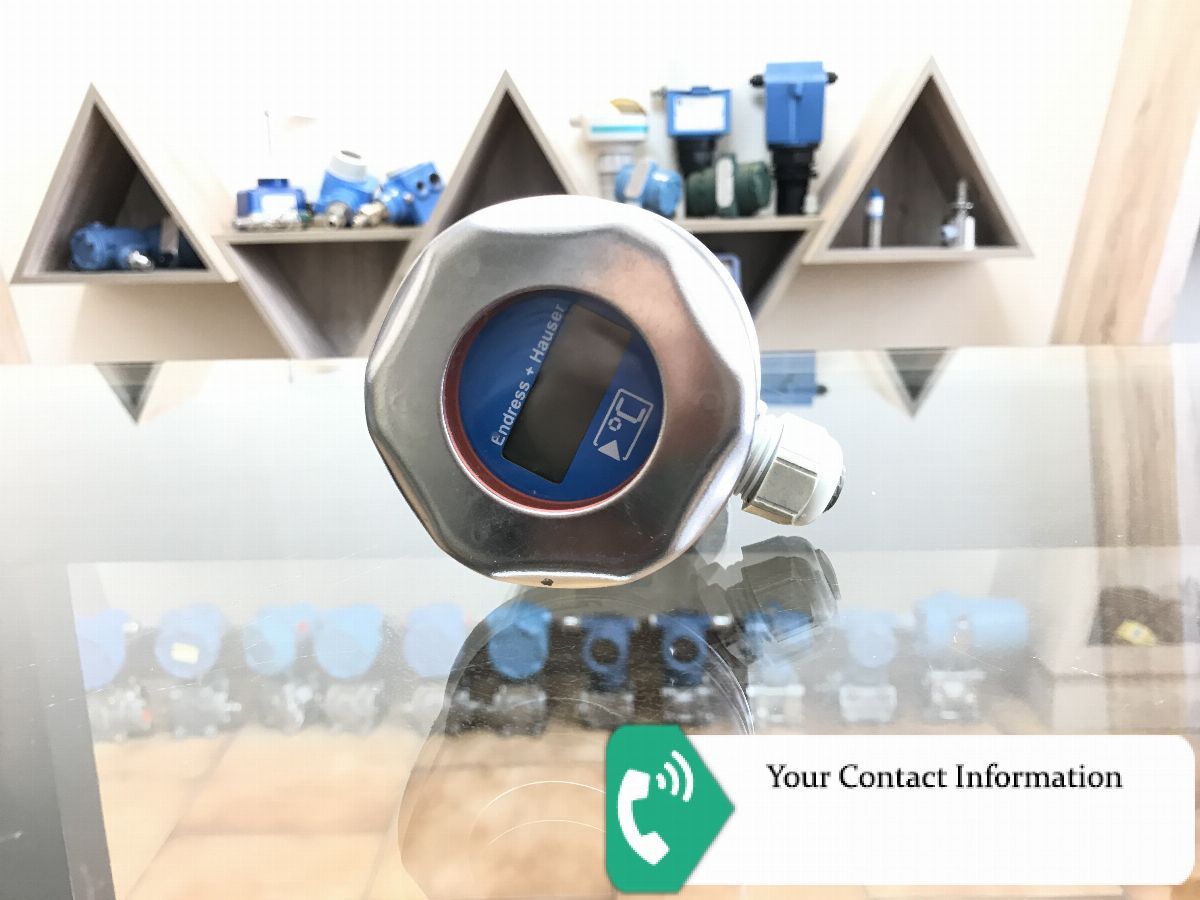

Head; Cable Entry: K = TA20J 316L, display, IP66/IP67; M20

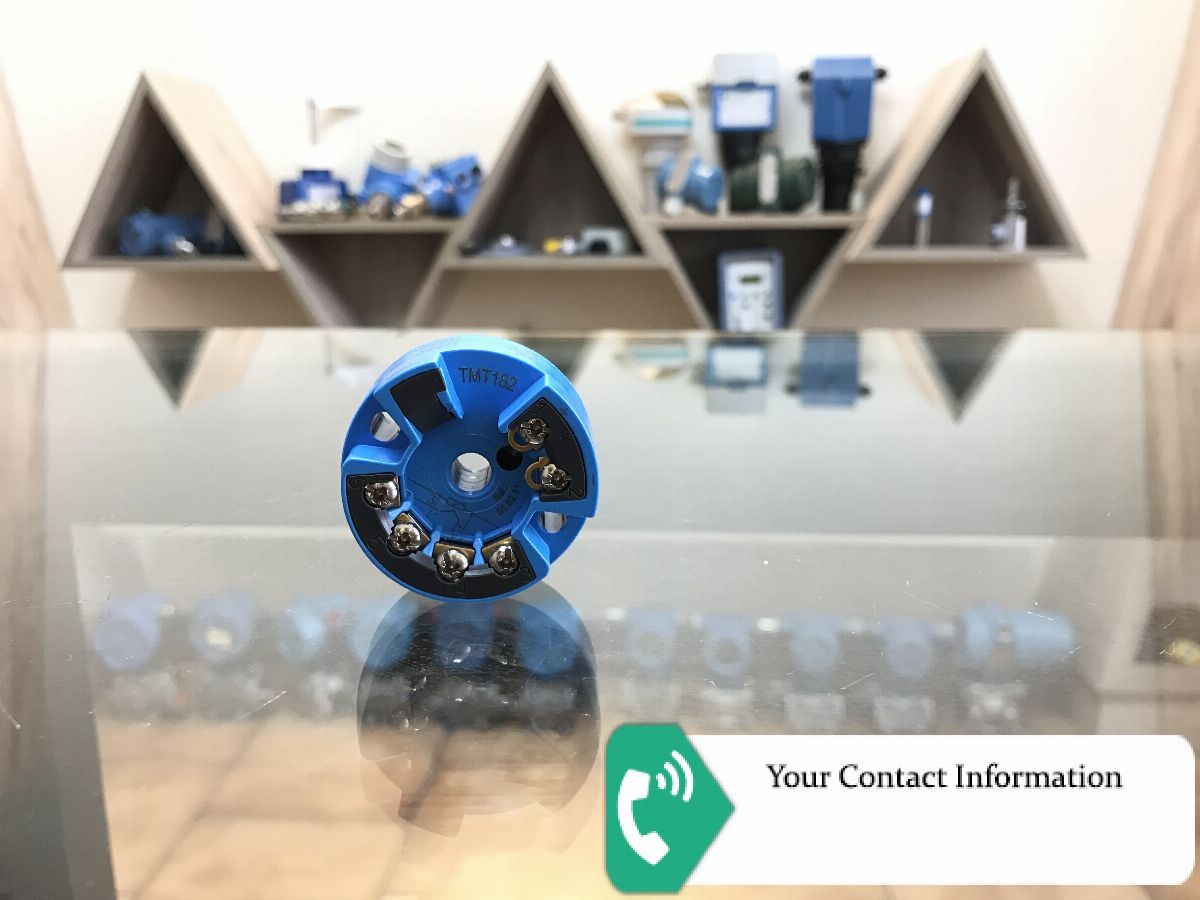

Head Transmitter; Range: R = TMT182-A (HART, SIL2); temp. range to be spec., insulated
Material Certificate: G = EN10204-3.1 material
Test/Calibration: 0 = Not needed
Additional Option: 0 = Not needed
