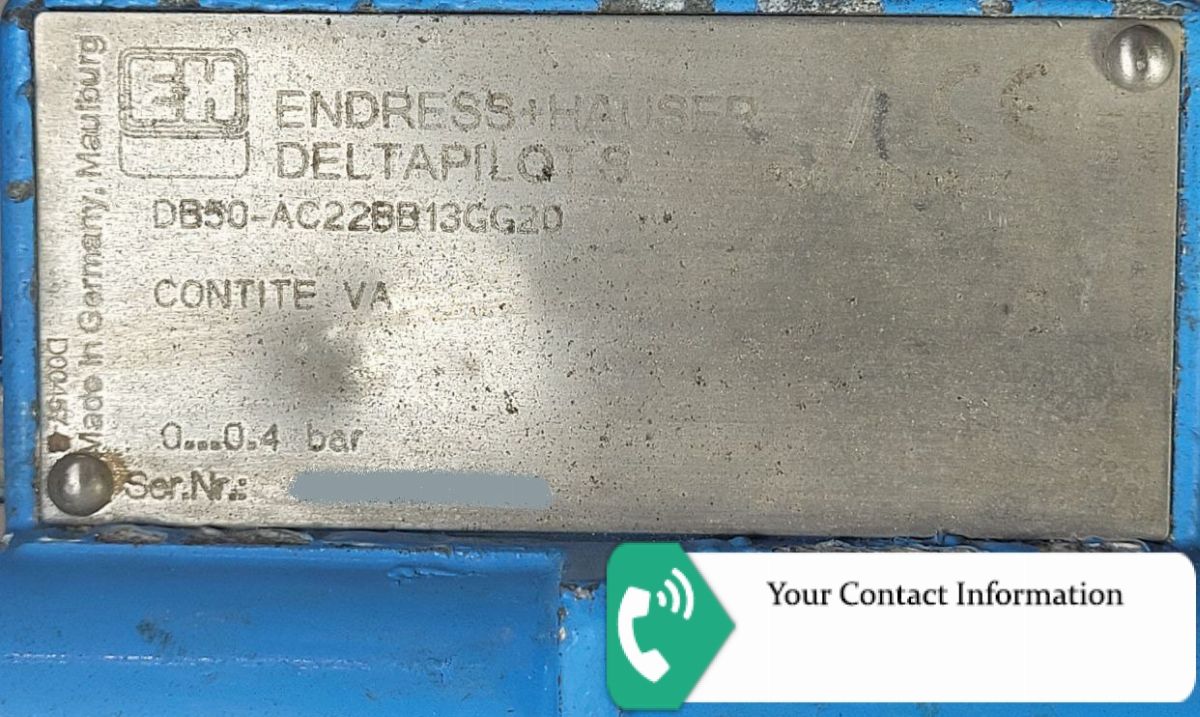

DB50-AC22BB13GG20
Approval: A = Non-hazardous area
Probe: C = Compact version

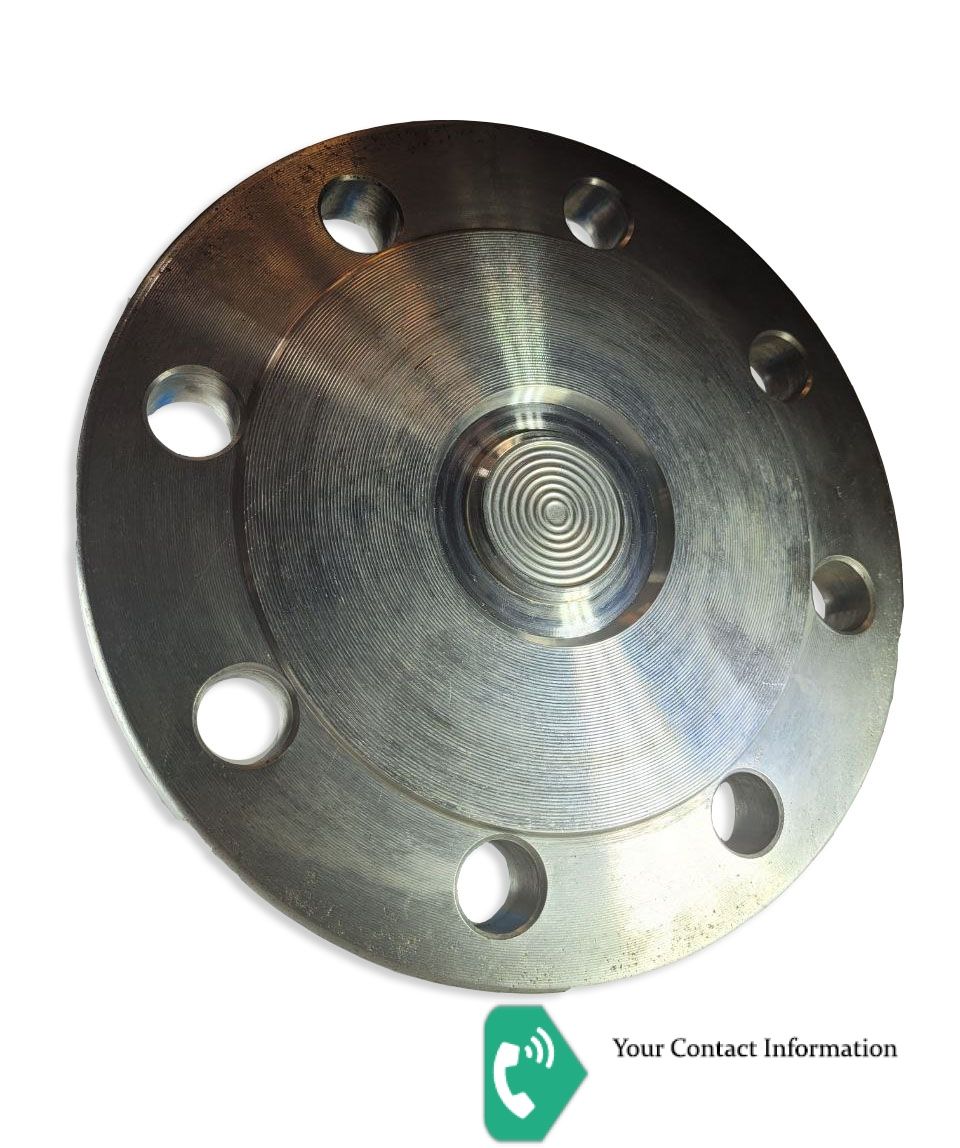

Process Connection: 22 = DN80 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
Measuring Range: BB = 0...400mbar/4mH2O/160inH2O
Linearity; Fill fluid: 1 = < 0.2%; FDA compliant
Measuring Sensor Seal: 3 = Sensor welded

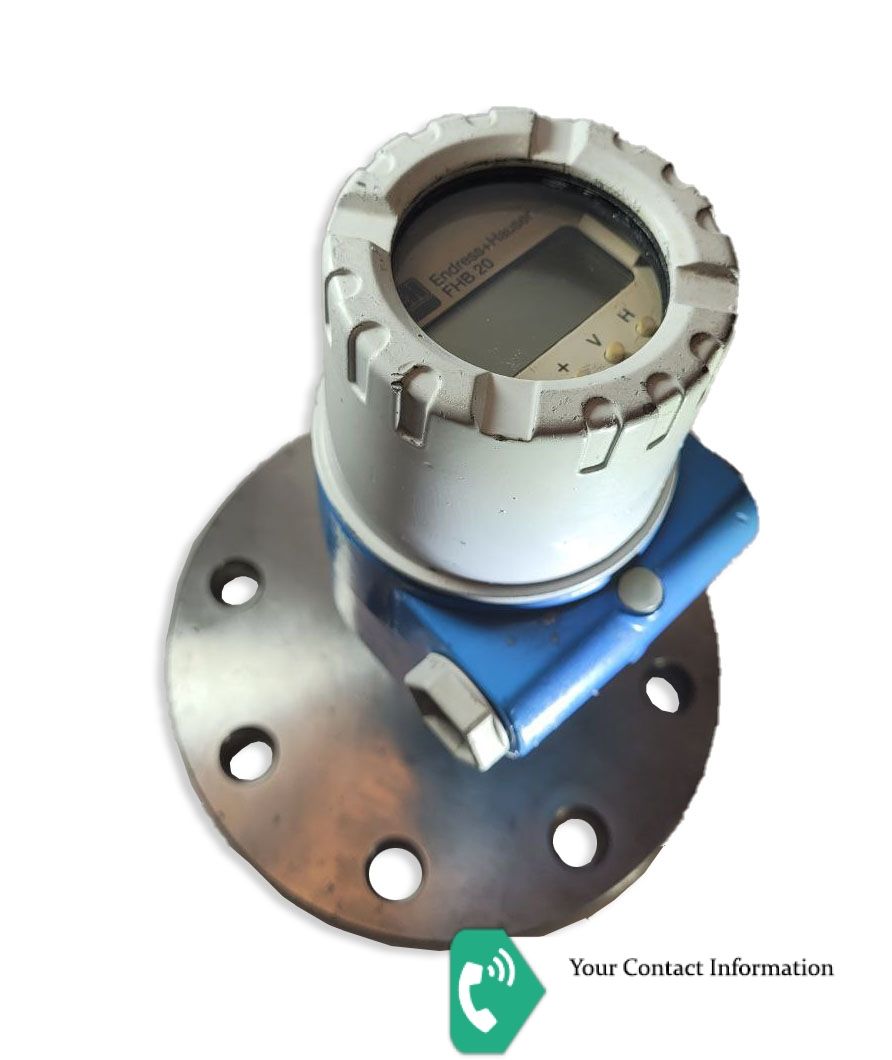

Electronics; Output: G = FEB22; 4-20mA HART + display
Housing; Cable Entry: G2 = Alu IP66; gland M20
Additional Option: 0 = Basic version
