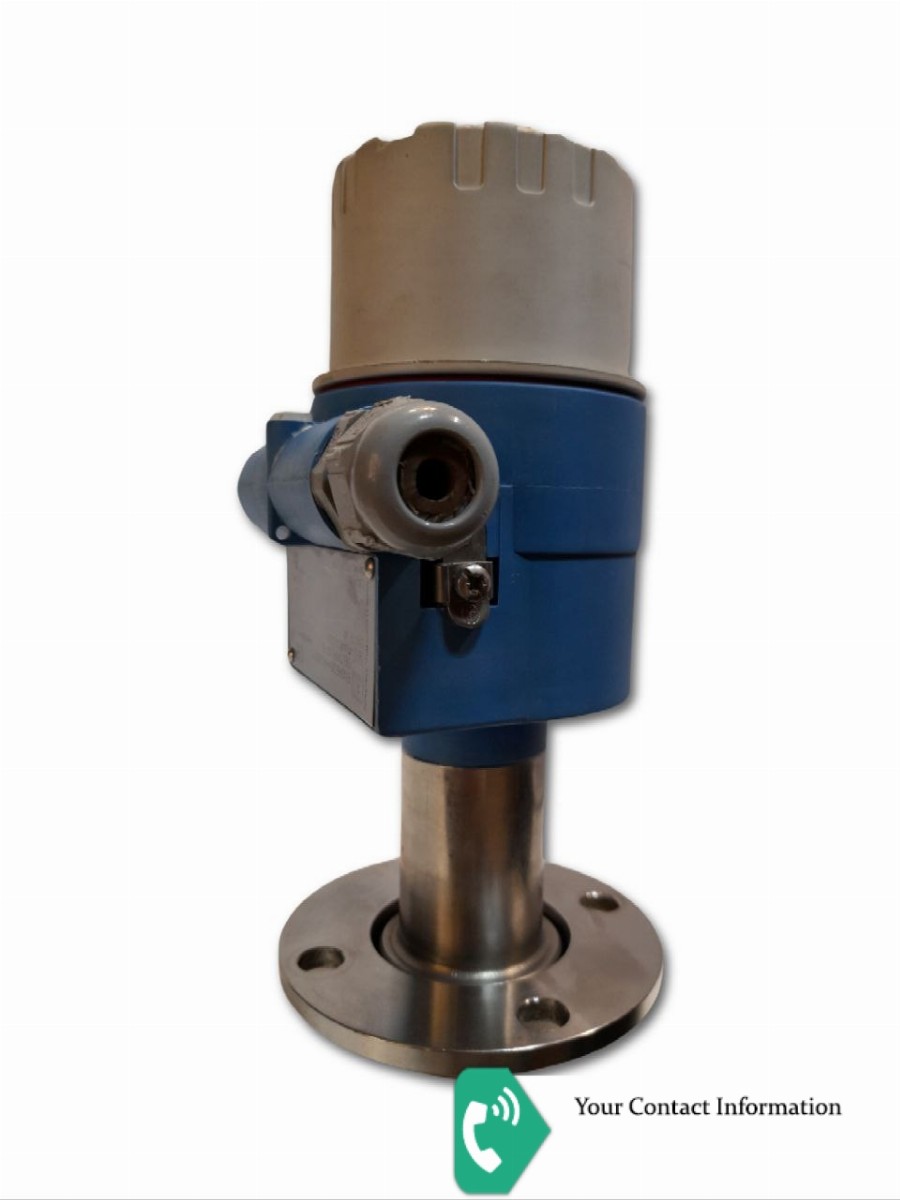

Deltapilot S DB50L
DB50L-AB44BD33CD10
Approval: A = Non-hazardous area
Probe: B = Compact version + EN10204-3.1 material (316L wetted parts)
Process Connection: 44 = DRD 65mm PN25, 316L, EHEDG 3A
Measuring Range: BD = 0...4000mbar/40mH2O/1600inH2O
Linearity; Fill fluid: 3 = < 0.1%; FDA compliant
Measuring Sensor Seal: 3 = Sensor welded
Electronics; Output: C = FEB17; 2-wire PFM
Housing; Cable Entry: D1 = Housing Polyester gland Pg16 IP66
Additional Option: 0 = Basic version
