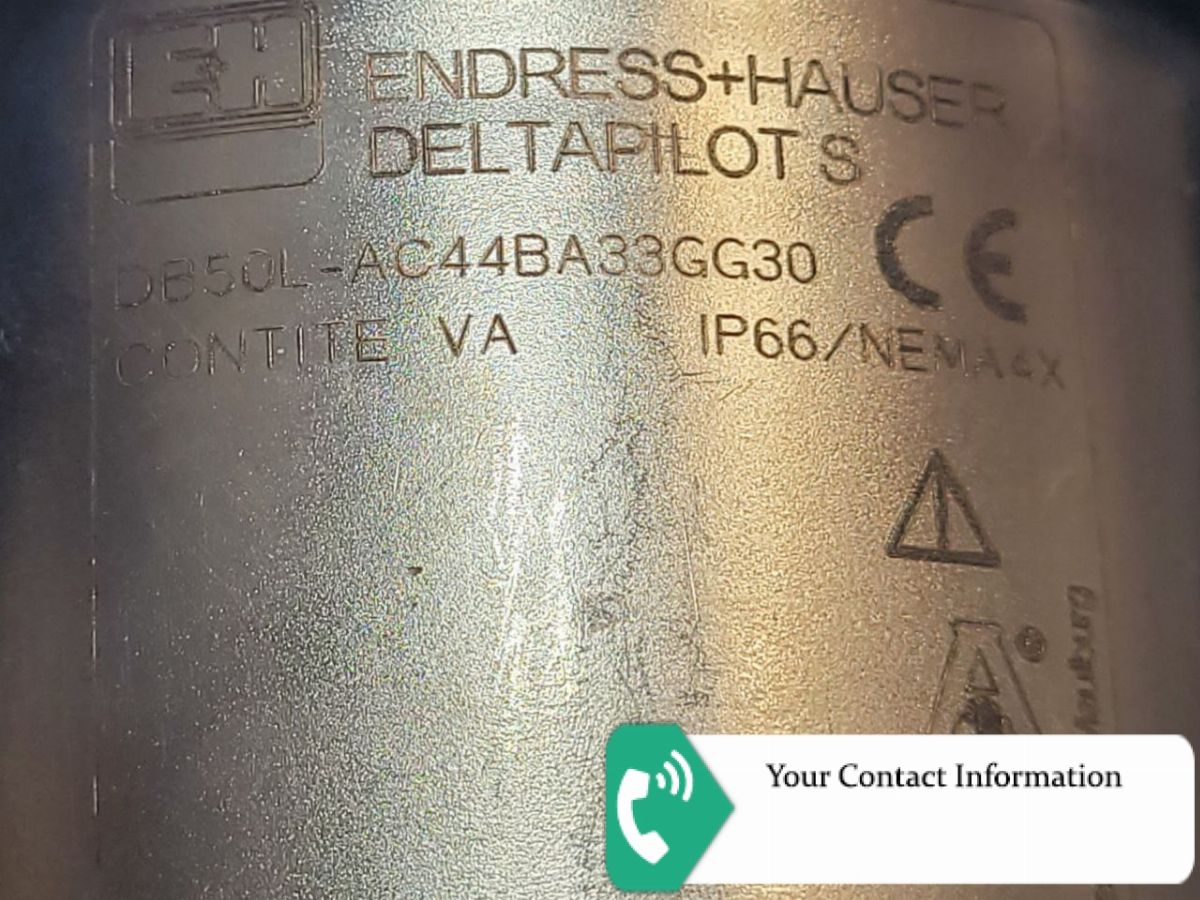

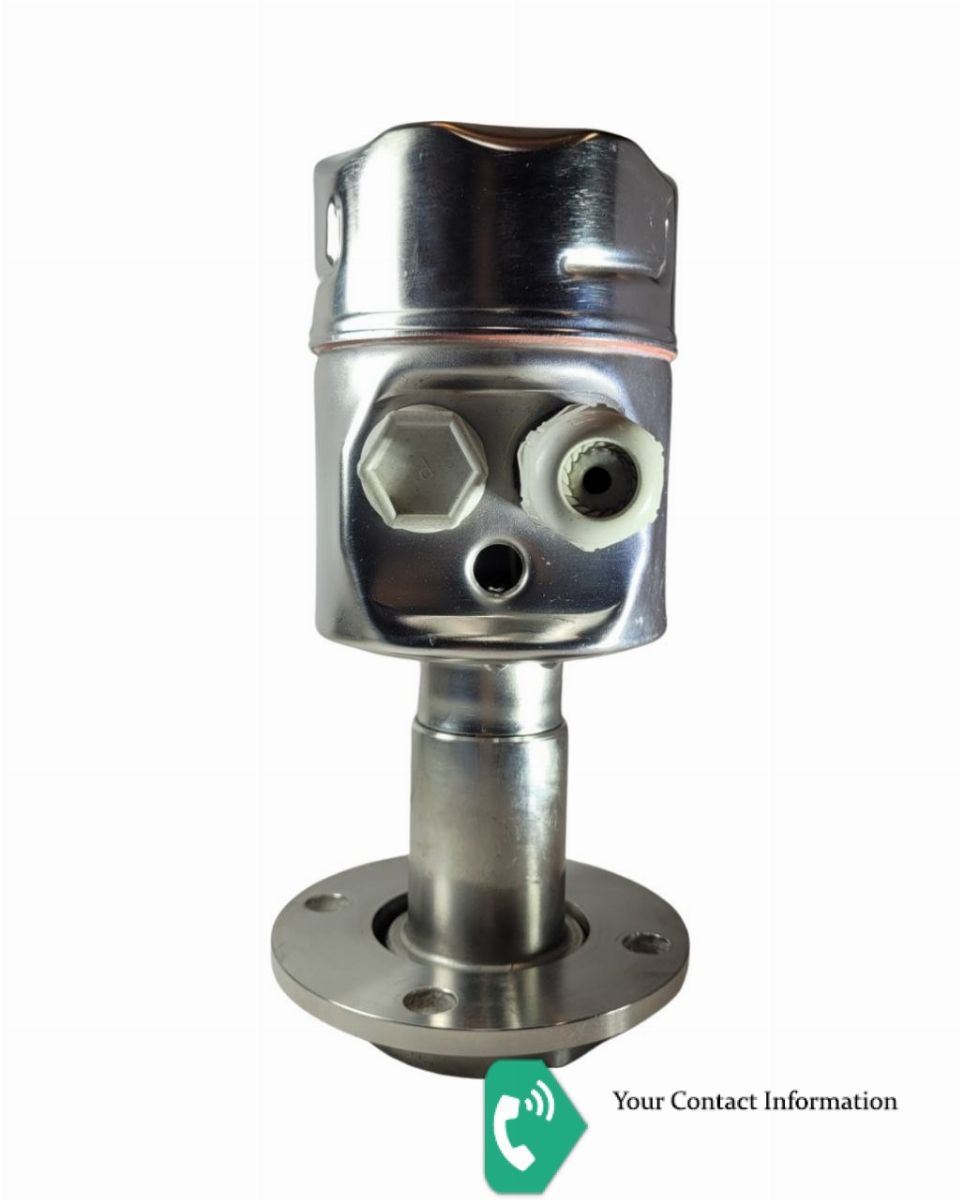

Deltapilot S DB50L
DB50L-AC44BA33GG30
Approval: A = Non-hazardous area
Probe: C = Compact version

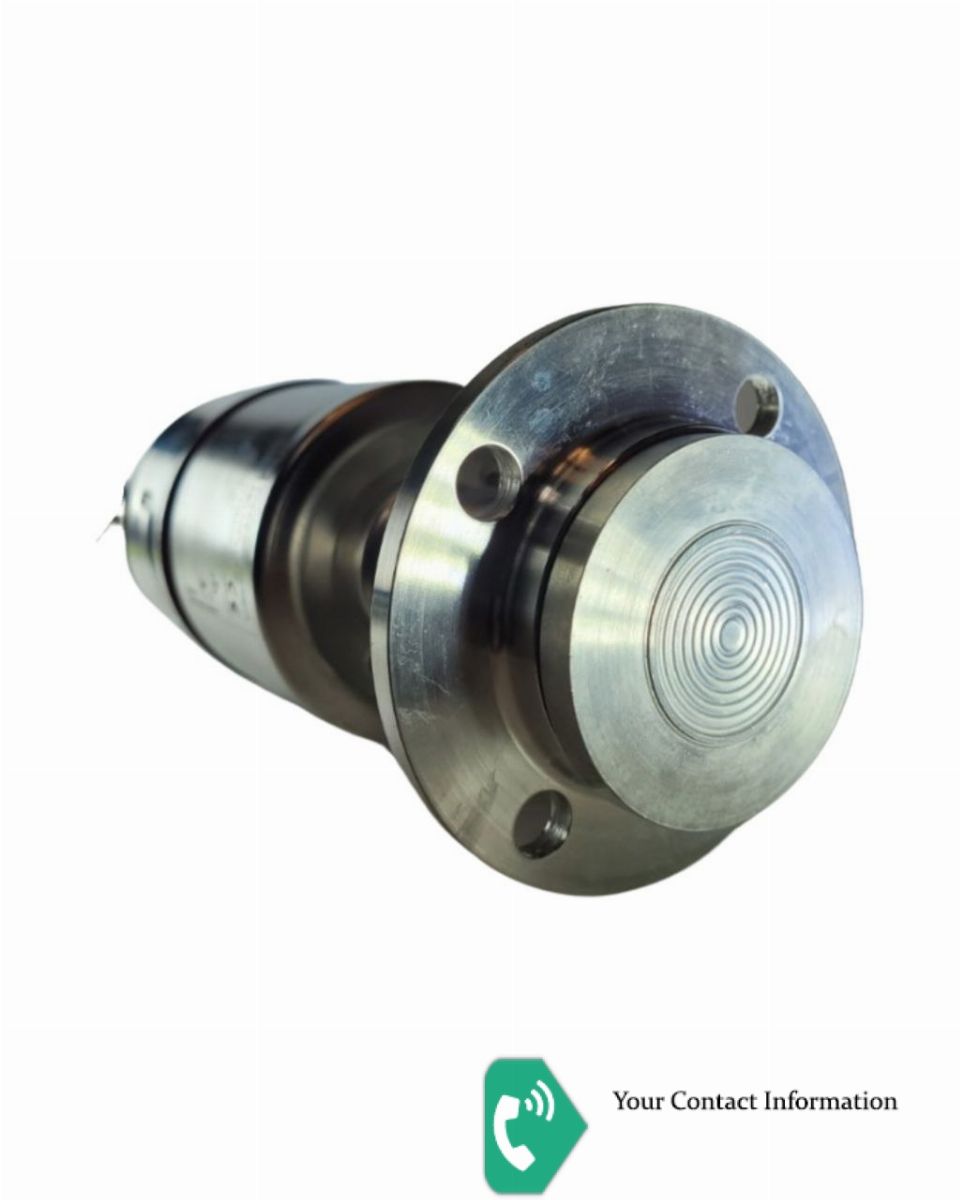

Process Connection: 44 = DRD 65mm PN25, 316L, EHEDG 3A
Measuring Range: BA = 0...100mbar/1mH2O/40inH2O
Linearity; Fill fluid: 3 = < 0.1%; FDA compliant
Measuring Sensor Seal: 3 = Sensor welded
Electronics; Output: G = FEB22; 4-20mA HART + display
Housing; Cable Entry: G3 = 316L IP66; gland M20
Additional Option: 0 = Basic version
