Deltapilot S DB50L

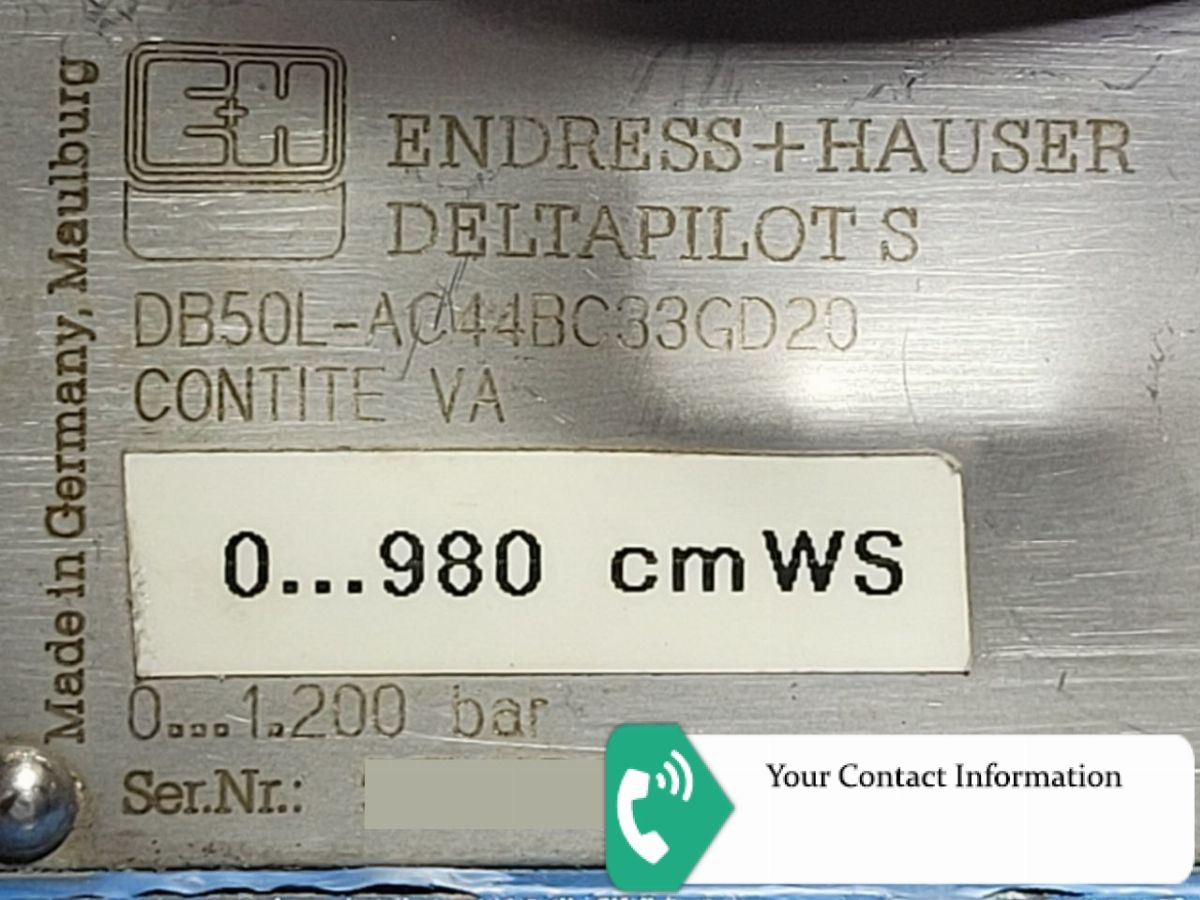

DB50L-AC44BC33GD20
Approval: A = Non-hazardous area
Probe: C = Compact version

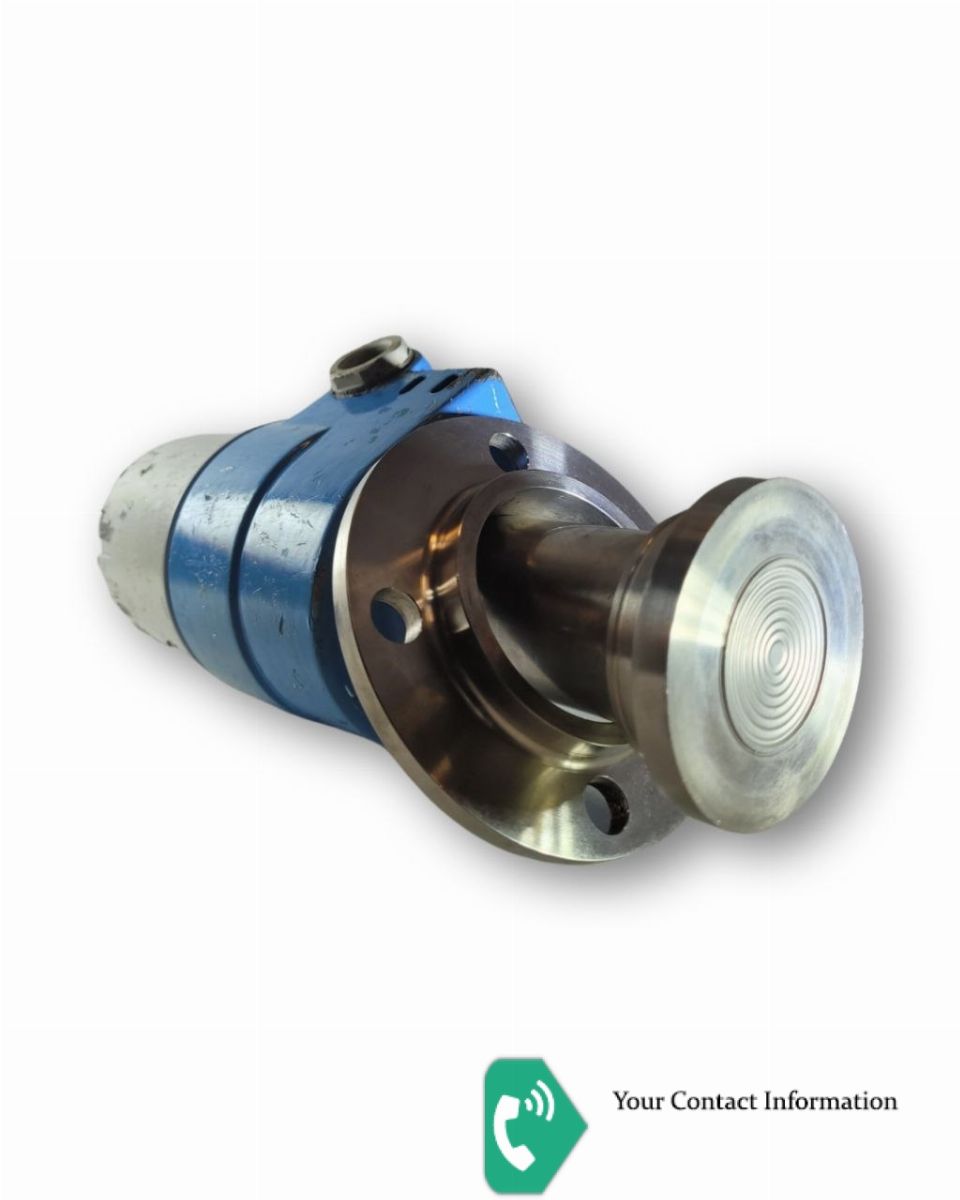

Process Connection: 44 = DRD 65mm PN25, 316L, EHEDG 3A
Measuring Range: BC = 0...1200mbar/12mH2O/480inH2O
Linearity; Fill fluid: 3 = < 0.1%; FDA compliant
Measuring Sensor Seal: 3 = Sensor welded
Electronics; Output: G = FEB22; 4-20mA HART + display
Housing; Cable Entry: D2 = Housing Alu gland Pg16 IP66
Additional Option: 0 = Basic version
