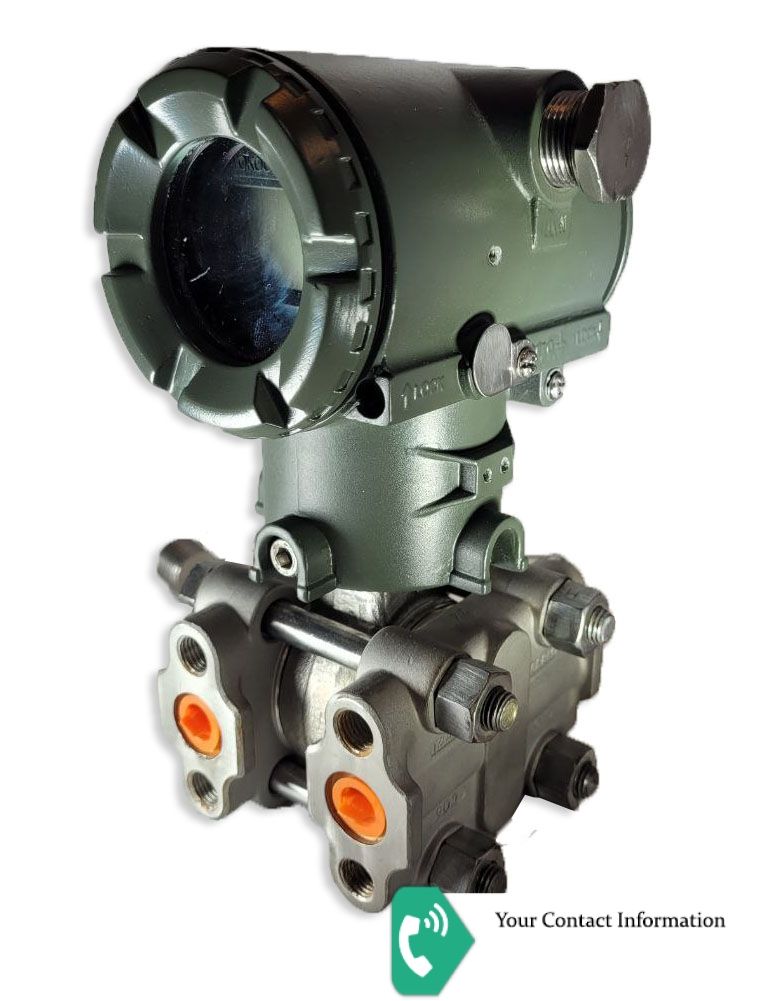

Yokogawa
EJA110A-EMS5B-29ND/D4
Model: EJA110A
Output Signal: E = 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00EN)
Measurement span (capsule): M = 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}
Wetted parts material: S = Body = SCS14A, Capsule = SUS316L, Vent plug = SUS316
Process connections: 5 = without process connector (1/4 NPT female on the cover flanges)
Bolts and nuts material: B = SUS630 16 MPa {160 kgf/cm2}
Installation: 2 = Vertical impulse piping type, right side high pressure, process connector upside
Electrical connection: 9 = M20 female, two electrical connections and a blind plug
Integral indicator: N = None
Mounting bracket: D = SUS304 or SCS13A 2-inch pipe mounting (L type)
Calibration units: M calibration (kgf/cm2 unit) (See Table for Span and Range Limits) = D4
