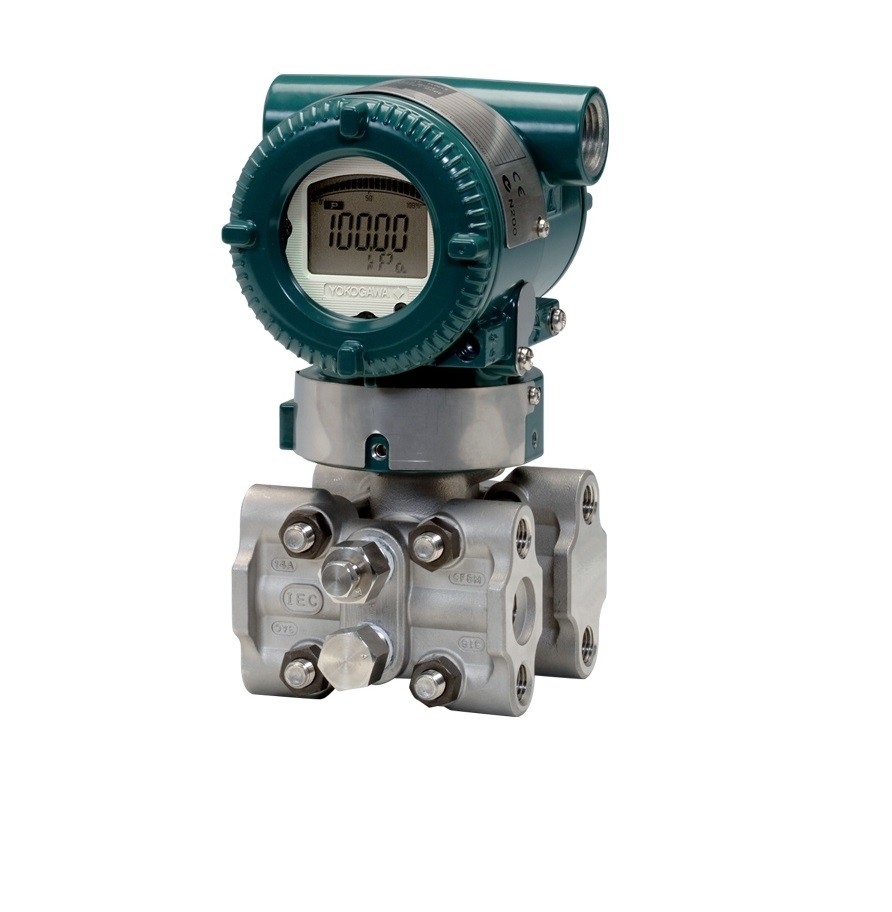

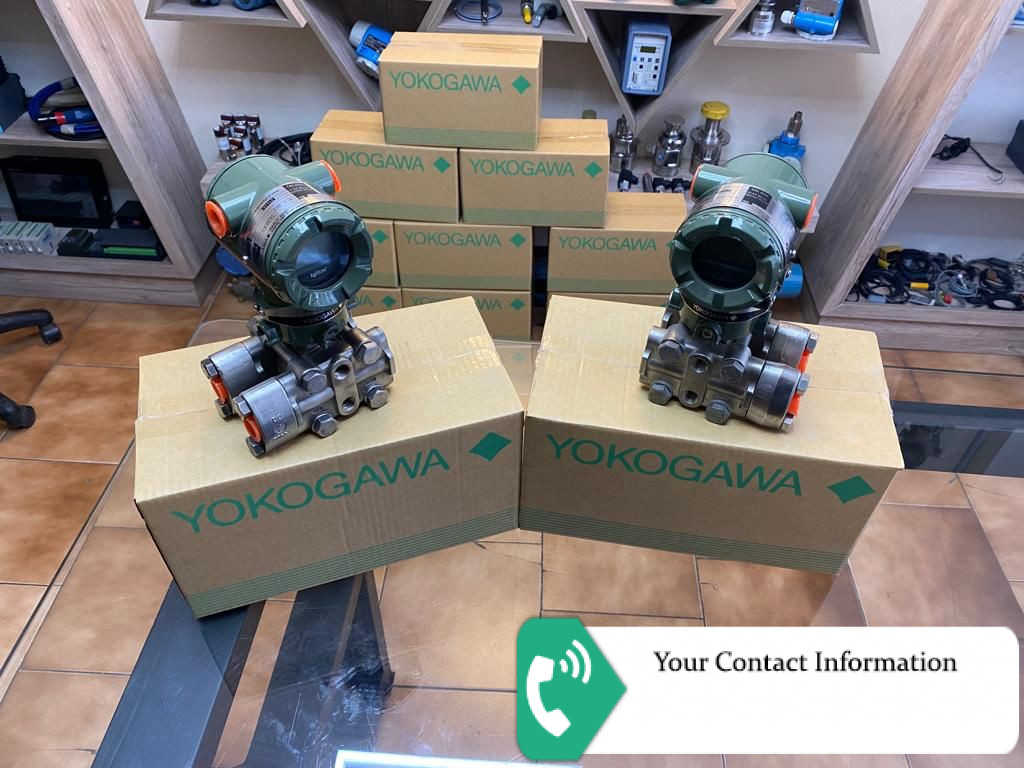

EJX110A =Differential pressure transmitter
E=Output signal :4 to 20 mA DC with digital communication (HART 5 protocol)
M=Measurement span : 0.5 to 100 kPa (2 to 400 inH2O)
S=Wetted parts material :
Cover flange and process connector : ASTM CF-8M
Capsule: Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)
Capsule gasket:Teflon-coated 316L SST
Vent/Drain plug : 316 SST
5=Process connections: without process connector (1/4 NPT female on the cover flanges)
G=Bolts and nuts material : 316L SST
9=Installation : Horizontal piping and left side high pressure
1=Amplifier housing : Cast aluminum alloy
9=Electrical connection : M20 female, two electrical connections and a blind plug
D=Integral indicator : Digital indicator
N=Mounting bracket : None
KS2=CENELEC ATEX :CENELEC ATEX (KEMA) Intrinsically safe Approval II 1G EEx ia IIC T4
D4= Calibration units : M calibration (kgf/cm2 unit)
N4=Wired tag plate = 316 SST tag plate wired onto transmitter
