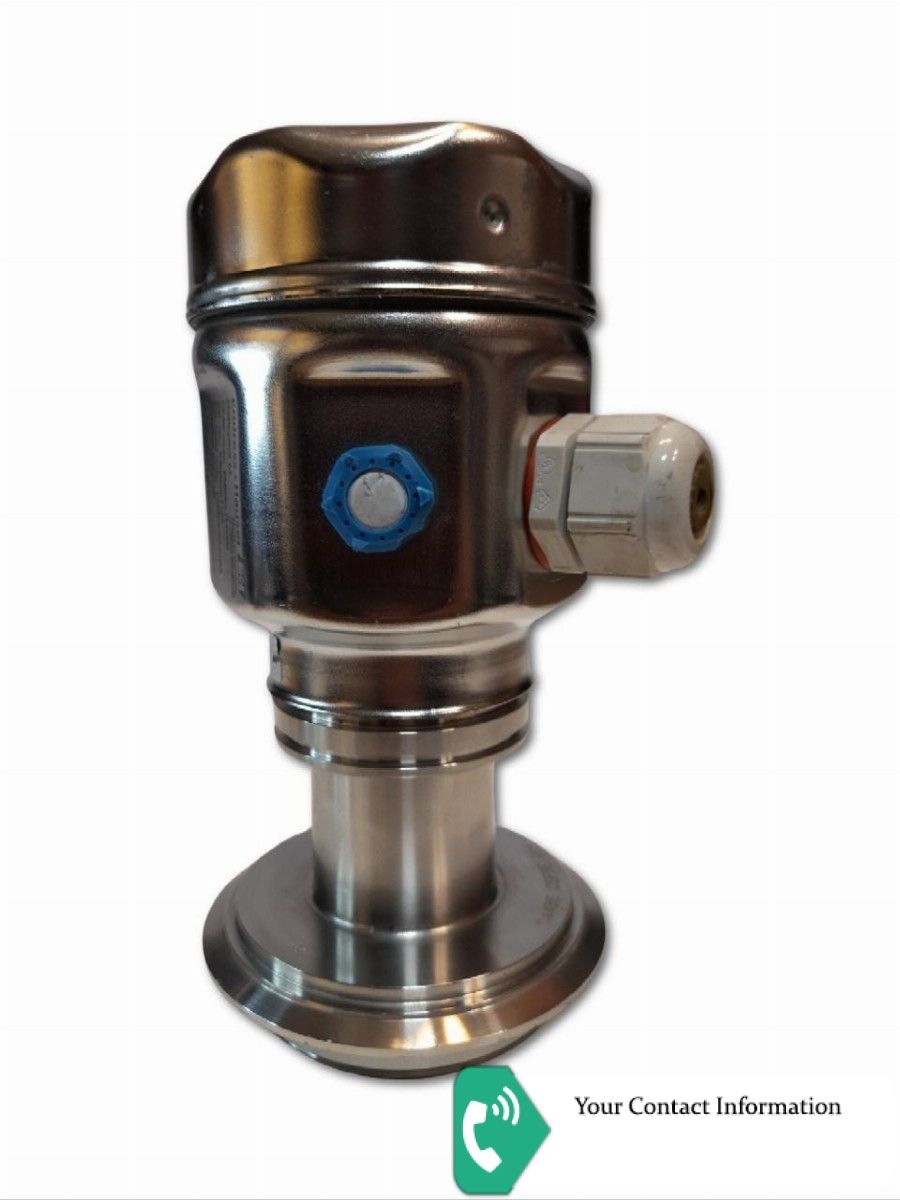

Deltapilot M FMB50

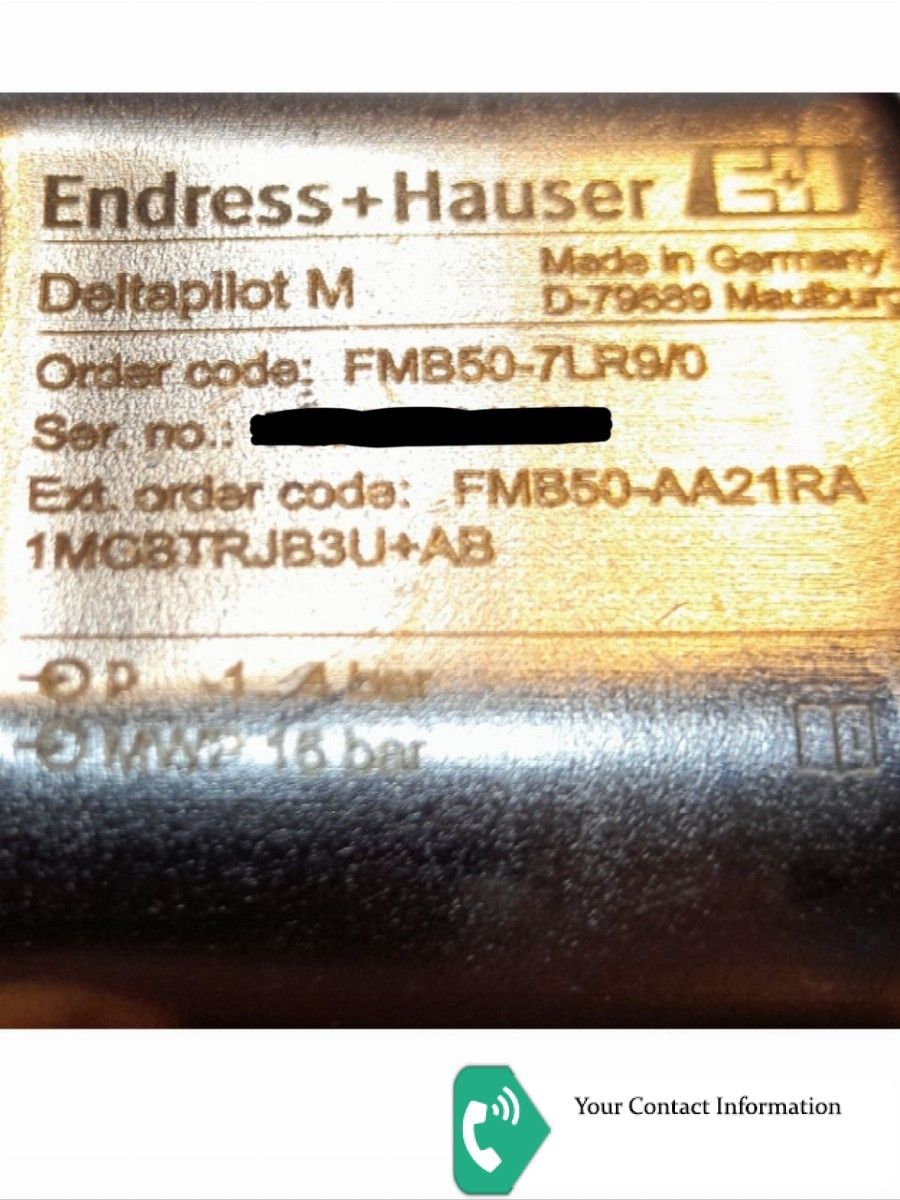

FMB50-AA21RA1MGBTRJB3U+AB
Approval: AA = Non-hazardous area
Output: 2 = 4-20mA HART
Display, Operation: 1 = LCD, push button on display/electronics
Housing: R = F15 stainless steel hygiene, glass window
Electrical Connection: A = Gland M20, IP66/68 NEMA4X/6P
Sensor Range: 1M = 4bar/400kPa/60psi gauge, 40mH2O/133ftH2O/1600inH2O overload: 24bar/2.4MPa/350psi
Reference Accuracy: G = Standard
Calibration; Unit: B = Sensor range; mbar/bar
Process Connection: TRJ = Varivent N tube DN40-162 PN40, 316L, EHEDG, 3A
Membrane Material: B = AlloyC
Fill Fluid: 3 = Synthetic oil, FDA
Seal: U = None, cell welded
Additional Operation Language: AB = German
