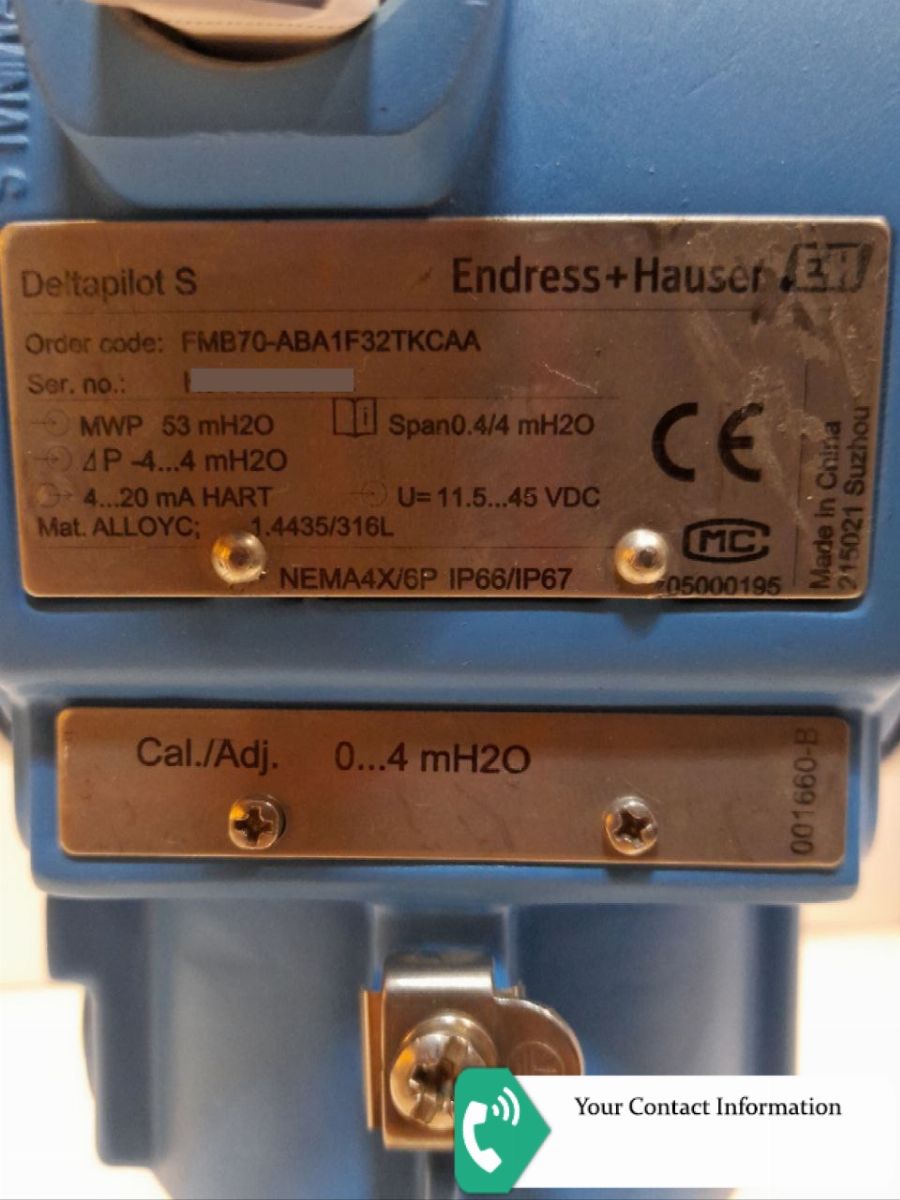

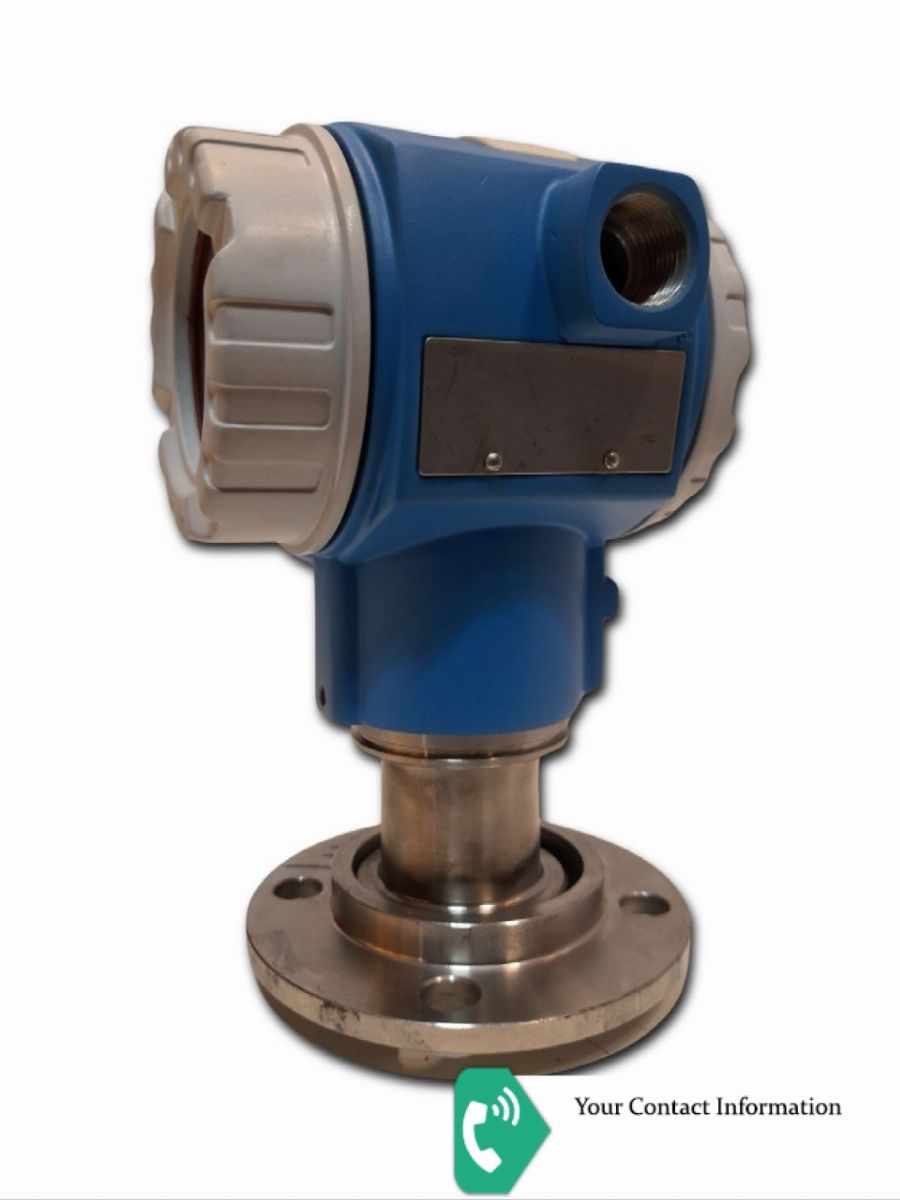

Deltapilot S FMB70
FMB70-ABA1F32TKCAA
Approval: A = Non-hazardous area
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover
Sensor Range; Sensor Overload Limit: 1F = 400mbar/40kPa/6psi/4mH2O/160inH2O 8bar/800kPa/120psi/80mH2O/3200inH2O
Calibration; Unit: 3 = Sensor range; mmH2O/mH2O
Membrane Material; Seal: 2 = AlloyC276; welded
Process Connection: TK = DRD DN50 65mm PN25, 316L
Fill Fluid: C = Synthetic oil (FDA)
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
