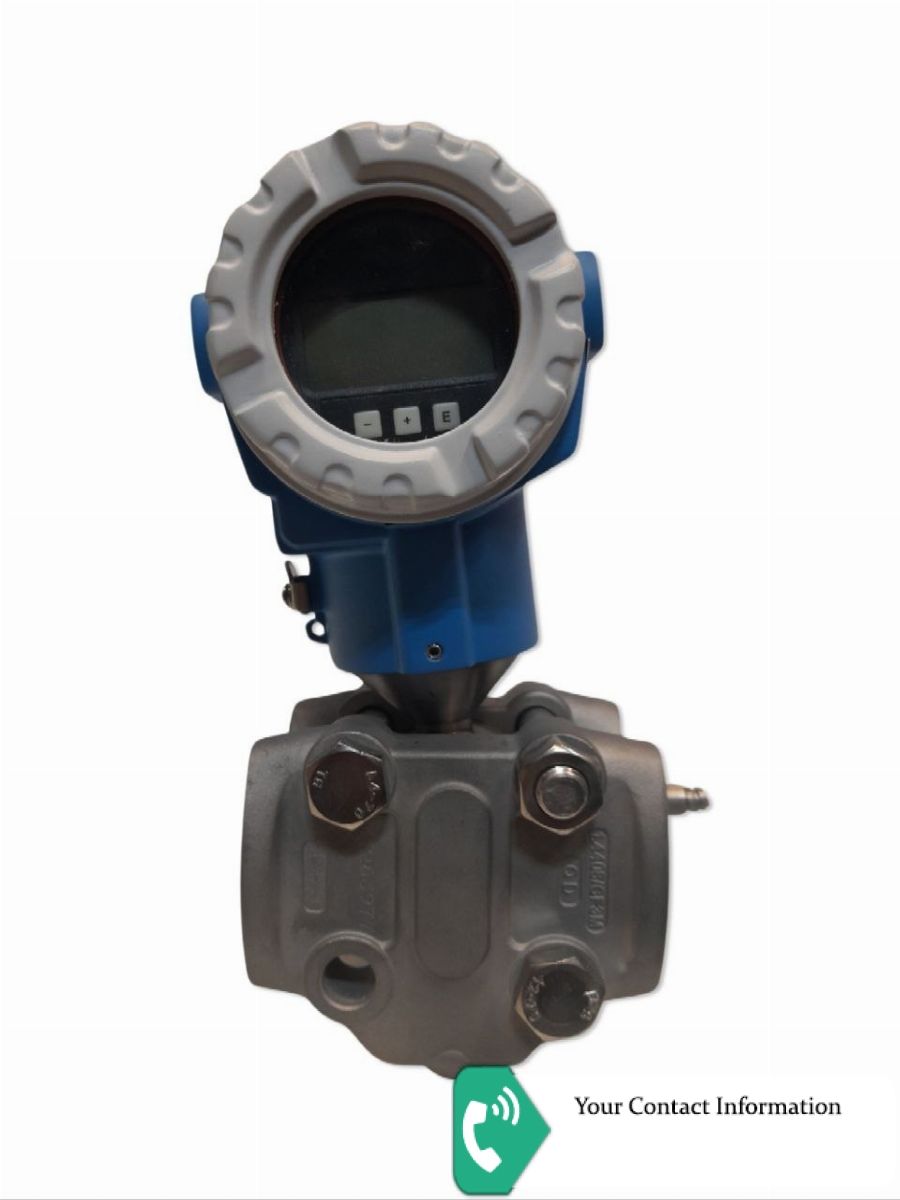

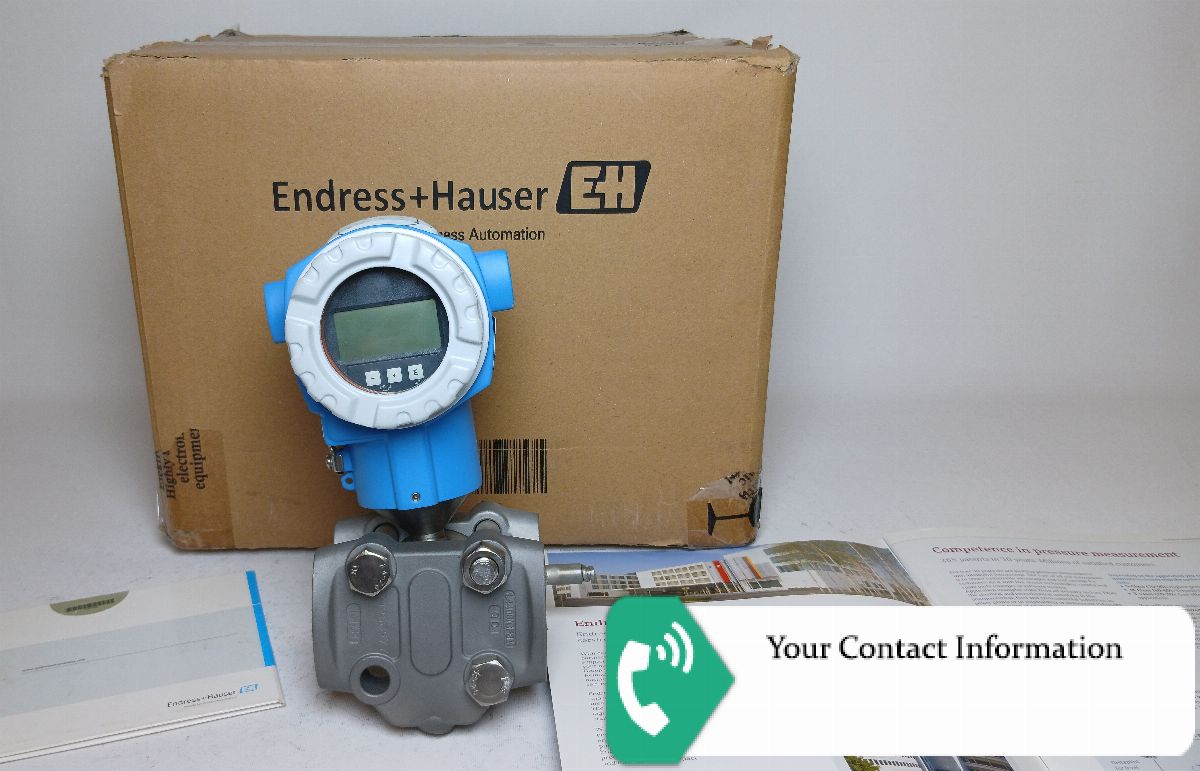

ترانسمیتر فشار مدل FMD77-AAC7F4H1NRAA+Z1 برند Endress+Hauser
ترانسمیتر فشار مدل FMD77-AAC7F4H1NRAA+Z1 برند Endress+Hauser
ترانسمیتر فشار مدل FMD77-AAC7F4H1NRAA+Z1 برند Endress+Hauser

ترانسمیتر فشار مدل FMD77-AAC7F4H1NRAA+Z1 برند Endress+Hauser


  • پارت نامبر: FMD77-AAC7F4H1NRAA+Z1
  • دسته: ترانسمیتر فشار
  • برند: Endress+Hauser
  • کشور: Germany کشور Germany
  • تاریخ ثبت: 2 هفته پیش (دوشنبه, 23 بهمن 1402)
  • زمان تحویل: موجود
  • وضعیت: نو
  • لینک دیتاشیت:
  • ارسال به:

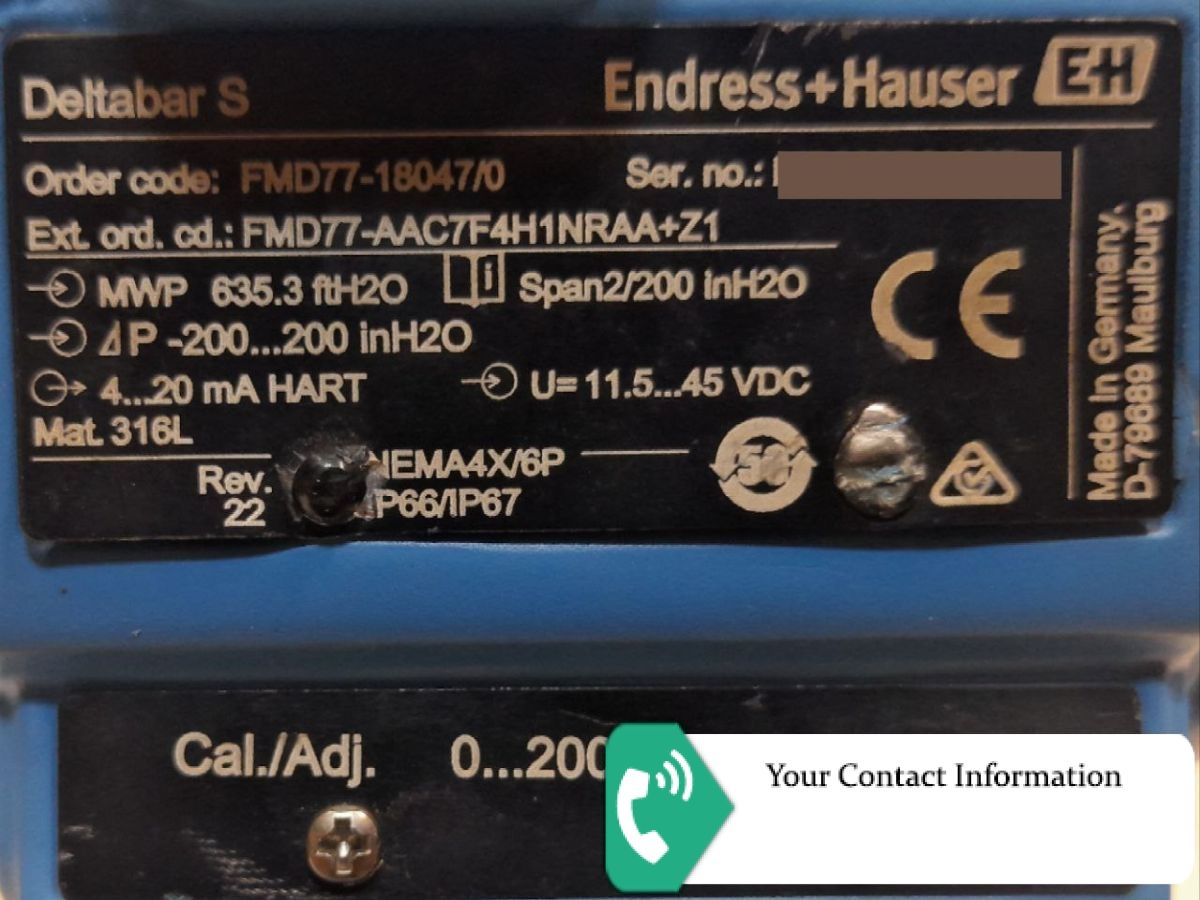

Deltabar S FMD77 FMD77-AAC7F4H1NRAA+Z1 Approval: A = Non-hazardous area Output; Operating: A = 4-20mA HART; extern + LCD Housing; Cover Sealing; Cable Entry: C = T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover Nominal Range; Cell Material; PN: 7F = 500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi Calibration; Unit: 4 = Nominal range; inH2O/ftH2O Membrane Material: H = 316L, high + low pressure side Process Connection; LP Side; Seal: 1 = LP diaphragm seal with capillary; welded Process Connection, HP/HP+LP: N = NPS 2" Cl.150 RF, 316/316L flange ASME B16.5 Fill Fluid: R = ..... ft capillary, silicone oil, LP-side Additional Option 1: A = Not selected Additional Option 2: A = Not selected Marking: Z1 = Tagging (TAG), see additional spec.
