Differential pressure measurement

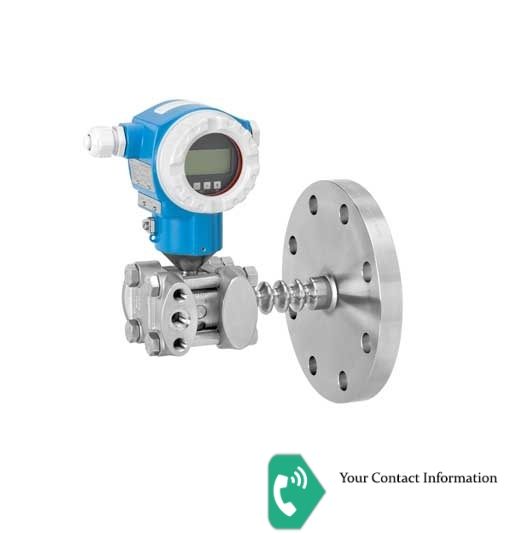

Deltabar S FMD77
A=Approval: Non-hazardous area
C=Output; Operating: 4-20mA HART; inside
C=Housing; Cover Sealing; Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
7D=Nominal Range; Cell Material; PN: 100mbar/10kPa/1.5psi; 316L; 160bar/ 16MPa/2400psi
1=Calibration; Unit: Nominal range; mbar/bar
1=Membrane Material: 316L, high pressure side
D=Process Connection; LP Side; Seal: NPT1/4-18 IEC61518, 316L; FKM Viton, mounting UNF7/16-20
P=Process Connection, HP/HP+LP: NPS 3" Cl.150 RF, 316/316L flange ASME B16.5
A=Fill Fluid: Silicone oil
B=Additional Option 1: 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
A=Additional Option 2: Not selected
