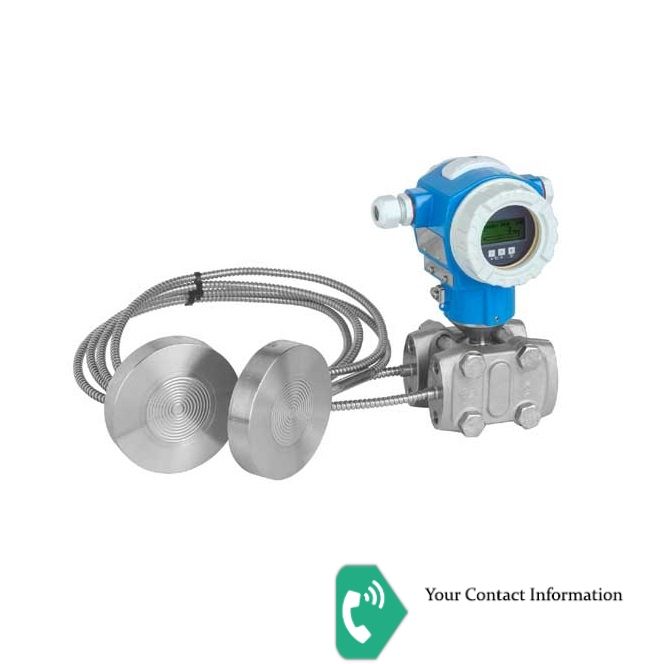

Deltabar S FMD78
Differential pressure measurement
1=Approval:ATEX II 1/2G Ex ia IIC T6
C=Output; Operating: 4-20mA HART; inside
J=Housing; Cover Sealing; Cable Entry: T15 Alu IP66/67 NEMA6P; EPDM; M20 gland, T15 = top cover (Ex d > M20 thread)
7F= Nominal Range; Cell Material; PN: 500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi
B=Calibration; Unit: **Customised; see additional spec.
1=Membrane Material: 316L
VH=Process Connection: Pancake 3" 150-2500lbs, 316L
1=Fill Fluid: ..... m capillary, silicone oil
B=Additional Option 1: 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
U=Additional Option 2: Mounting bracket, wall/pipe, 316L, heavy duty design
