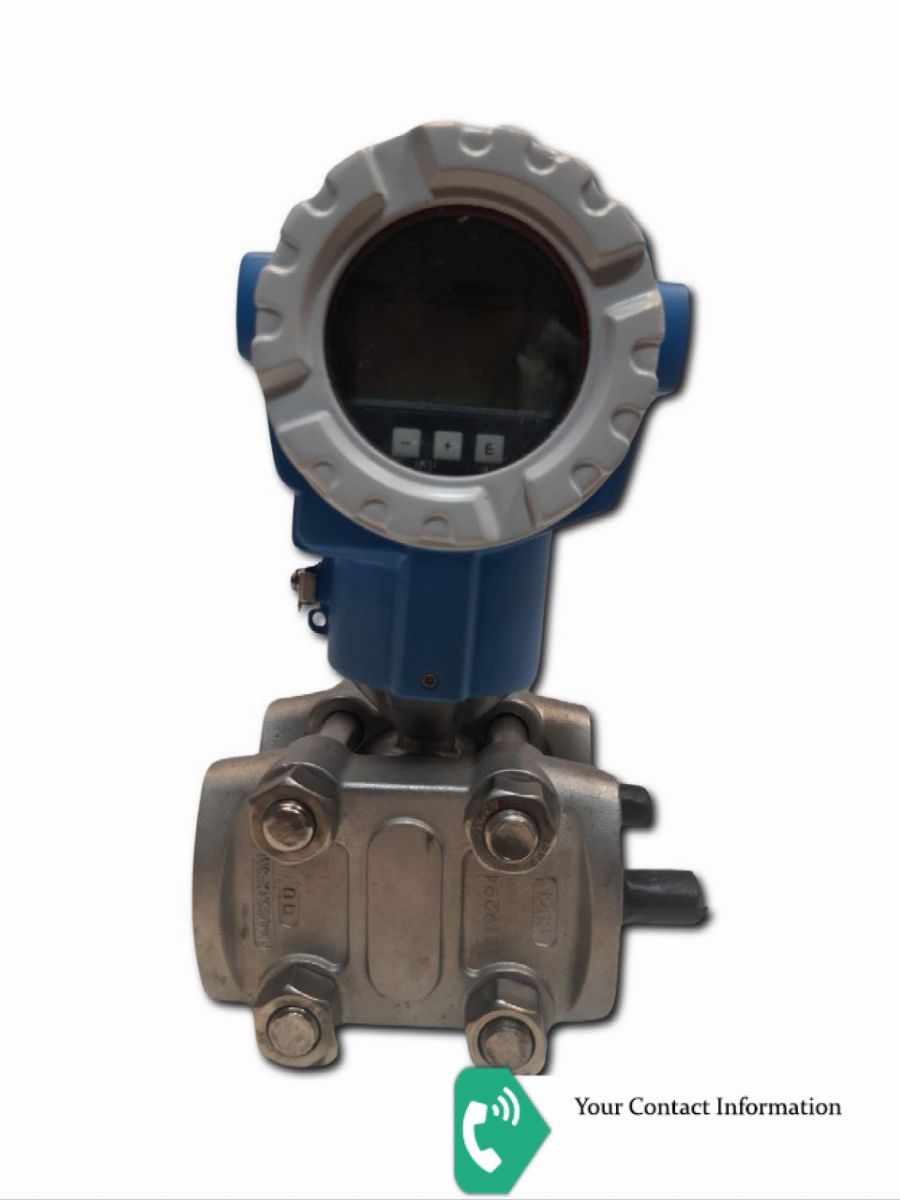

ترانسمیتر فشار مدل FMD78-ABA7FE2D4MAW+PDSBZ1 برند Endress+Hauser
ترانسمیتر فشار مدل FMD78-ABA7FE2D4MAW+PDSBZ1 برند Endress+Hauser
ترانسمیتر فشار مدل FMD78-ABA7FE2D4MAW+PDSBZ1 برند Endress+Hauser

ترانسمیتر فشار مدل FMD78-ABA7FE2D4MAW+PDSBZ1 برند Endress+Hauser


  • پارت نامبر: FMD78-ABA7FE2D4MAW+PDSBZ1
  • دسته: ترانسمیتر فشار
  • برند: Endress+Hauser
  • کشور: Germany کشور Germany
  • تاریخ ثبت: 9 ماه پیش (سه شنبه, 05 دی 1402)
  • زمان تحویل: 3 تا 4 هفته کاری
  • وضعیت: درحد نو
  • لینک دیتاشیت:
  • ارسال به:

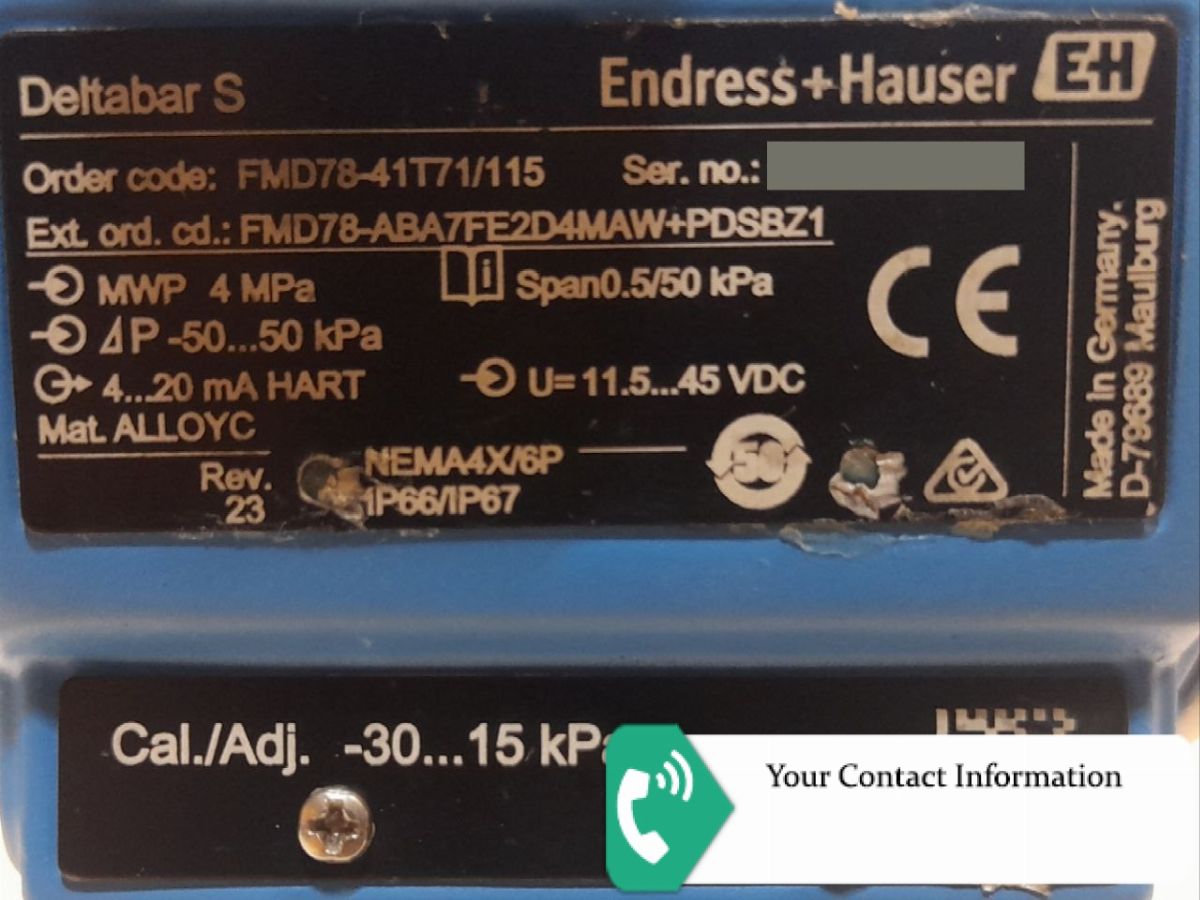

Deltabar S FMD78 FMD78-ABA7FE2D4MAW+PDSBZ1 Approval: A = Non-hazardous area Output; Operating: B = 4-20mA HART; inside + LCD Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland T14 = side cover (Ex d > M20 thread) Nominal Range; Cell Material; PN: 7F = 500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi Calibration; Unit: E = Customised pressure; see additional spec. Membrane Material: 2 = AlloyC276 Process Connection: D4 = DN80 PN10-40 B1, 316L, 50/100/200mm barrel, flange EN1092-1 see additional spec. Fill Fluid: M = ..... m capillary, silicone oil, LP-side asymmetric Additional Option 1: A = Not selected Additional Option 2: W = ..... m capillary, HP-side asymmetric Accessory Enclosed: PD = Mounting bracket, wall/pipe, 316L, standard design Flexible Capillary Armoring: SB = PVC>316L Marking: Z1 = Tagging (TAG), see additional spec.
