Differential pressure

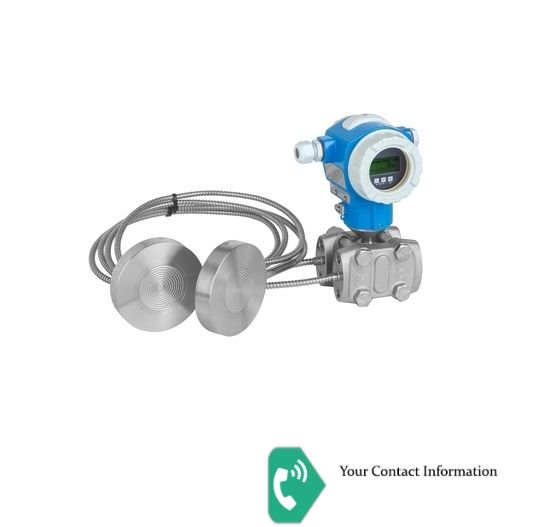

Deltabar FMD78
Approval: A= Non-hazardous area
Output; Operating: B= 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A= T14 Alu IP66/67 NEMA6P; EPDM; M20 gland T14 = side cover (Ex d > M20 thread)
Nominal Range; Cell Material; PN: 7H= 3bar/300kPa/45psi; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit: B= **Customised; see additional spec.
Membrane Material: 1= 316L
Process Connection: B5= DN80 PN10-40 B1, 316L flange EN1092-1
Fill Fluid: 4= ..... m capillary, inert oil, oxygen service note application limits pressure/temp.
Additional Option 1: B= 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
Additional Option 2: U= Mounting bracket, wall/pipe, 316L, heavy duty design
