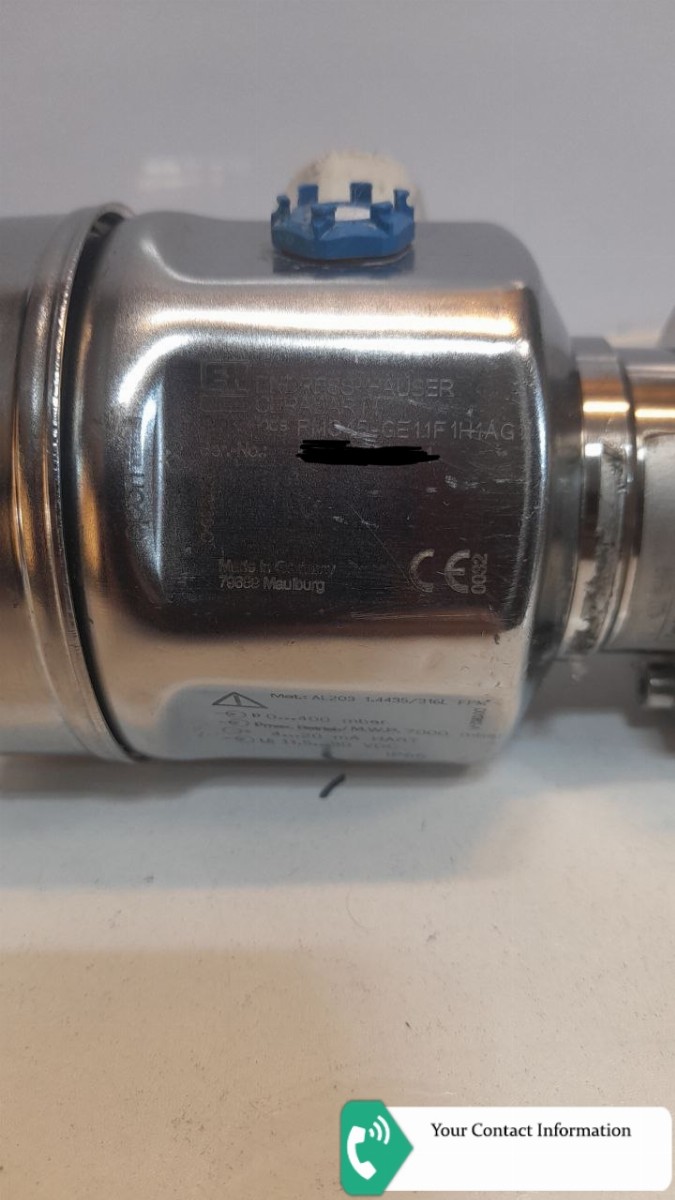

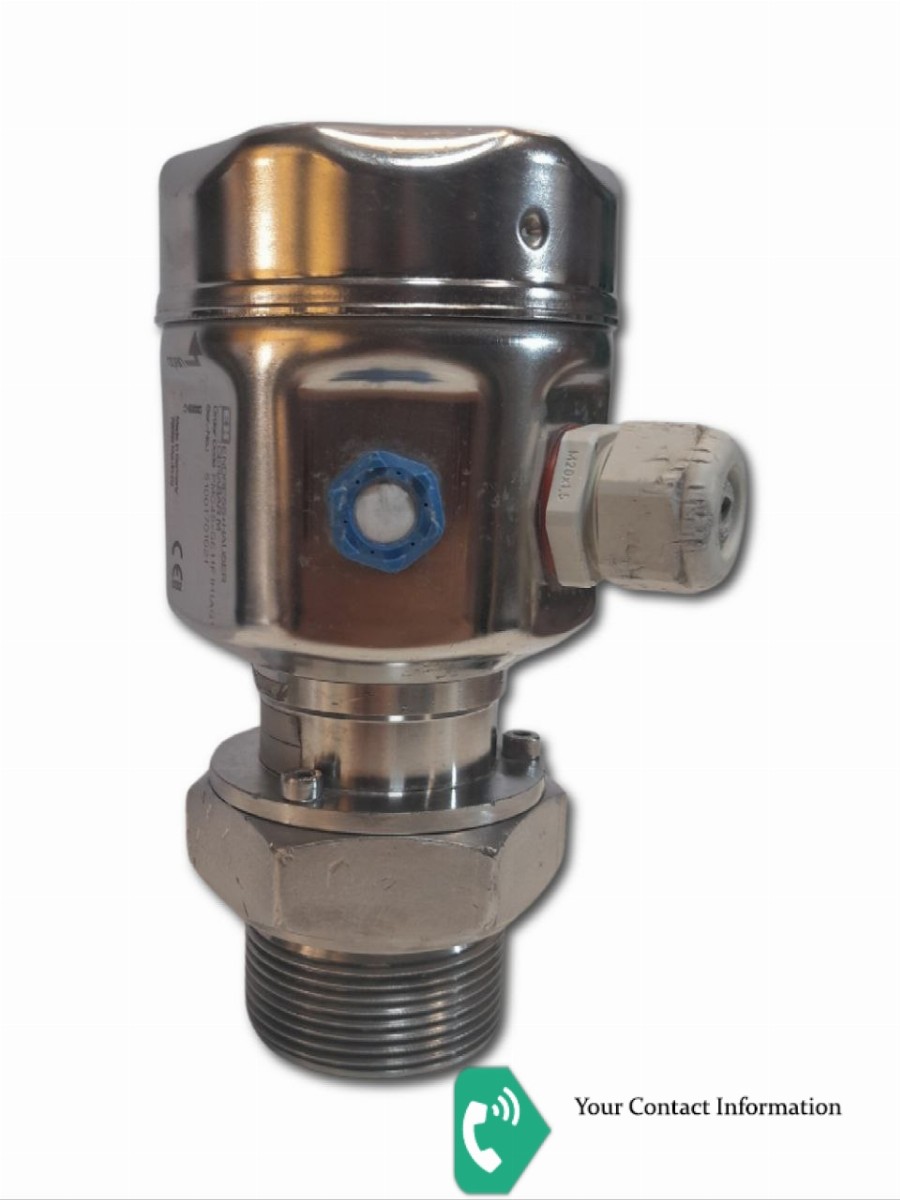

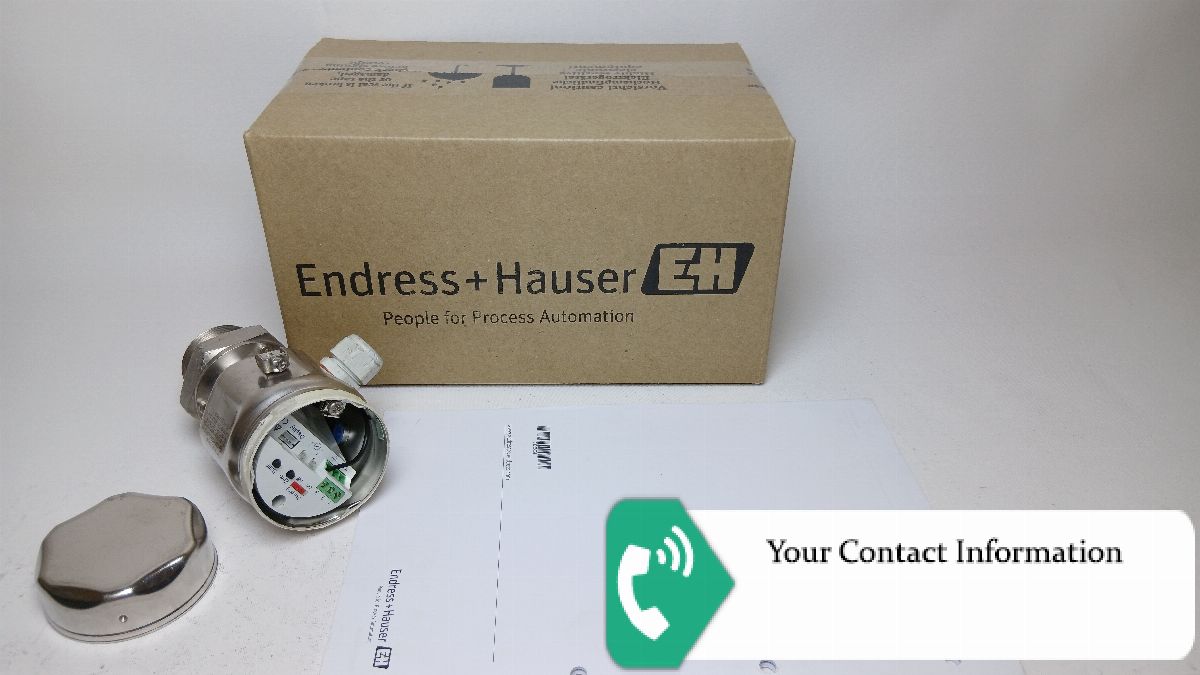

Cerabar M PMC45
PMC45-GE11F1H1AG
Approval: G = ATEX II 1/2G EEx ia IIC T6
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 1F = 0...400mbar/40kPa/6psi gauge; 8bar/800kPa/120psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: H = 4-20mA HART; w/o display
Additional Option: 1 = Basic version

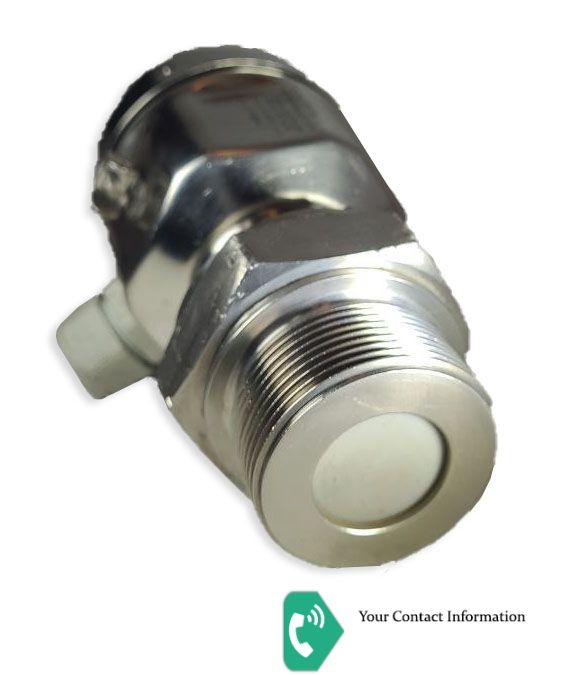

Process Connection: AG = Thread ISO228 G1-1/2, 316L
