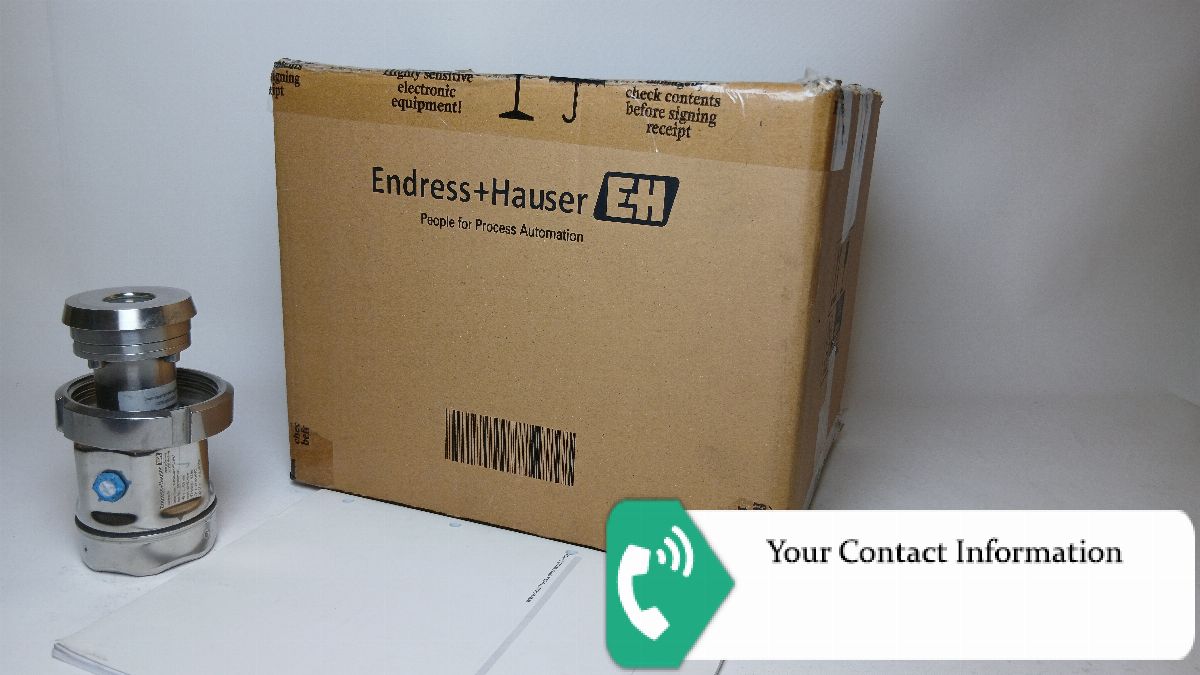

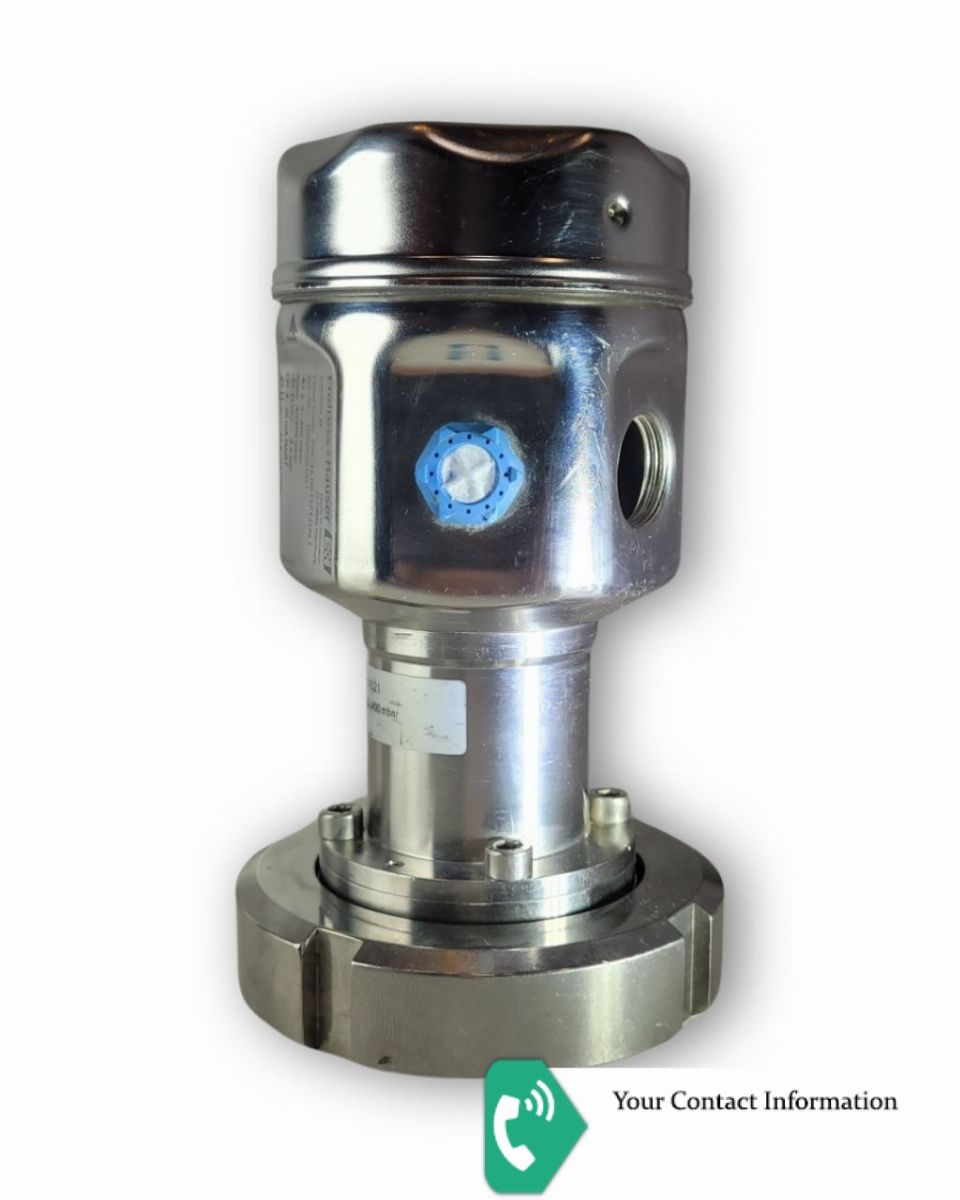

Cerabar M PMC45

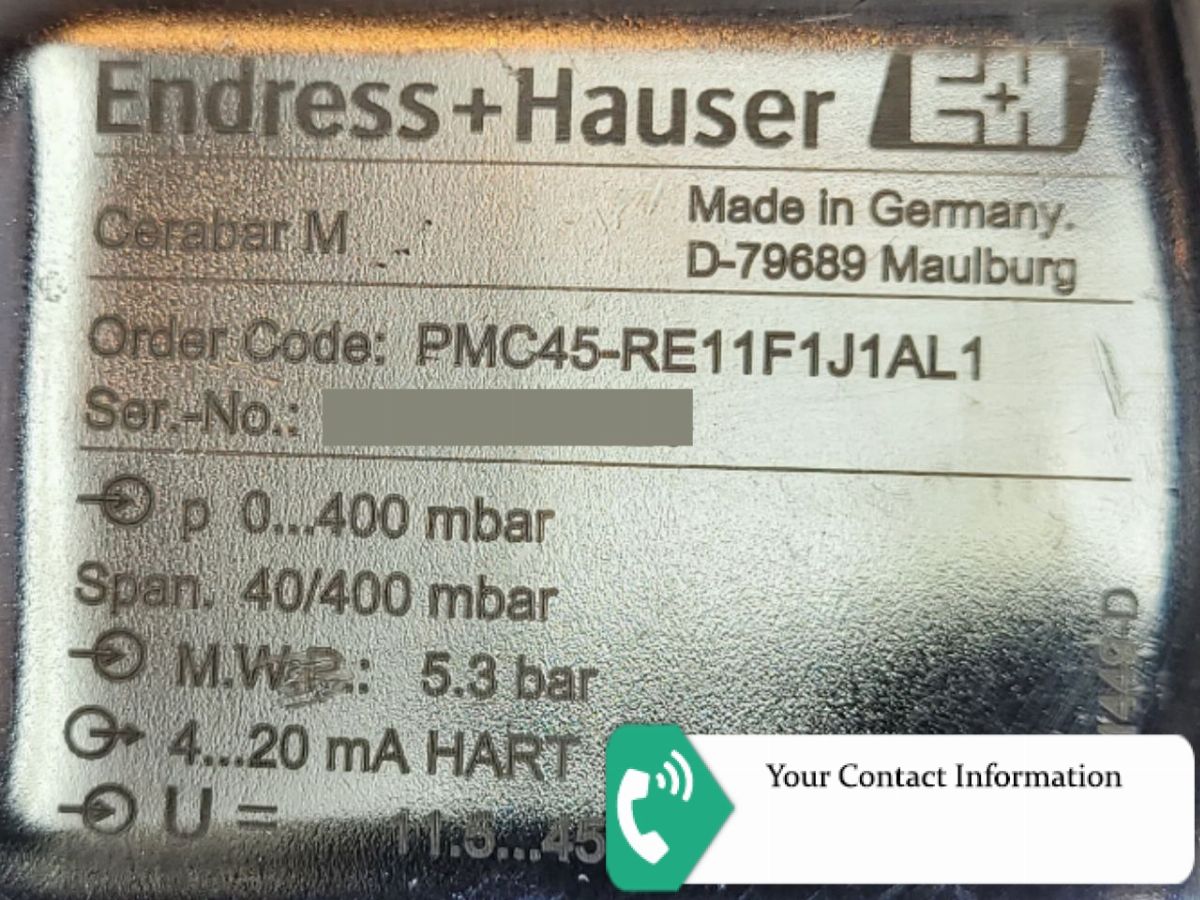

PMC45-RE11F1J1AL1
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 1F = 0...400mbar/40kPa/6psi gauge; 8bar/800kPa/120psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: J = 4-20mA HART; display 4-digit + bargraph
Additional Option: 1 = Basic version

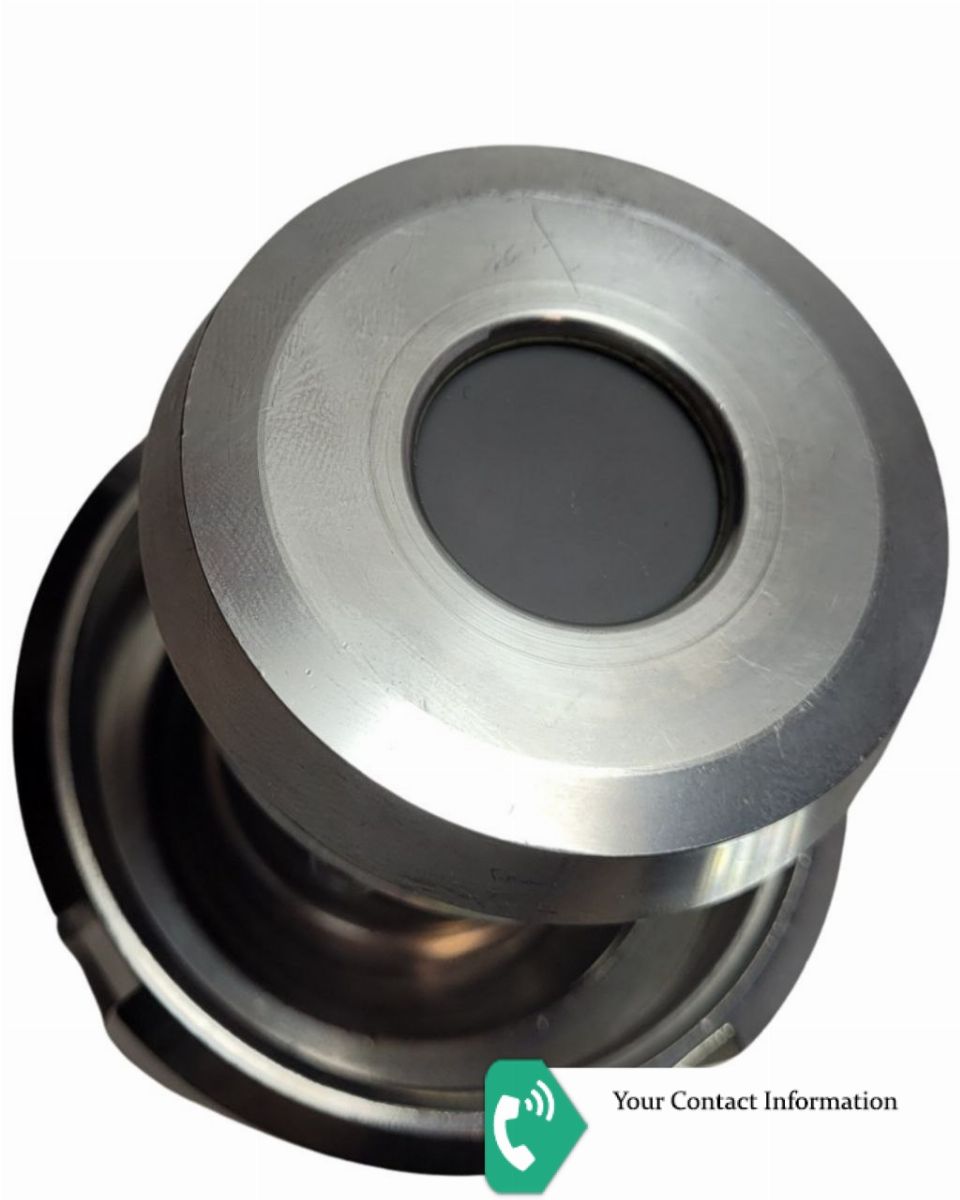

Process Connection: AL = DIN11851 DN50 PN25 slotted-nut, 316L, EHEDG, 3A with seal HNBR/EPDM
Sensor Seal: 1 = FKM Viton
