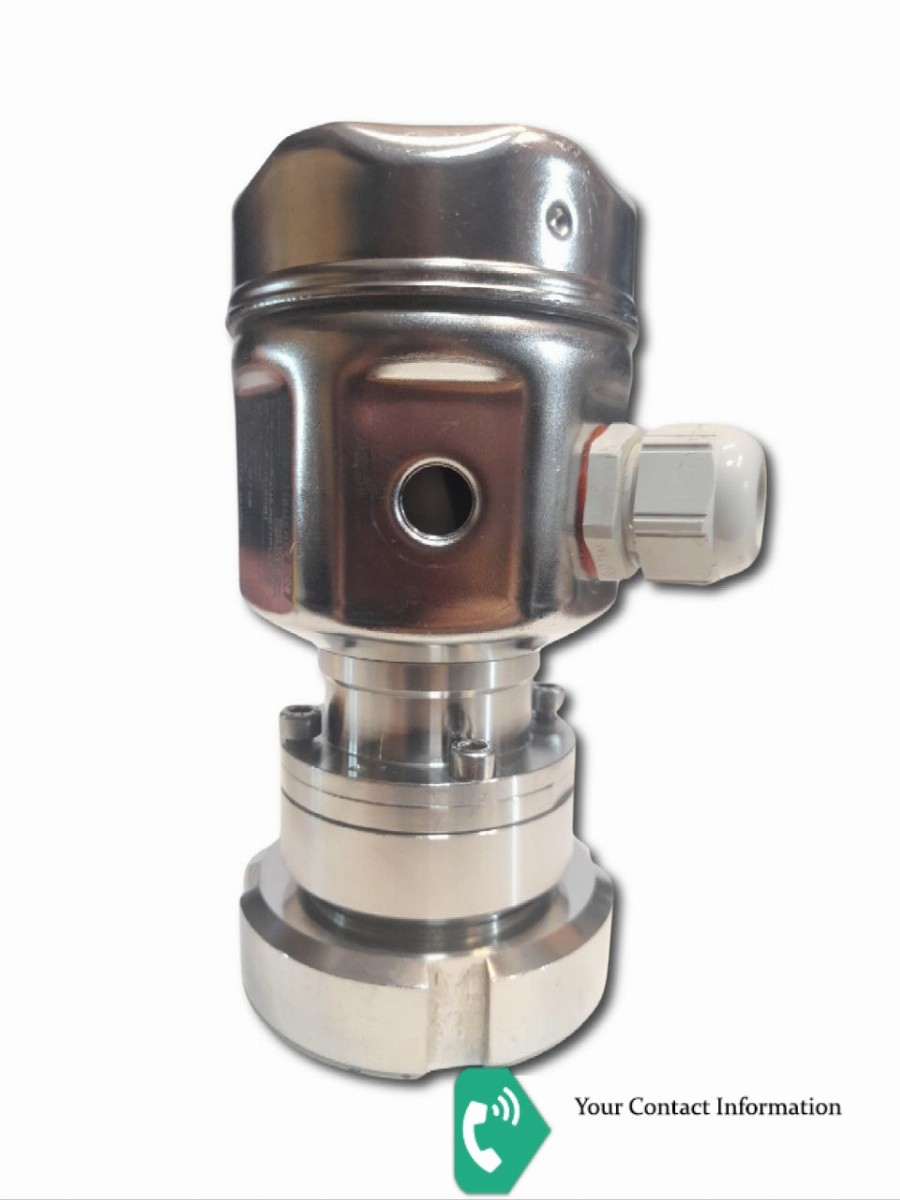

Cerabar M PMC45

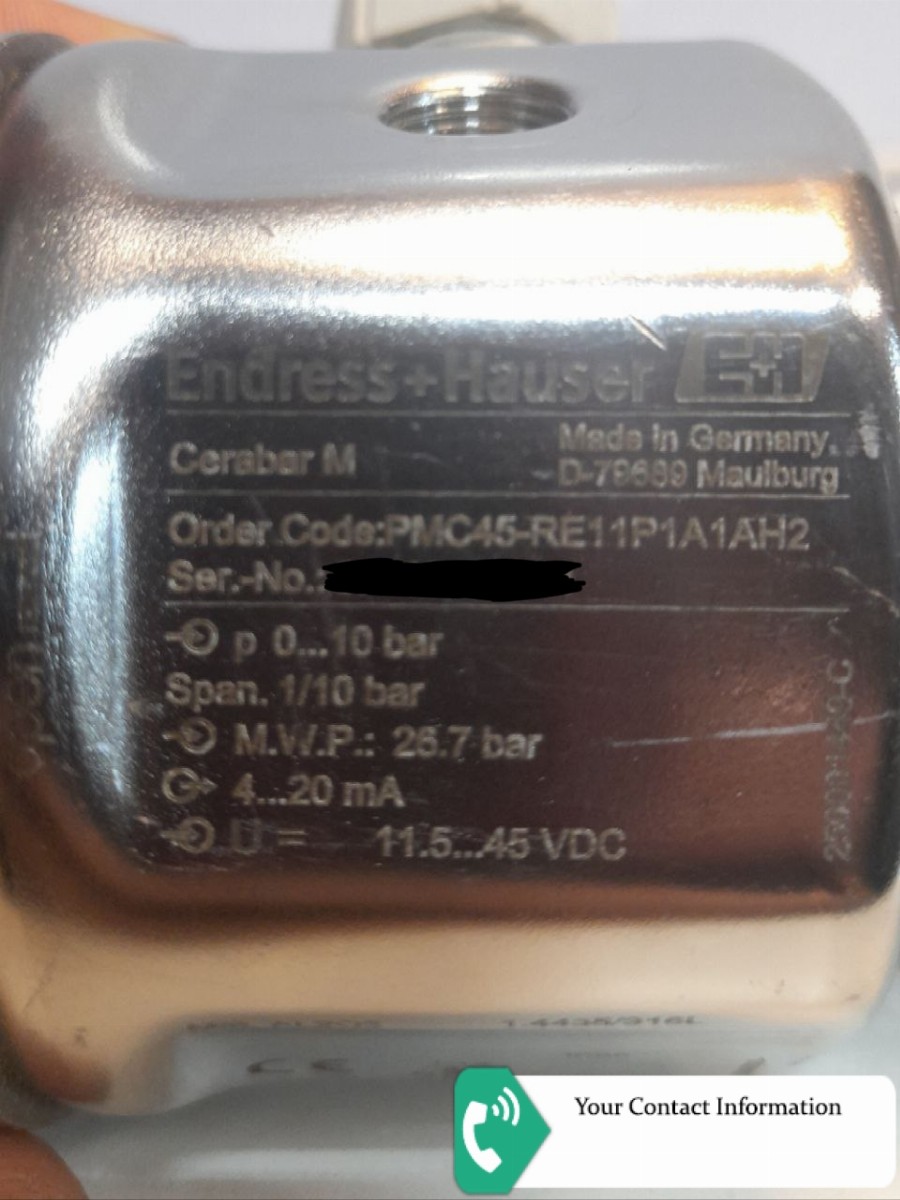

PMC45-RE11P1A1AH2
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 1P = 0...10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: A = 4-20mA analogue; w/o display
Additional Option: 1 = Basic version

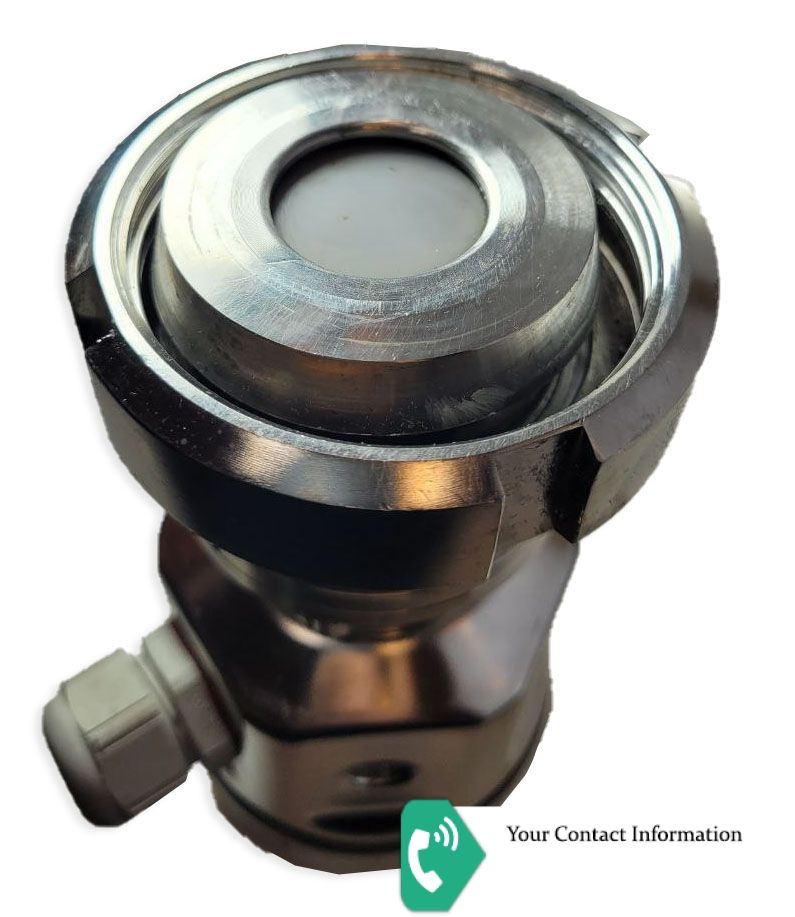

Process Connection: AH = DIN11851 DN40 PN40 slotted-nut, 316L, EHEDG, 3A with seal HNBR/EPDM
Sensor Seal: 2 = HNBR (FDA)
