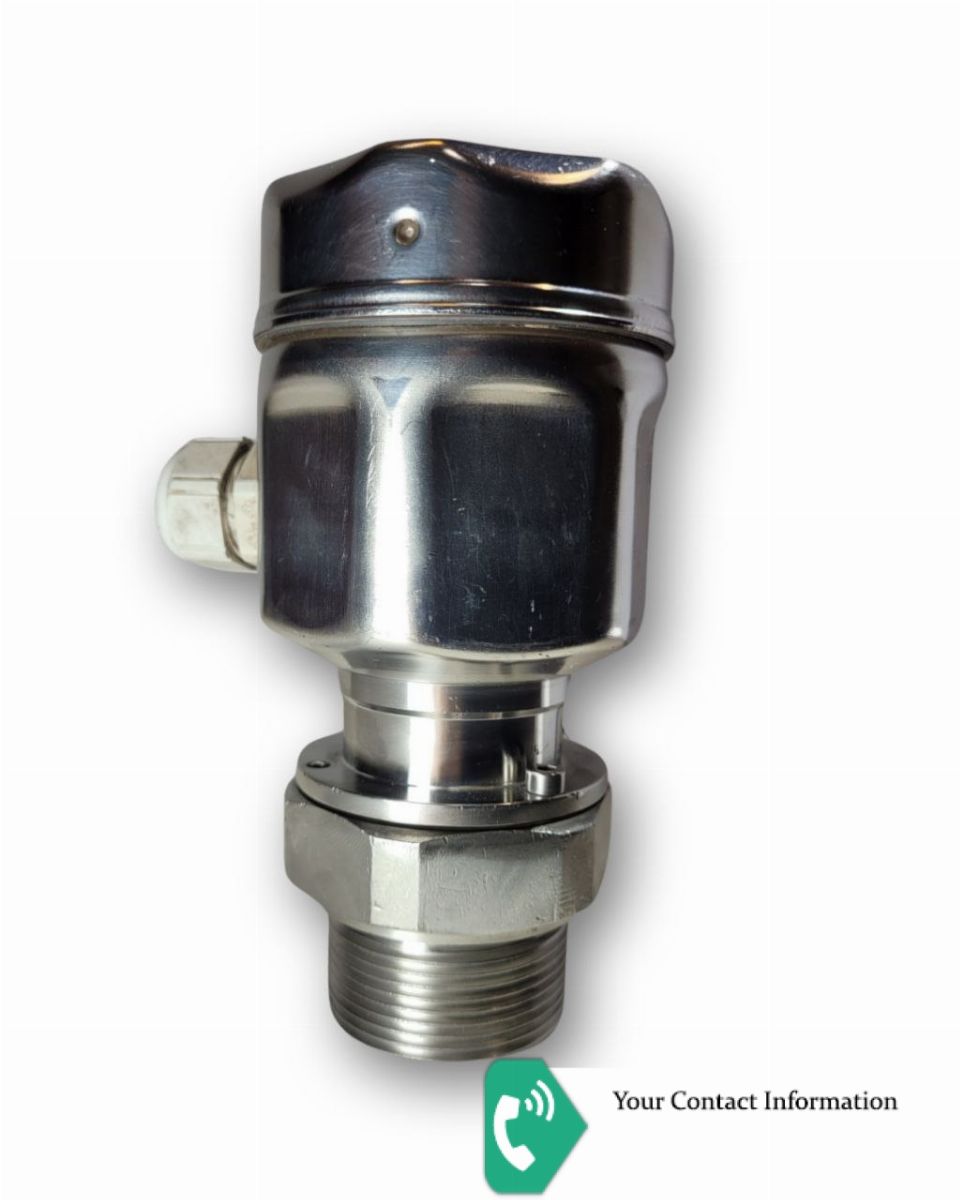

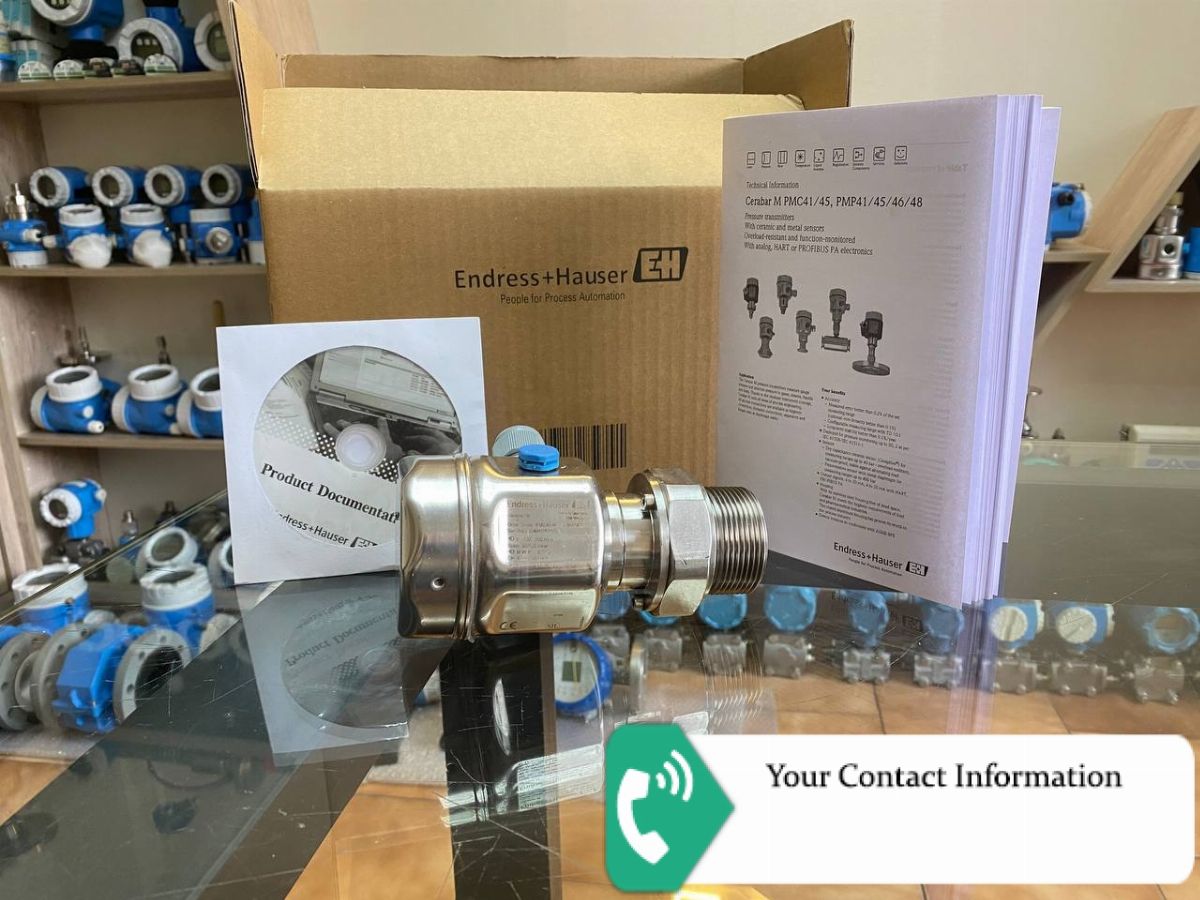

Cerabar M PMC45

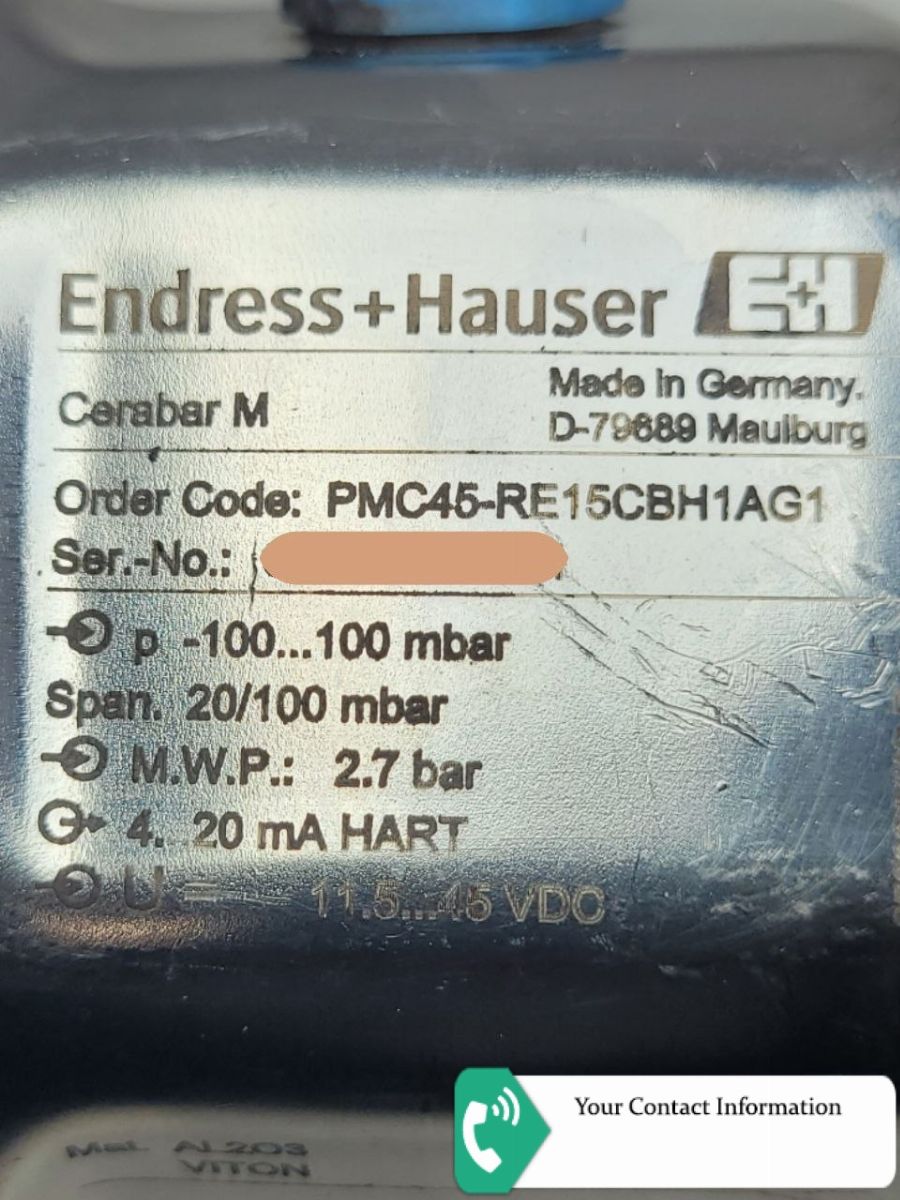

PMC45-RE15CBH1AG1
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 5C = -100/-10/-1.5...100mbar/10kPa/1.5psi; 4bar/400kPa/60psi
Calibration; Unit: B = 0.2% see additional spec.
Output; Operating: H = 4-20mA HART; w/o display
Additional Option: 1 = Basic version
Process Connection: AG = Thread ISO228 G1-1/2, 316L
Sensor Seal: 1 = FKM Viton
