Process pressure measurement

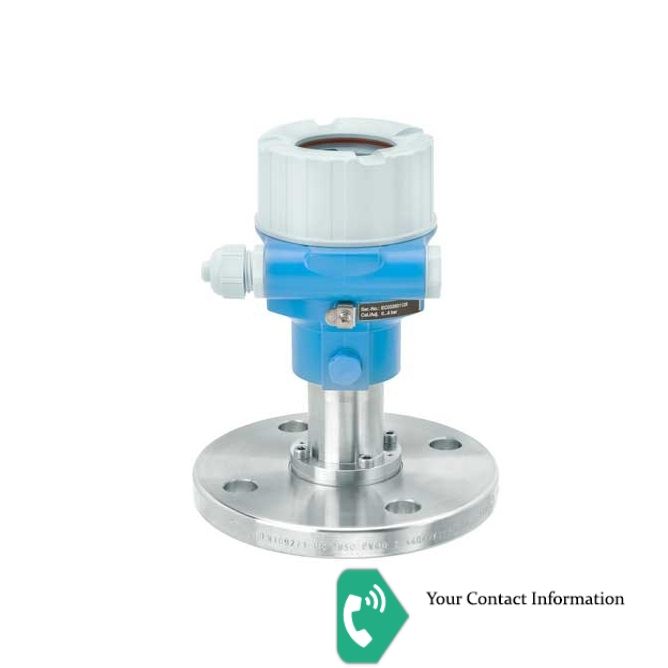

Cerabar M PMC51
AA=Approval : Non-hazardous area
2=Output:4-20mA HART
1=Display, Operation:LCD, push button on display/electronics
J=Housing: F31 Alu, glass window
A=Electrical Connection: Gland M20, IP66/68 NEMA4X/6P
1P=Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O overload: 40bar/4MPa/600psi
G=Reference Accuracy: Standard
B=Calibration; Unit: Sensor range; mbar/bar
RKJ=Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
A=Seal: FKM
