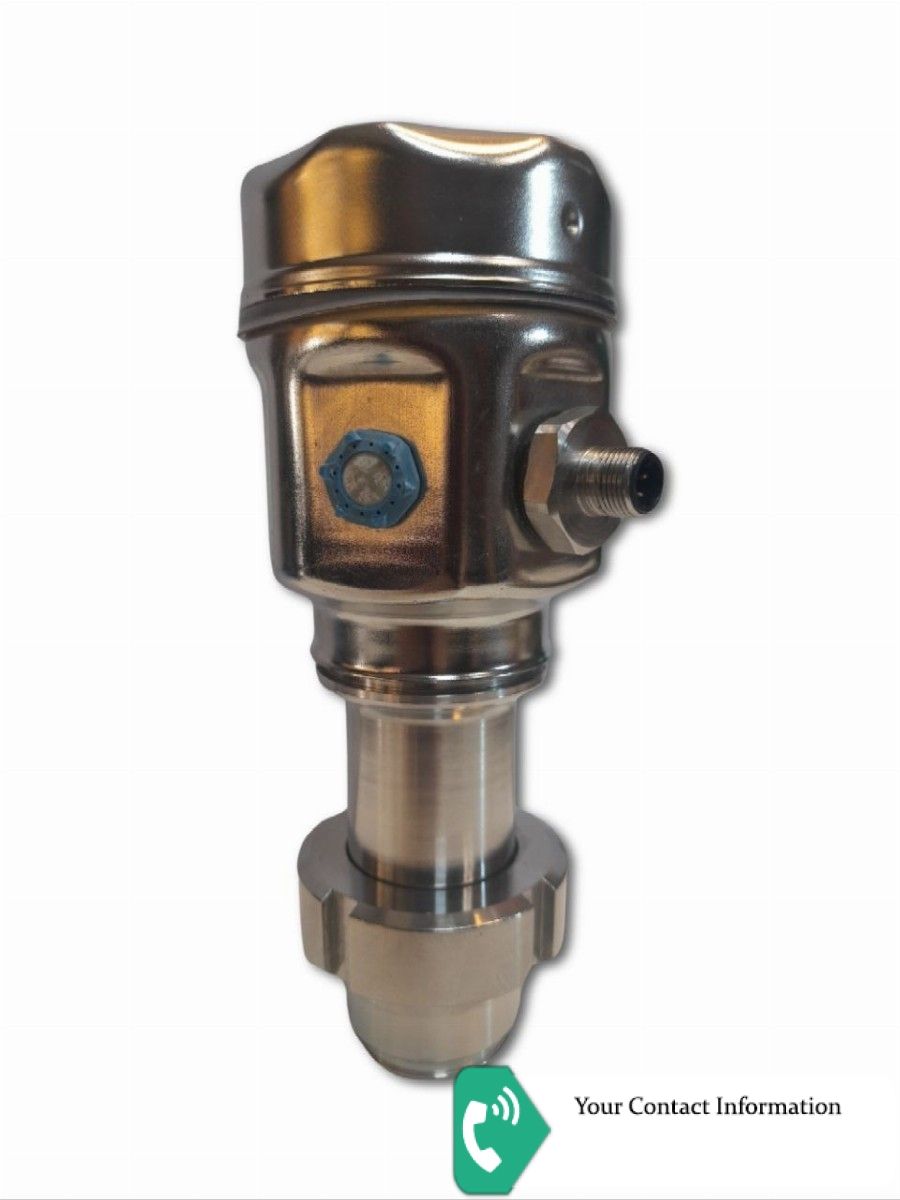

Cerabar M PMC51

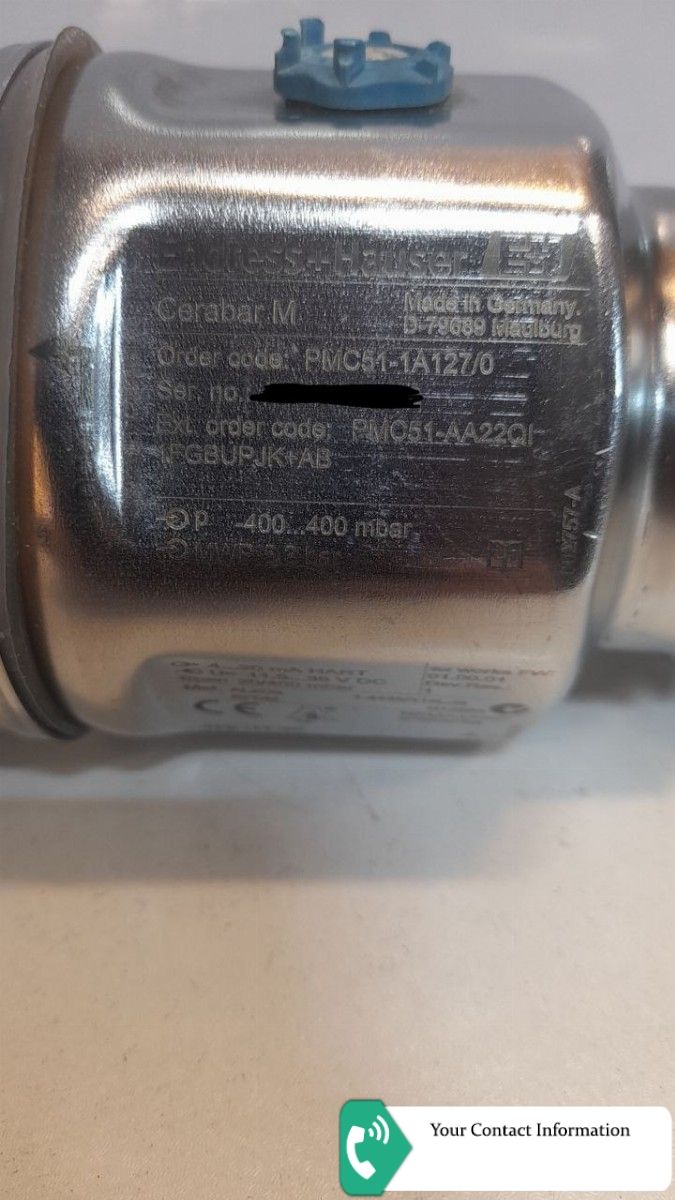

PMC51-AA22QI1FGBUPJK+AB
Approval: AA = Non-hazardous area
Output: 2 = 4-20mA HART
Display, Operation: 2 = W/o LCD, push button on electronics
Housing: Q = F15 stainless steel hygiene
Electrical Connection: I = Plug M12, IP66/67 NEMA4X/6P
Sensor Range: 1F = 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O overload: 8bar/800kPa/120psi
Reference Accuracy: G = Standard
Calibration; Unit: B = Sensor range; mbar/bar
Process Connection: UPJ = Universal adapter 44mm 316L, incl. silicone shape seal, 3A, with seal FDA
Seal: K = EPDM, FDA, 3A Class II, USP Class VI, DVGW, KTW, W270, WRAS, ACS, NSF61
Additional Operation Language: AB = German
