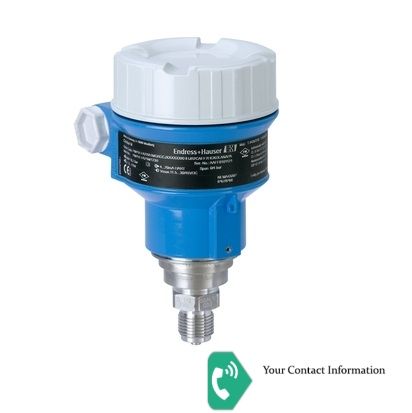

Process pressure and level measurement
Approval: AA= Non-hazardous area
Output: BA= 2-wire 4-20mA HART
Display; Operation: C= Segment display w/o buttons
Housing; Material: J= Dual compartment; Alu, coated
Electrical Connection: B= Gland M20, brass nickel plated, IP66/68 NEMA Type 4X/6P
Pressure Type: 6= Gauge
Sensor Range: 3P= 10bar/1MPa/150psi
Calibration; Unit: J= Customized linear; see additional spec.
Process Connection, Sealing Surface: A1= Thread ASME B1.20.1, NPT
Process Connection: VWJ= MNPT1/2, hole 11.4mm, 316L
Seal: D= FKM
>>Accessory Mounted: NL= Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing, (DA63M-TB2BFG)
>>Accessory Enclosed: Q3= Mounting bracket B&B manifold, wall/pipe, 316L
>>Marking: Z1= Tagging (TAG), see additional spec.
