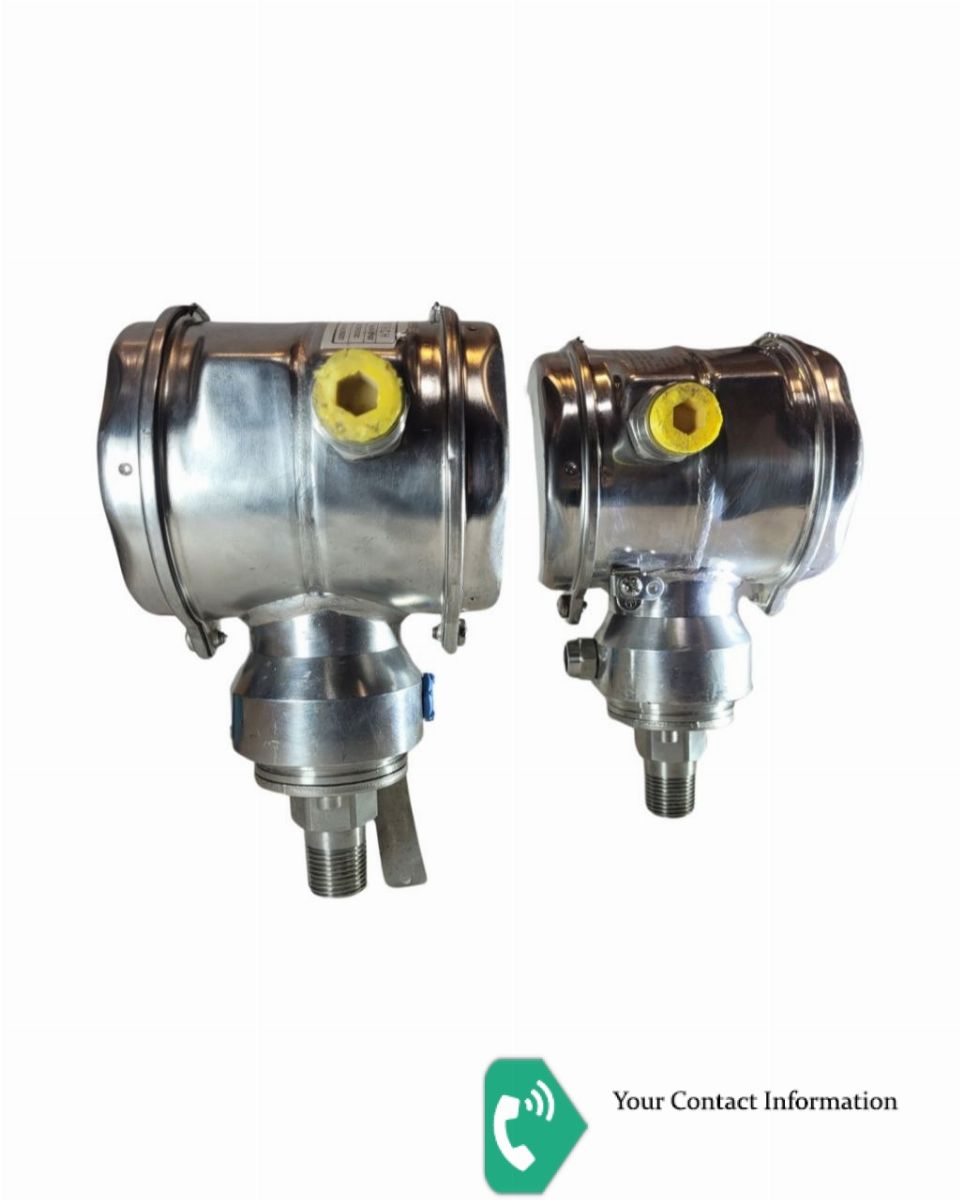

Cerabar S PMC71

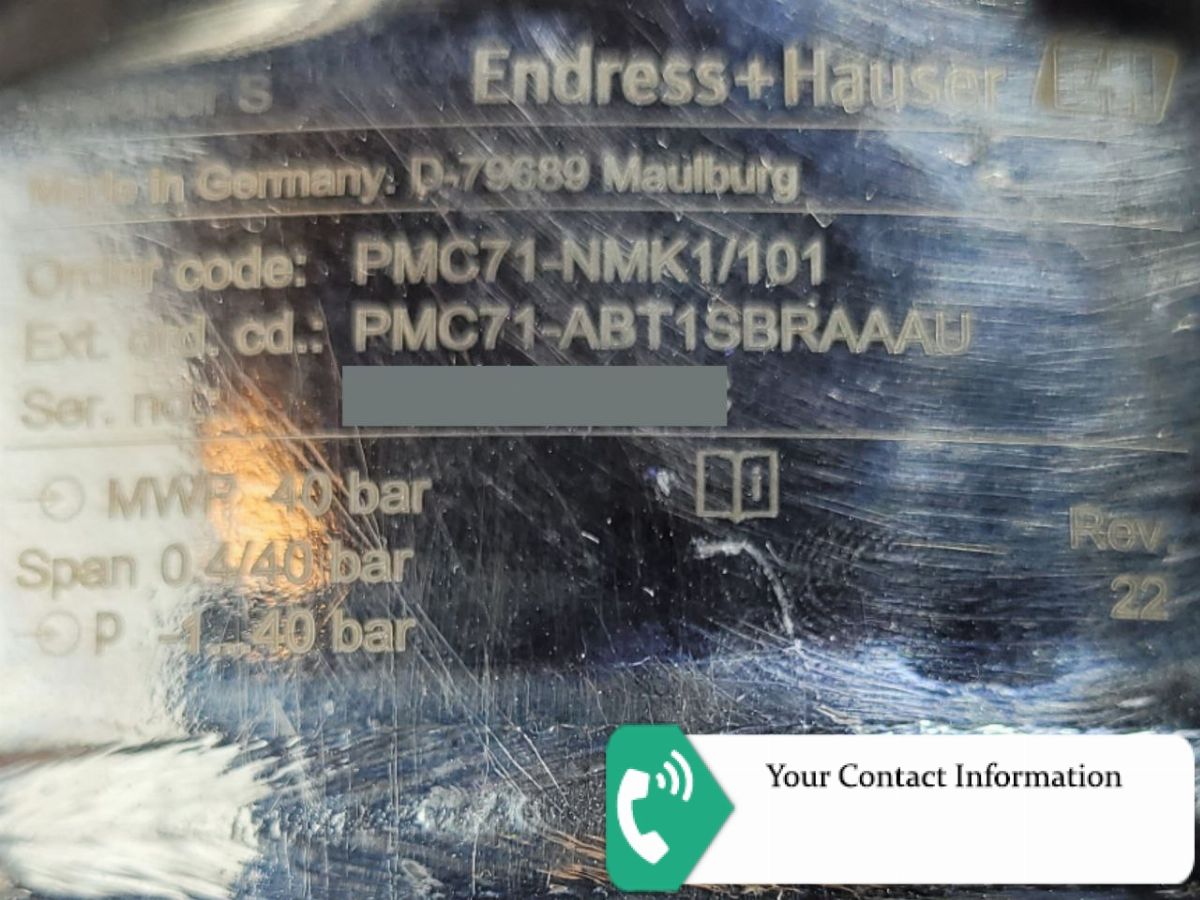

PMC71-ABT1SBRAAAU
Approval: A = Non-hazardous area
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: T = T17 316L hyg. IP66/68 NEMA6P;EPDM;NPT1/2 thread, T17 = side cover, hygiene
Sensor Range; Sensor Overload Limit: 1S = 40bar/4MPa/600psi gauge; 60bar/6MPa/900psi
Calibration; Unit: B = Customised; see additional spec.
Process Connection: RA = Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: A = FKM
Additional Option 1: A = Not selected
Additional Option 2: U = Mounting bracket, wall/pipe, 316L
