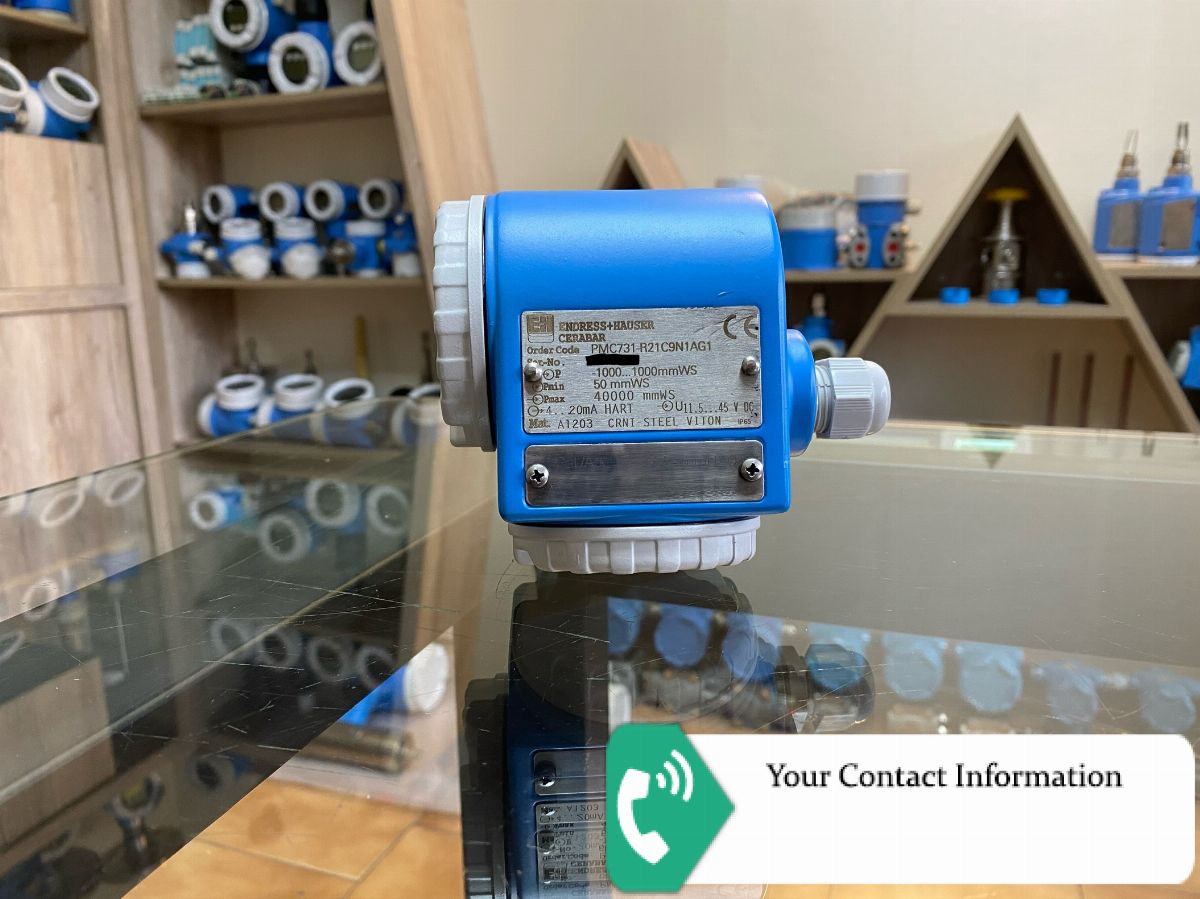

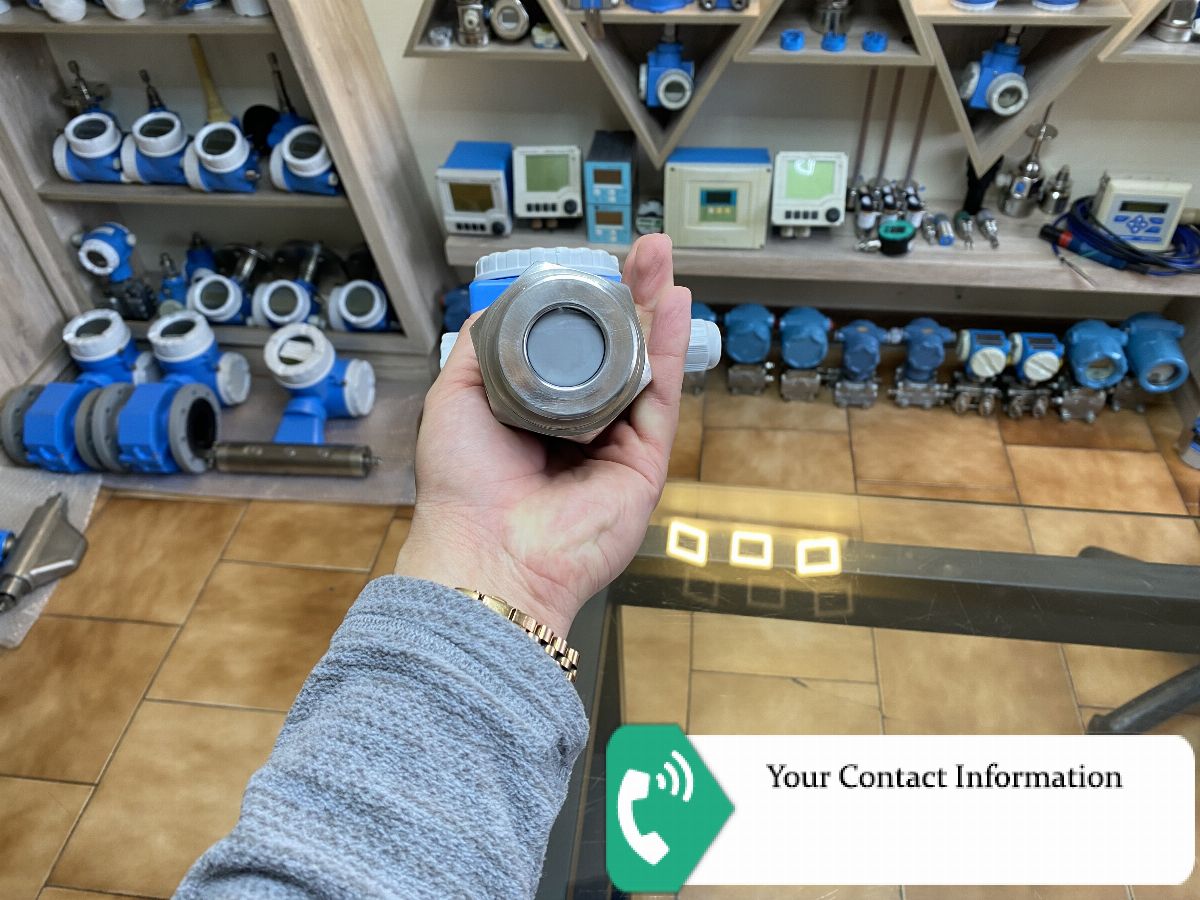

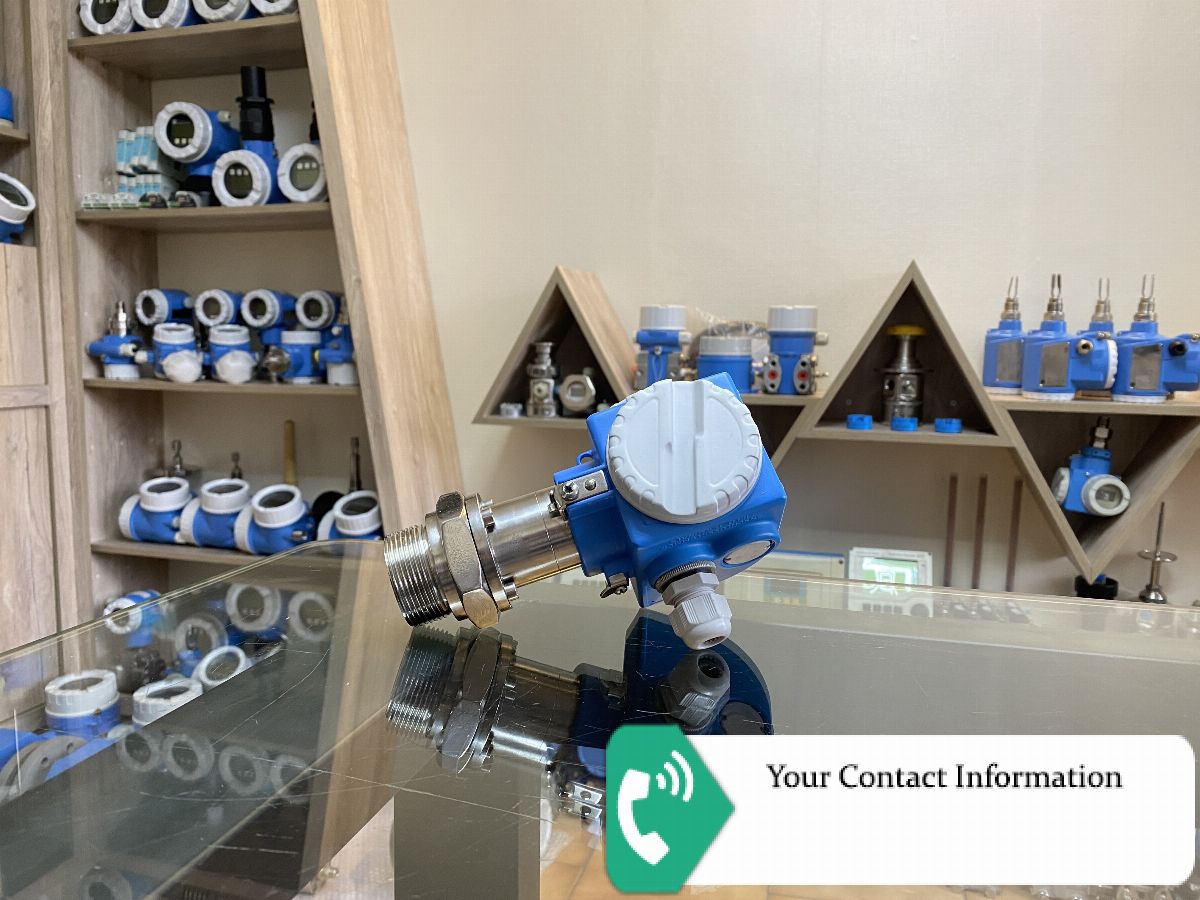

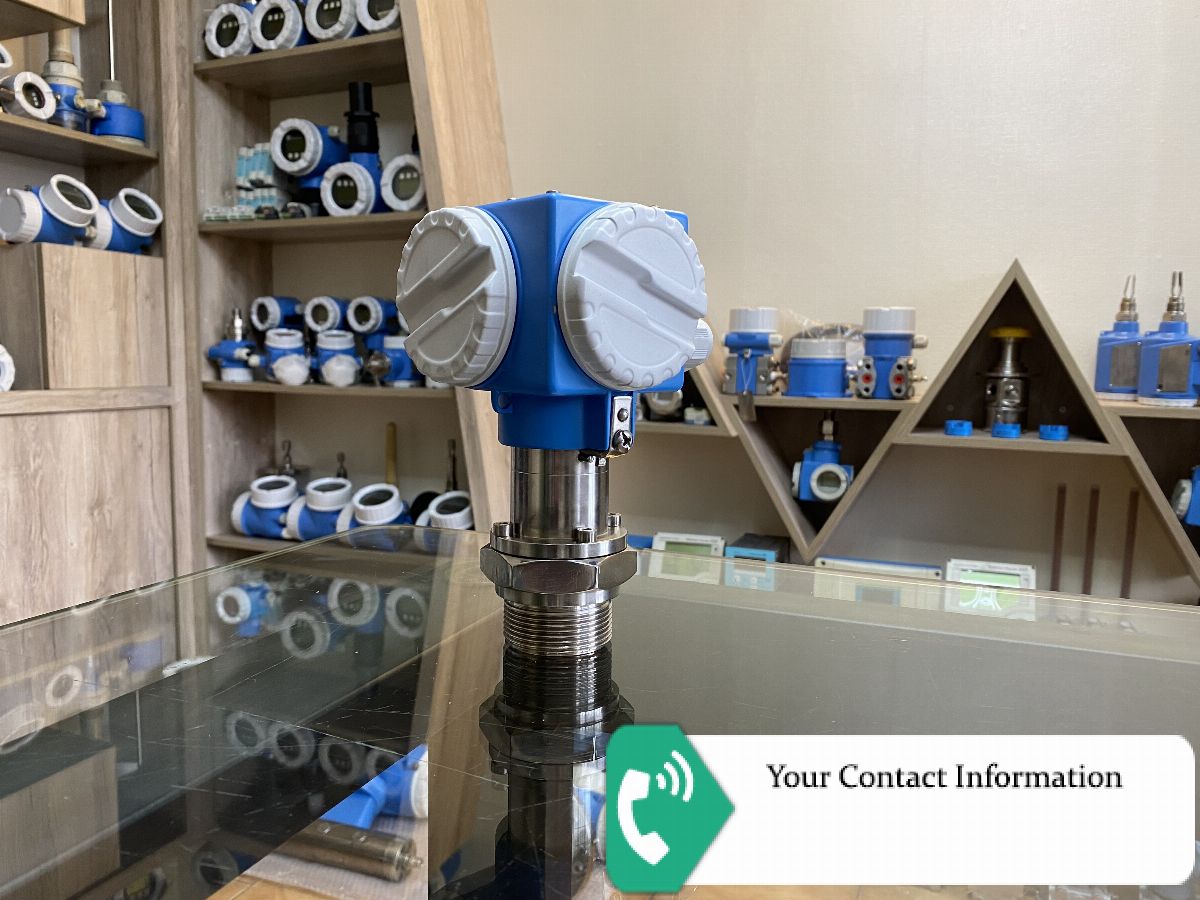

Cerabar S PMC731
PMC731-R21C9N1AG1
Approval: R = Non-hazardous area
Housing; Cable Entry: 2 = Housing Alu with Pg13.5 gland
Sensor Range; Sensor Overload Limit: 1C = 0...100mbar/10kPa/1.5psi gauge; 4bar/400kPa/60psi
Calibration; Unit: 9 = Adjusted; see additional spec.
Output: N = Output 4..20mA; INTENSOR; with linearisation and other functions
Additional Option: 1 = Basic version
Process Connection: AG = Thread ISO228 G1-1/2, 316L Ceramic flushm
Seal: 1 = FKM Viton
