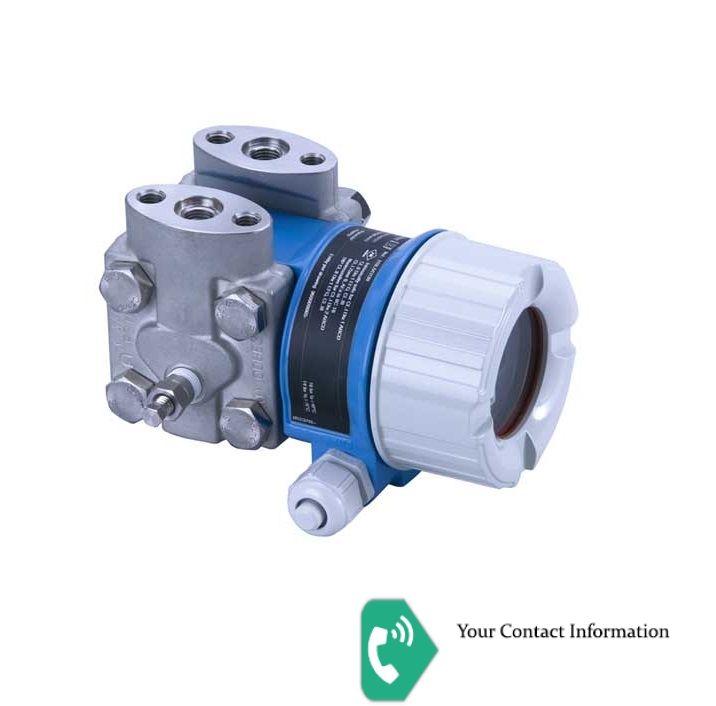

Deltabar M PMD55
AA=Approval: Non-hazardous area
2=Output: 4-20mA HART
1=Display, Operation: LCD, push button on display/electronics
B=Housing: F30 Alu, glass window
A=Electrical Connection: Gland M20, IP66/67 NEMA4X/6P
6=Nominal Pressure PN: 70bar/7MPa/1015psi
7F=Sensor Nominal Value: 500mbar/50kPa/7.5psi
G=Reference Accuracy: Standard
B=Calibration; Unit: Nominal value; mbar/bar
HAJ=Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Installation impulse line vertical Alignment 90deg
A=Membrane Material: 316L
1=Fill Fluid: Silicone oil
C=Seal: PTFE
