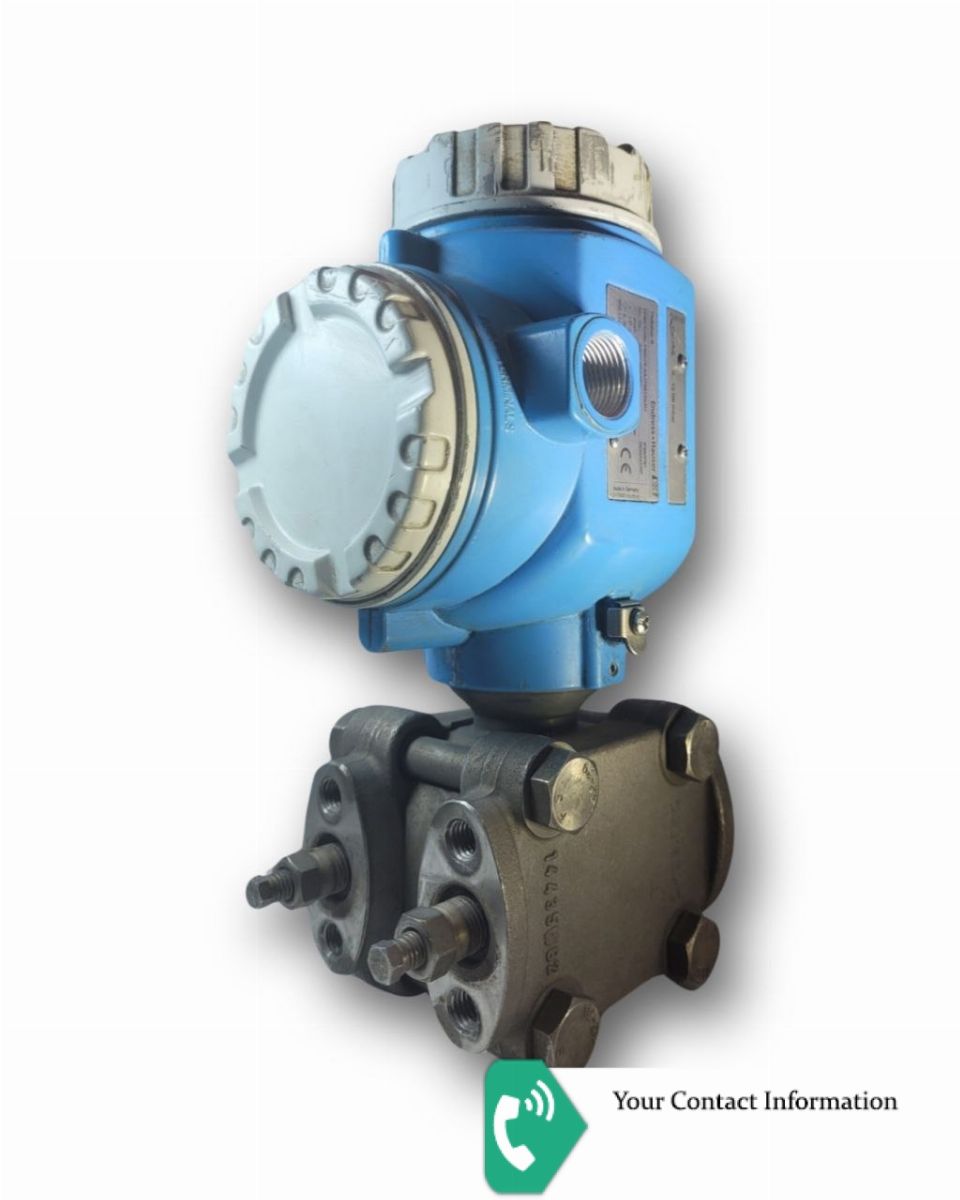

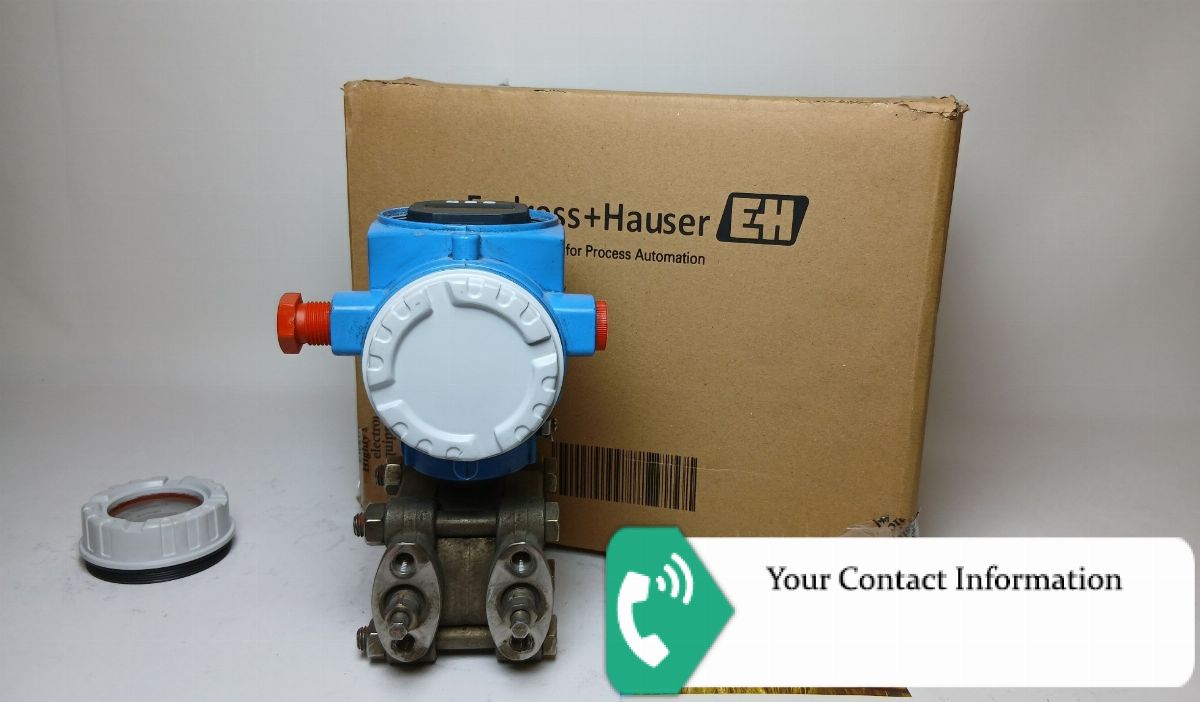

Deltabar S PMD75

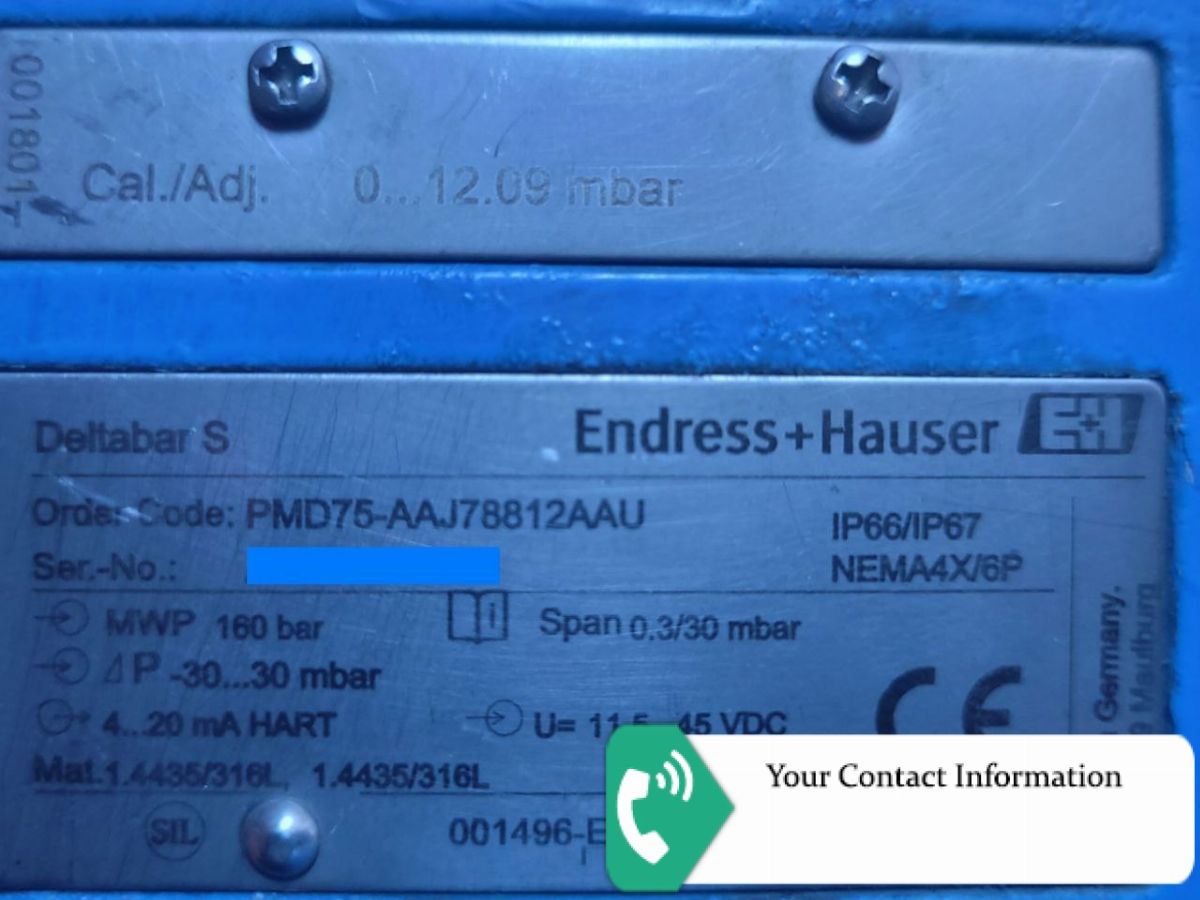

PMD75-AAJ78812AAU
Approval: A = Non-hazardous area

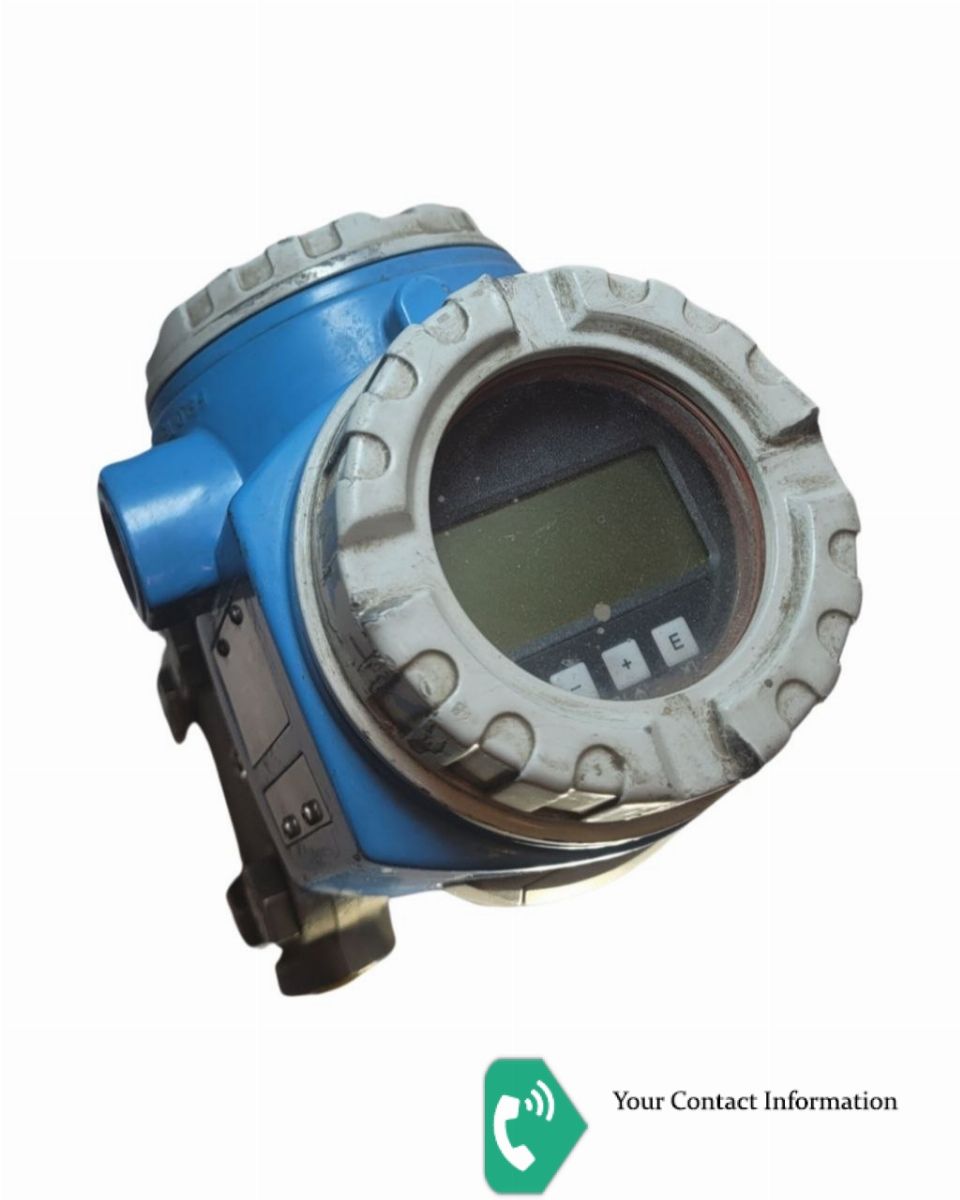

Output; Operating: A = 4-20mA HART; extern + LCD
Housing; Cover Sealing; Cable Entry: J = T15 Alu IP66/67 NEMA6P; EPDM; M20 gland, T15 = top cover (Ex d > M20 thread)
Nominal Range; Cell Material; PN: 78 = Prepared for Deltatop; 304;160bar/ 16MPa/2400psi, cell body 304
Calibration; Unit: 8 = Adjusted for Deltatop; see additional spec.
Membrane Material: 1 = 316L
Process Connection: 2 = NPT1/4-18 PN160=M10 PN420=M12, 316L incl. 2 valves, 316L
Seal: A = FKM Viton
Additional Option 1: A = Not selected
Additional Option 2: U = Mounting bracket, wall/pipe, 316L, heavy duty design
