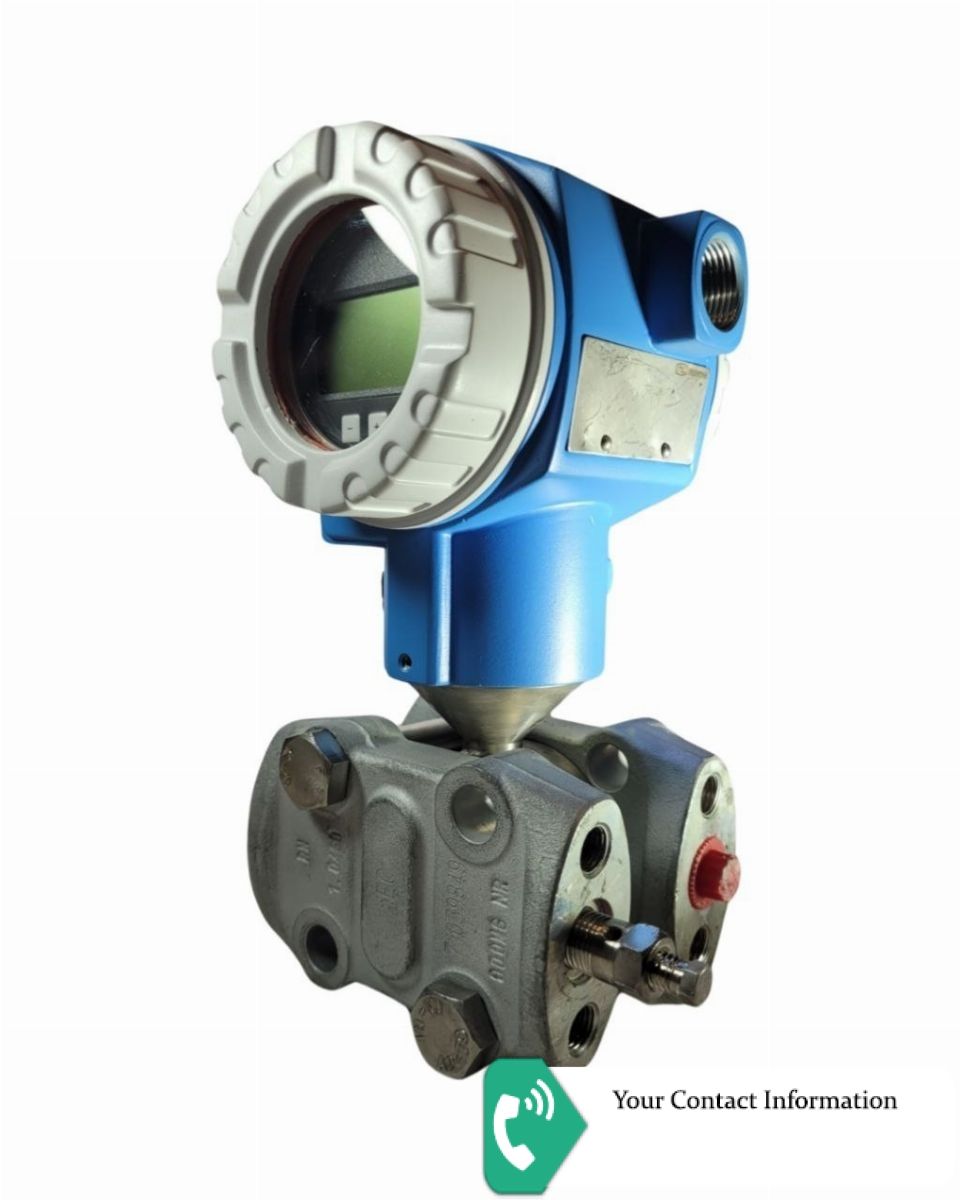

Deltabar S PMD75

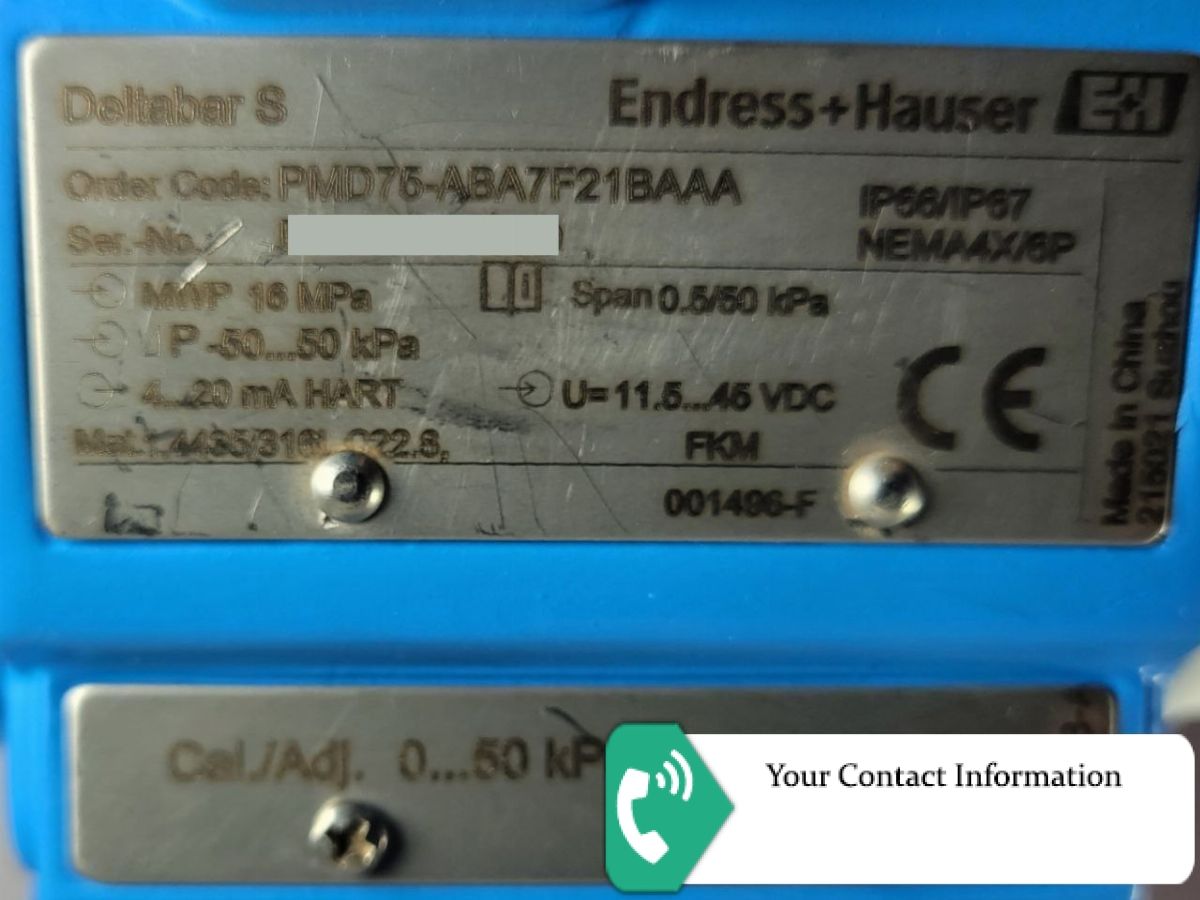

PMD75-ABA7F21BAAA
Approval: A = Non-hazardous area
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Nominal Range; Cell Material; PN: 7F = 500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit: 2 = Nominal range; kPa/MPa
Membrane Material: 1 = 316L
Process Connection: B = NPT1/4-18 IEC61518 UNF7/16-20, C22.8 incl. 2 valves, 316L
Seal: A = FKM Viton
Additional Option 1: A = Not selected
Additional Option 2: A = Not selected
