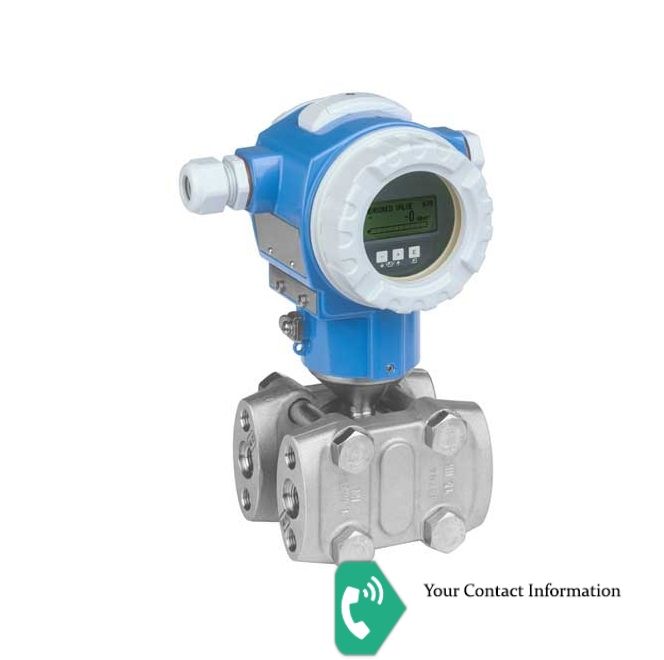

Deltabar S PMD75
A= Approval : Non-hazardous area
B= Output; Operating: 4-20mA HART; inside + LCD
A= Housing; Cover Sealing; Cable Entry: T14 Alu IP66٫67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) 3bar٫300kPa٫45psi; 316L; 160bar٫ 16MPa٫2400psi
7H= Nominal Range; Cell Material; PN: 3bar/300kPa/45psi; 316L; 160bar/ 16MPa/2400psi
B= Calibration; Unit: Customised; see additional spec
1= Membrane Material: 316 L
D= Process Connection: NPT1٫4-18 IEC61518 UNF7٫16-20, 316L incl. 2 valves, 316L
A= Seal: FKM Viton
A= Additional Option 1: Not selected
U= Additional Option 2: Mounting bracket, wall٫pipe, 316L, heavy duty
