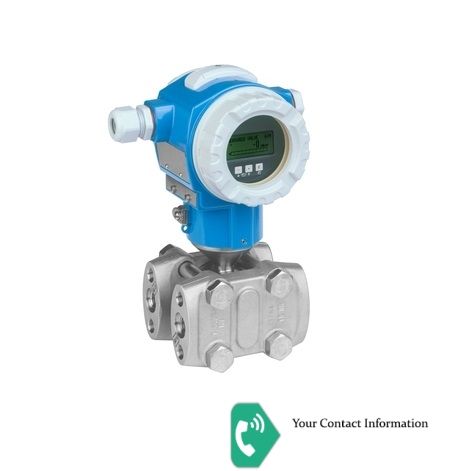

Differential pressure Transmitter PMD75
Differential pressure transmitter with metal sensor for measurement of pressure differences
Approval: B ATEX II 1/2G Ex ia IIC T6+II 2G Ex d IIC T6
Output; Operating: A 4-20mA HART; extern + LCD
Housing; Cover Sealing; Cable Entry: A T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Nominal Range; Cell Material; PN: 7L 16bar/1.6MPa/240psi; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit: E Customised pressure; see additional spec.
Membrane Material: 3 Monel
Process Connection: D NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L
Seal: A FKM Viton
Additional Option 1: Q Mounting bracket, wall/pipe, 316L, standard design
Additional Option 2: A Not selected
>>Accessory Mounted: N5 5 valve manifold 316L, see additional spec.
>>Marking: Z1 Tagging (TAG), see additional spec.
