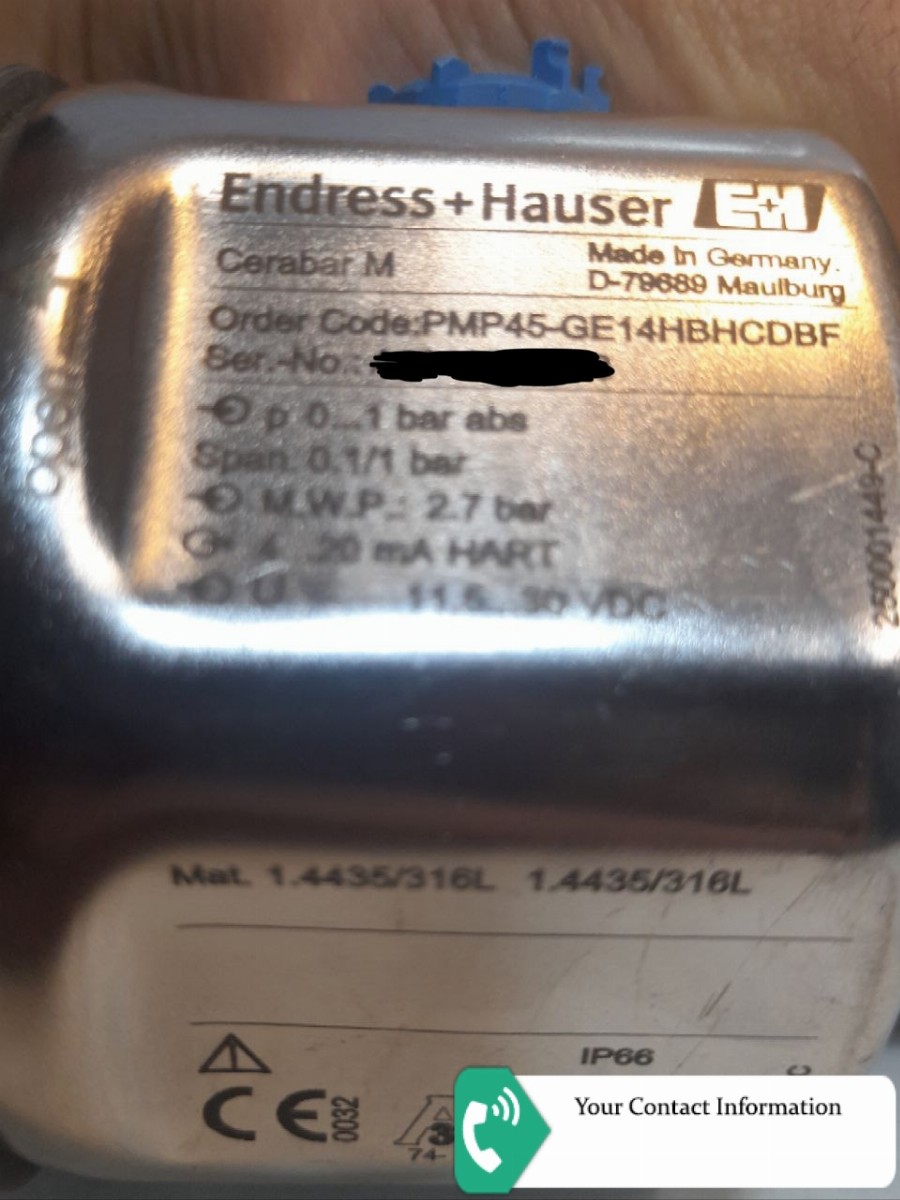

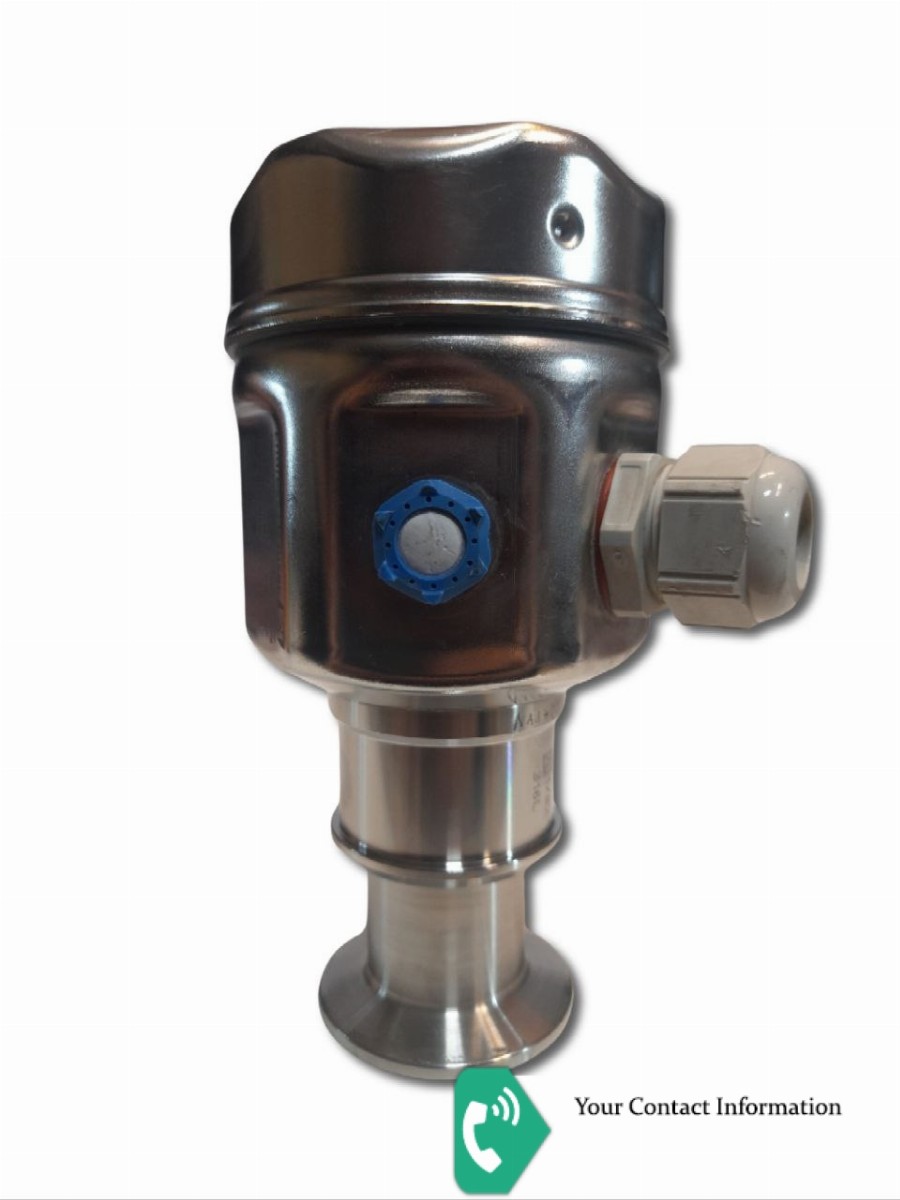

Cerabar M PMP45
PMP45-GE14HBHCDBF
Approval: G = ATEX II 1/2G EEx ia IIC T6
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 4H = 0...1bar/100kPa/15psi absolute; 4bar/400kPa/60psi
Calibration; Unit: B = 0.2% see additional spec.
Output; Operating: H = 4-20mA HART; w/o display
Additional Option: C = EN10204-3.1 material (wetted parts) inspection certificate

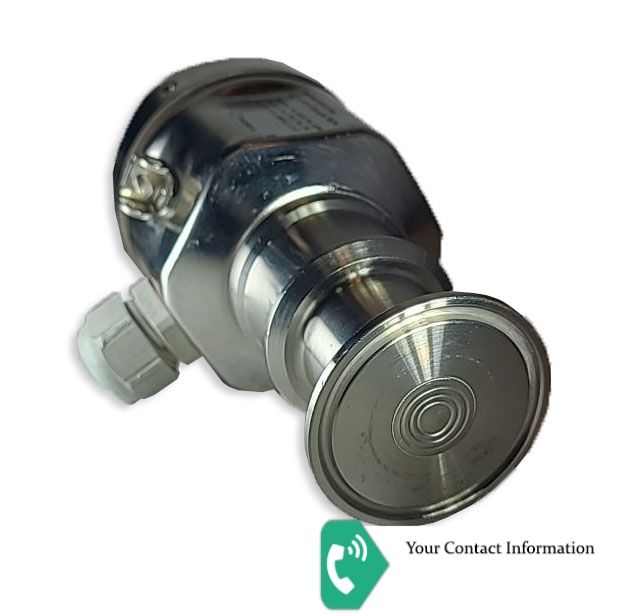

Process Connection: DB = Tri-Clamp ISO2852 DN25-38 (1...1-1/2"), 316L, DIN32676 DN25-40, EHEDG, 3A
Membrane; Fill Fluid: F = 316L; Synthetic oil (FDA)
