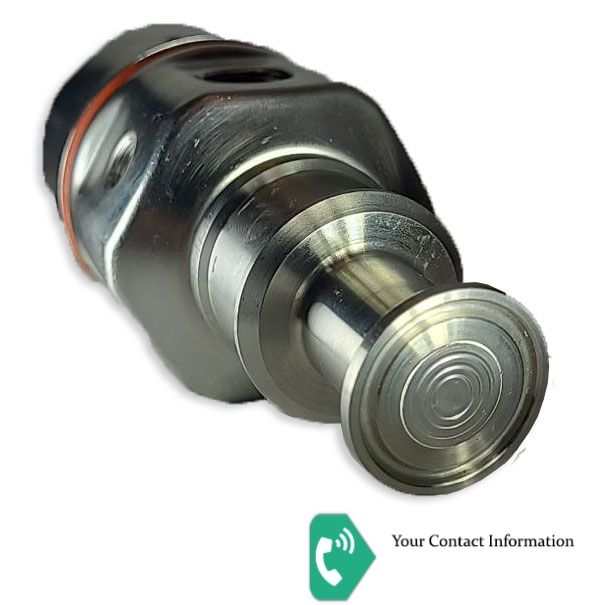

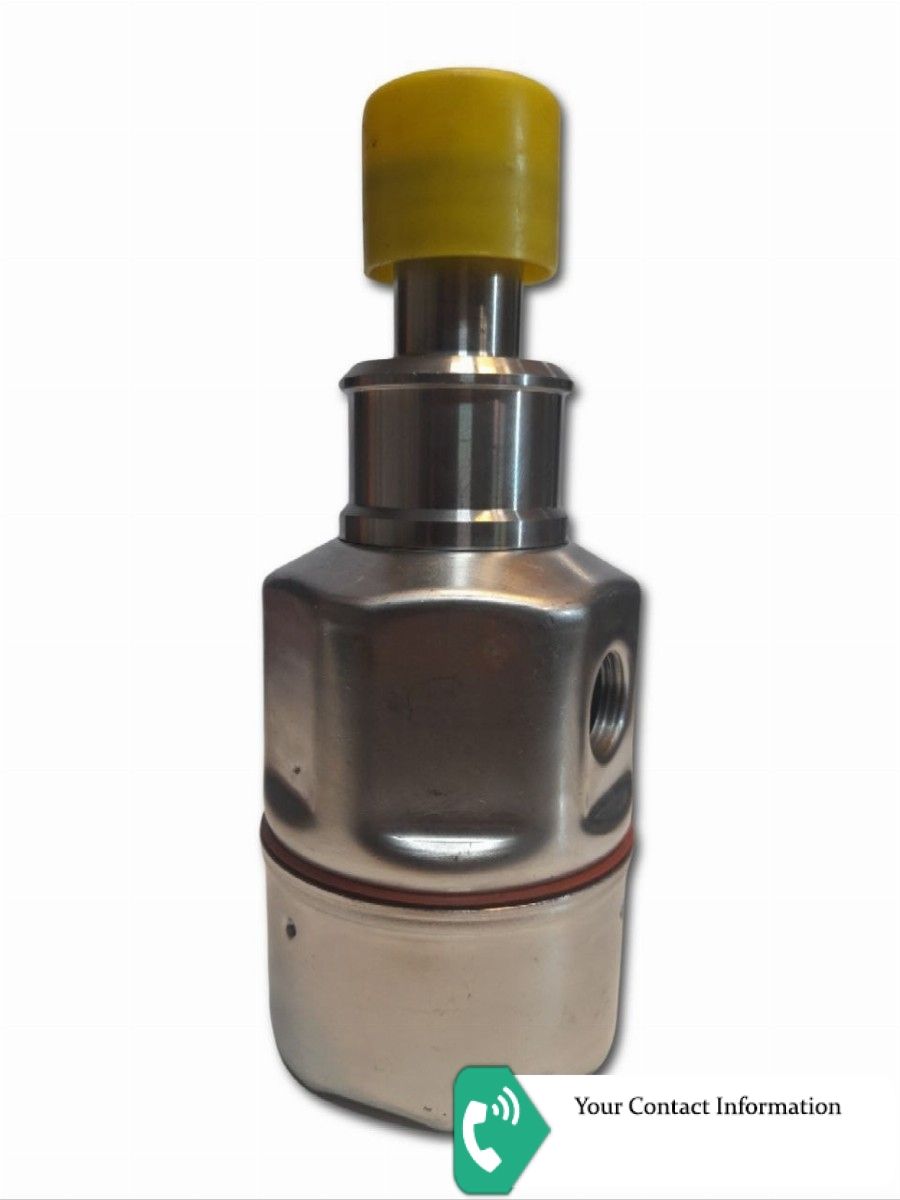

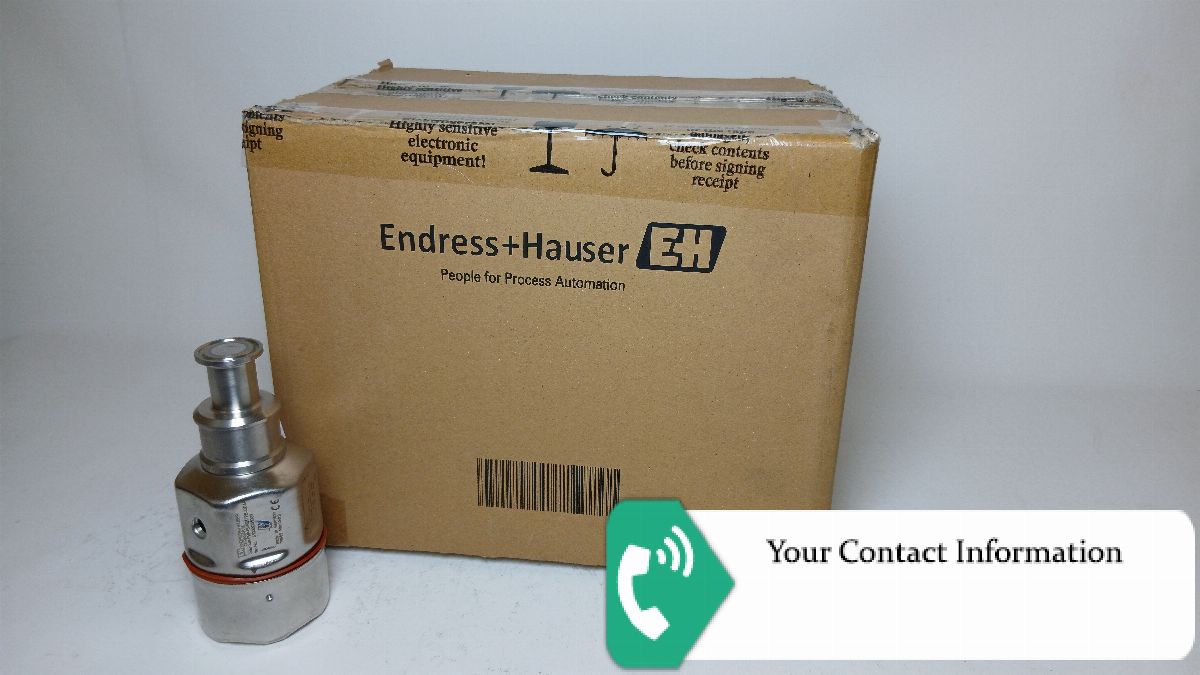

Cerabar M PMP45

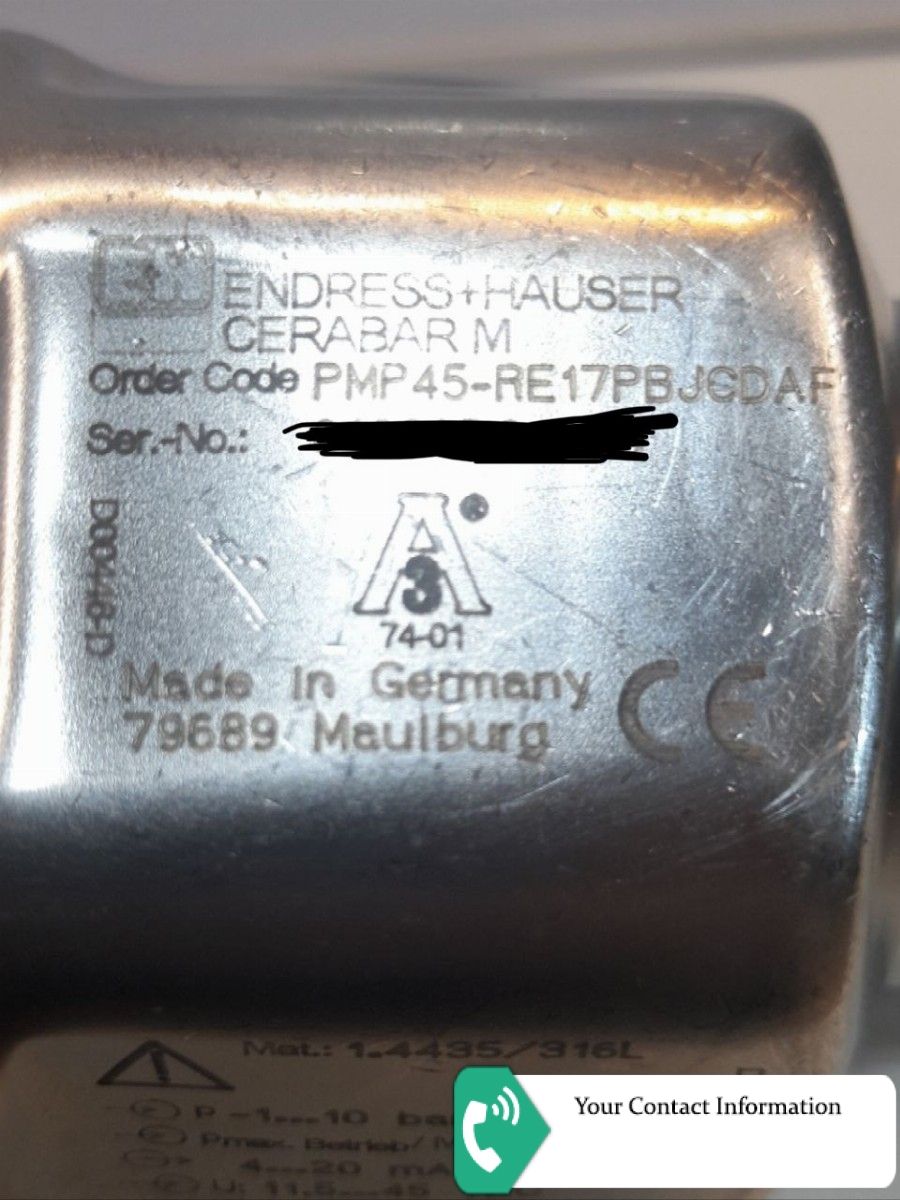

PMP45-RE17PBJCDAF
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 7P = -1/-0.1/-15...10bar/1MPa/150psi; 40bar/4MPa/600psi
Calibration; Unit: B = 0.2% see additional spec.
Output; Operating: J = 4-20mA HART; display 4-digit + bargraph
Additional Option: C = EN10204-3.1 material (wetted parts) inspection certificate
Process Connection: DA = Clamp ISO2852 DN22, 316L, DIN32676 DN20, EHEDG, 3A
Membrane; Fill Fluid: F = 316L; Synthetic oil (FDA)
