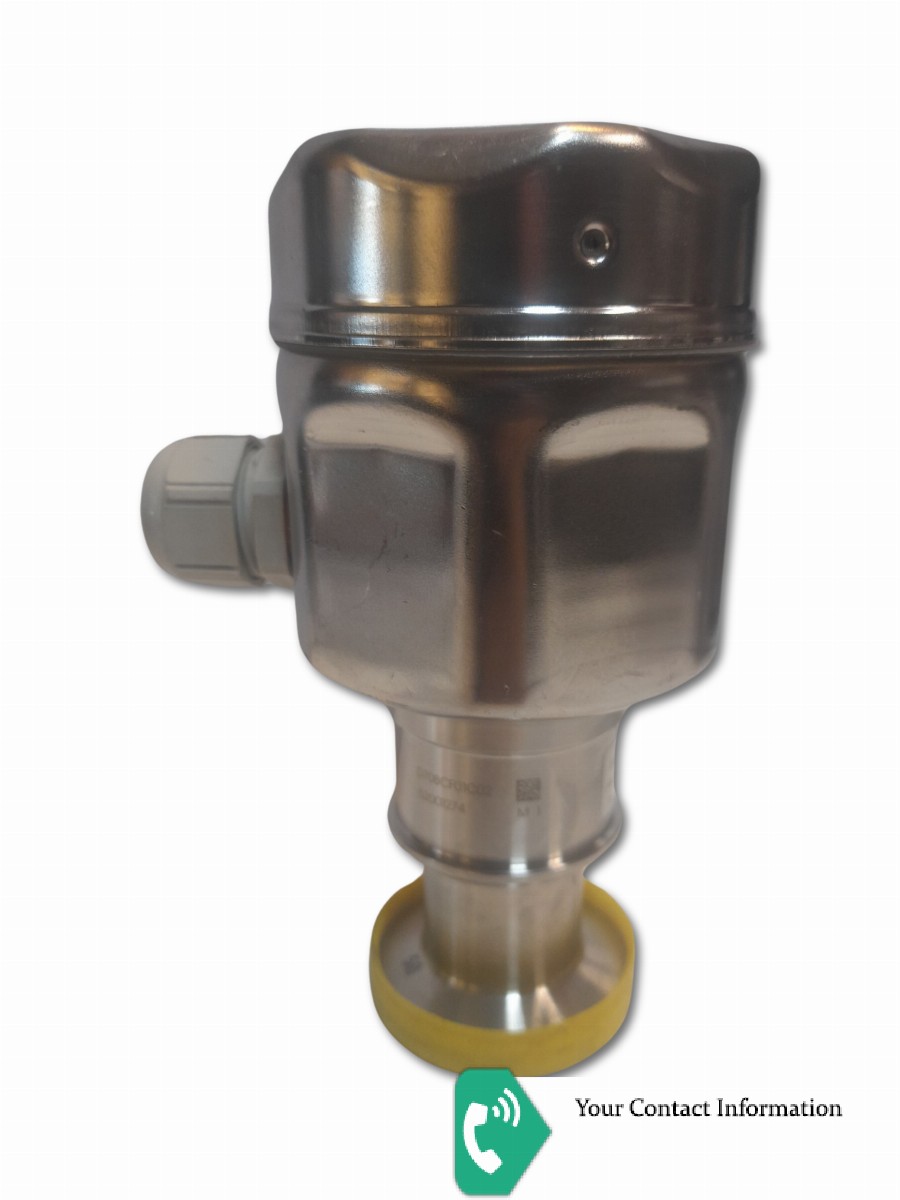

Cerabar M PMP45

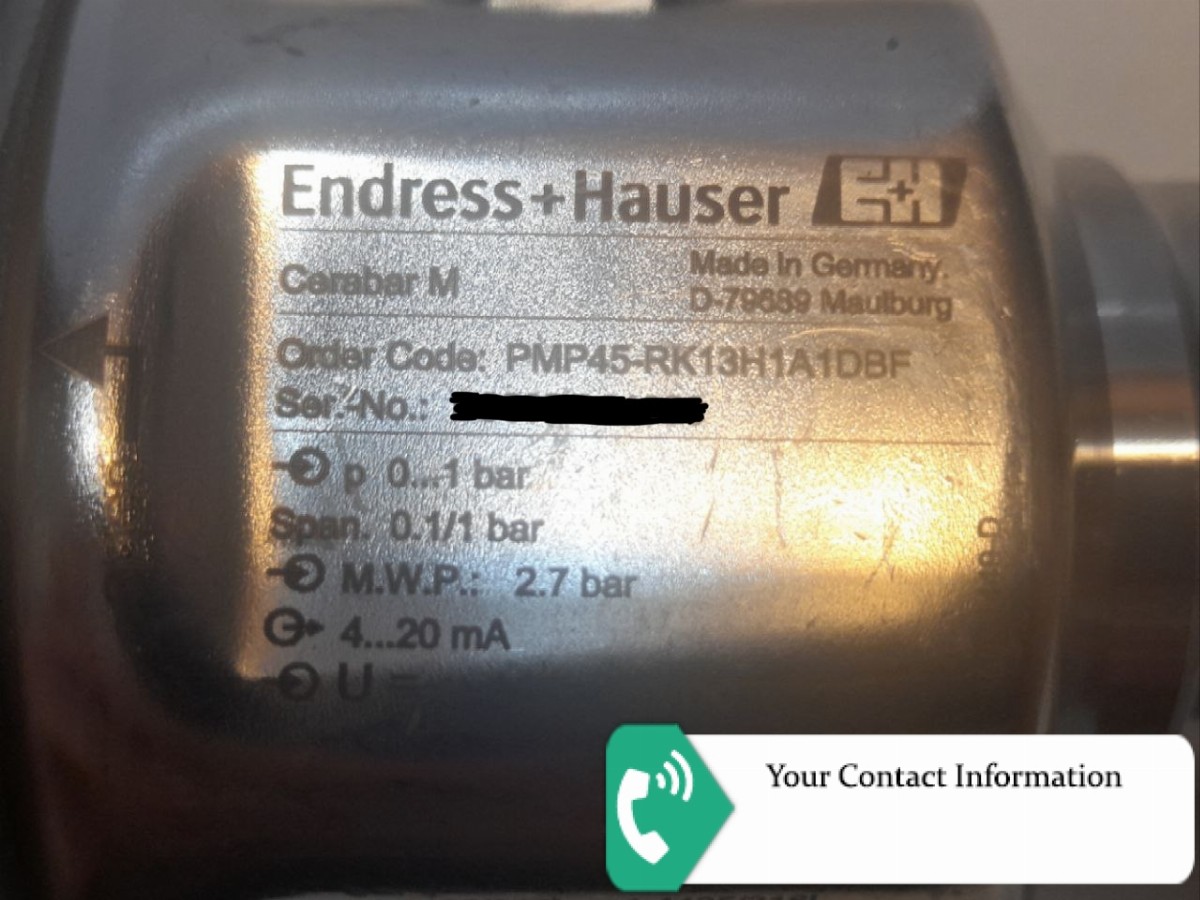

PMP45-RK13H1A1DBF
Approval: R = Non-hazardous area
Housing; Electrical Connection: K1 = F15 316L Hygiene; cable 5m, IP68 + Atmosph. pressure compensation
Sensor Range; Sensor Overload Limit: 3H = 0...1bar/100kPa/15psi gauge; 4bar/400kPa/60psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: A = 4-20mA analogue; w/o display
Additional Option: 1 = Basic version

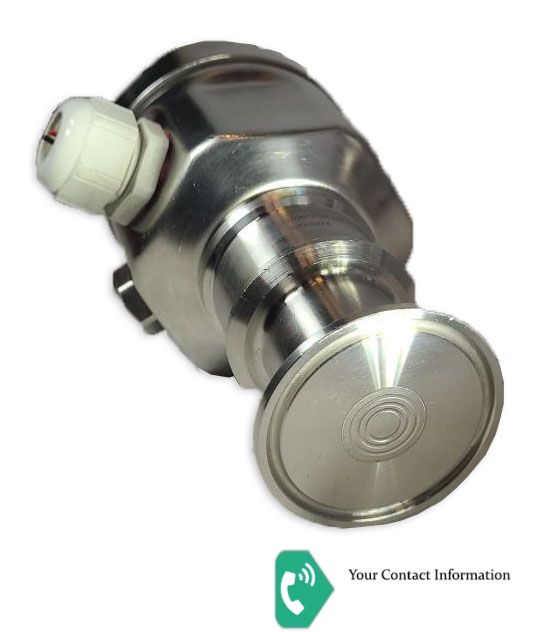

Process Connection: DB = Tri-Clamp ISO2852 DN25-38 (1...1-1/2"), 316L, DIN32676 DN25-40, EHEDG, 3A
Membrane; Fill Fluid: F = 316L; Synthetic oil (FDA)
