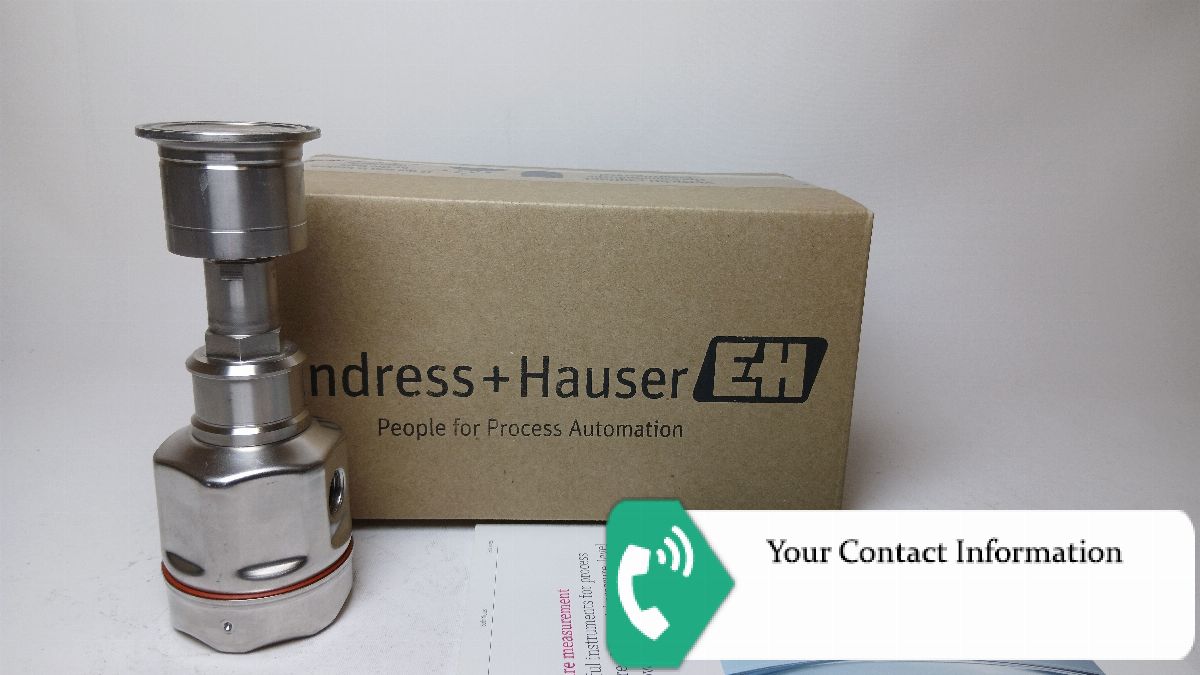

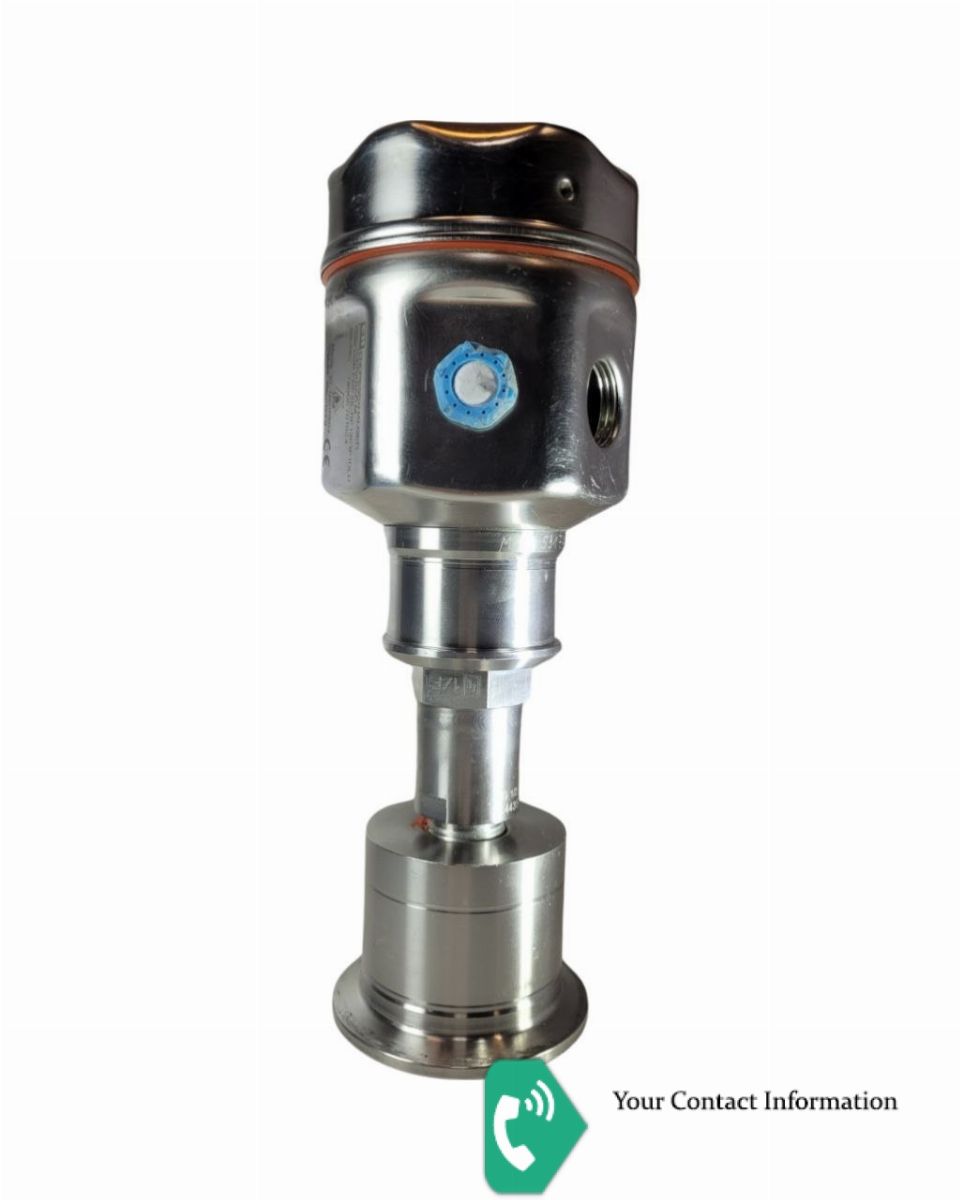

Cerabar M PMP46

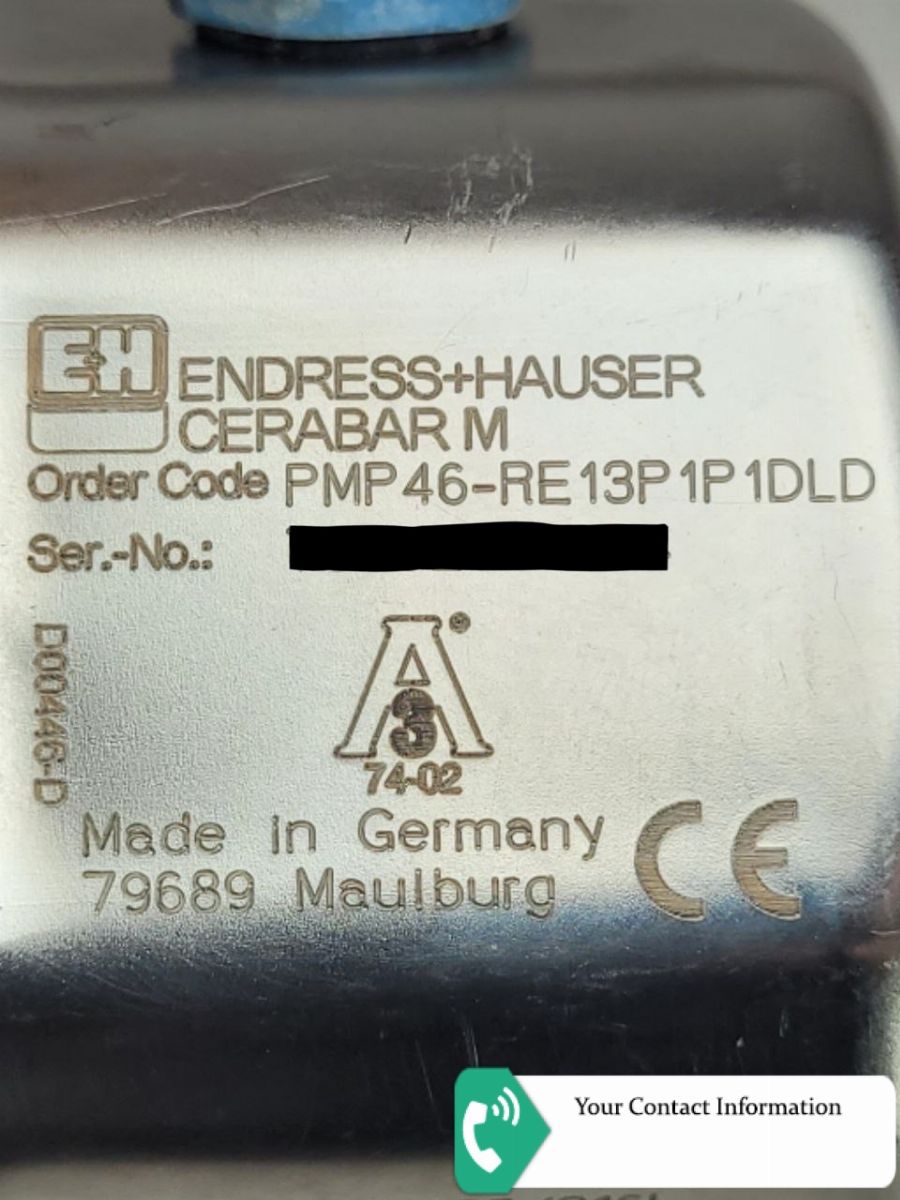

PMP46-RE13P1P1DLD
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 3P = 0...10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
Calibration; Unit: 1 = 0.2% sensor range; mbar/bar
Output; Operating: P = PROFIBUS PA; w/o display
Additional Option: 1 = Basic version

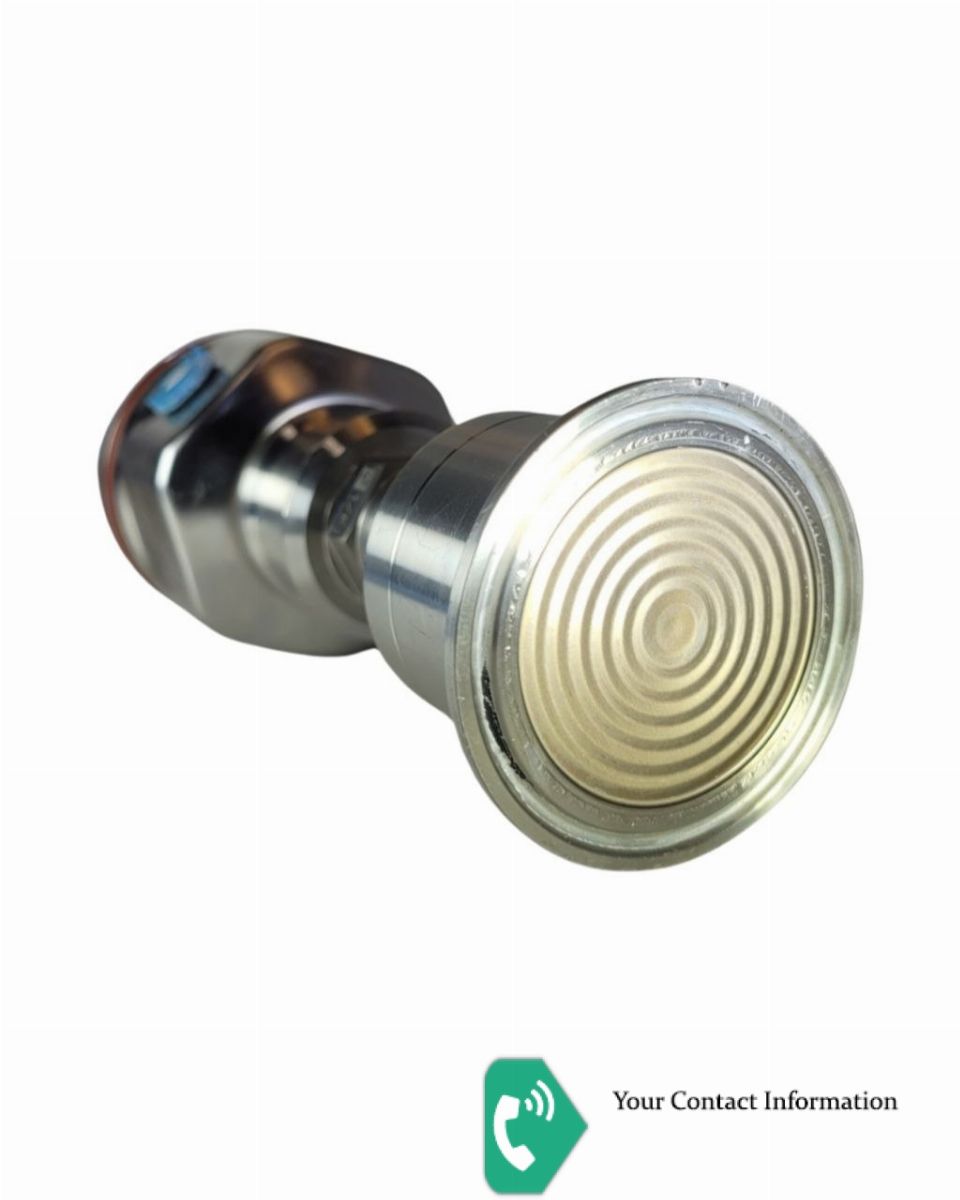

Process Connection: DL = Tri-Clamp ISO2852 DN51 2", 316L, DIN32676 DN50, EHEDG, 3A
Transmitter Mounting; Fill Fluid: D = Direct; Vegetable oil (FDA)
