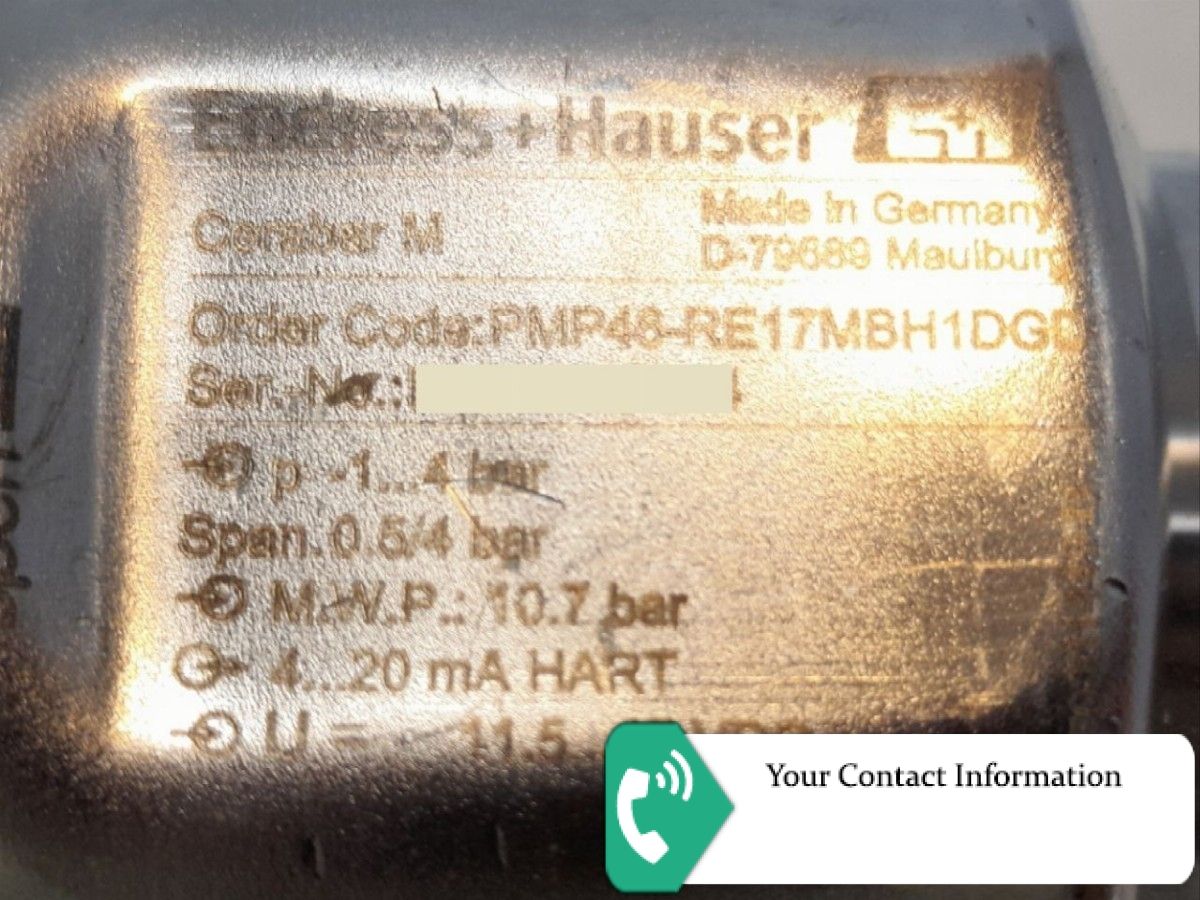

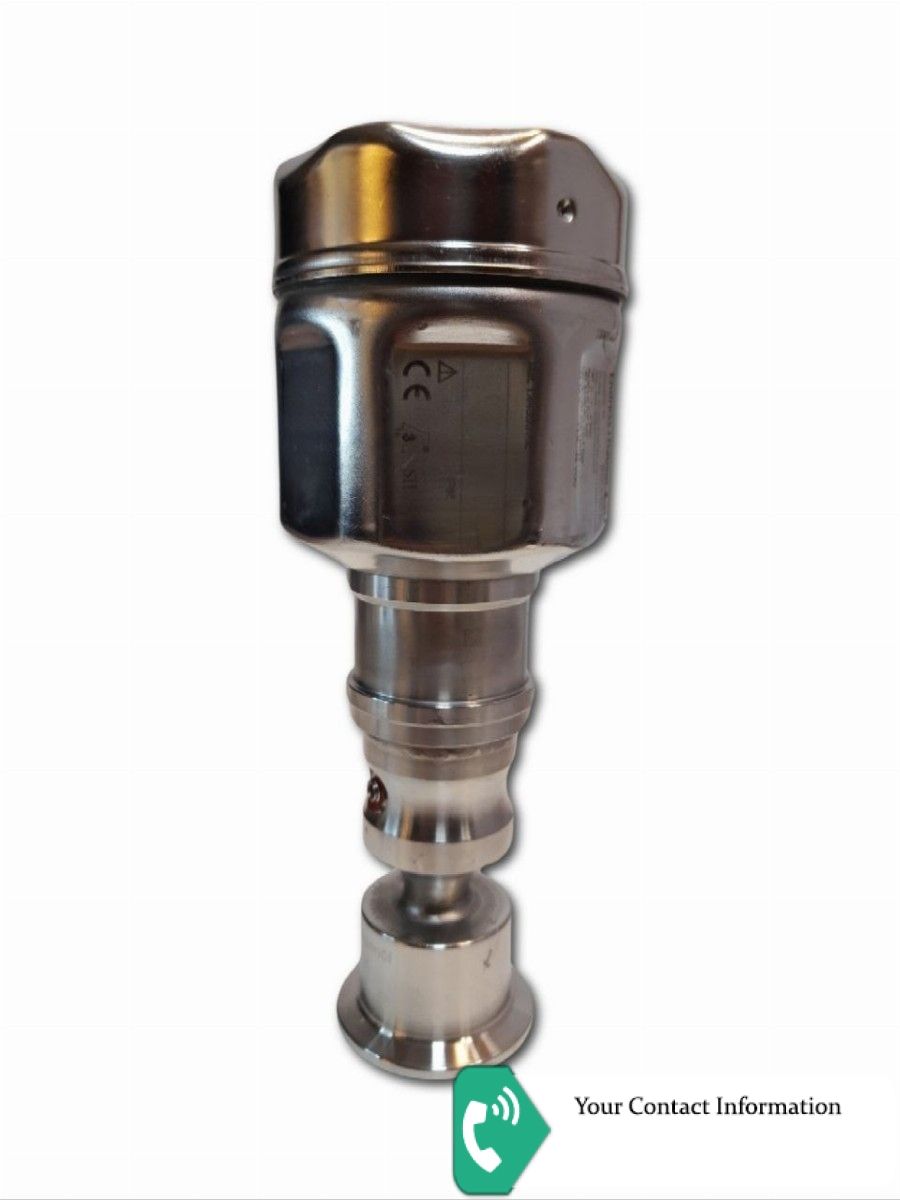

Cerabar M PMP46
PMP46-RE17MBH1DGD
Approval: R = Non-hazardous area
Housing; Electrical Connection: E1 = F15 316L Hygiene; gland M20, IP66
Sensor Range; Sensor Overload Limit: 7M = -1/-100/-15...4bar/400kPa/60psi; 16bar/1.6MPa/240psi
Calibration; Unit: B = 0.2% see additional spec.
Output; Operating: H = 4-20mA HART; w/o display
Additional Option: 1 = Basic version
Process Connection: DG = Tri-Clamp ISO2852 DN38 1-1/2", 316L, DIN32676 DN40, EHEDG, 3A
Transmitter Mounting; Fill Fluid: D = Direct; Vegetable oil (FDA)
