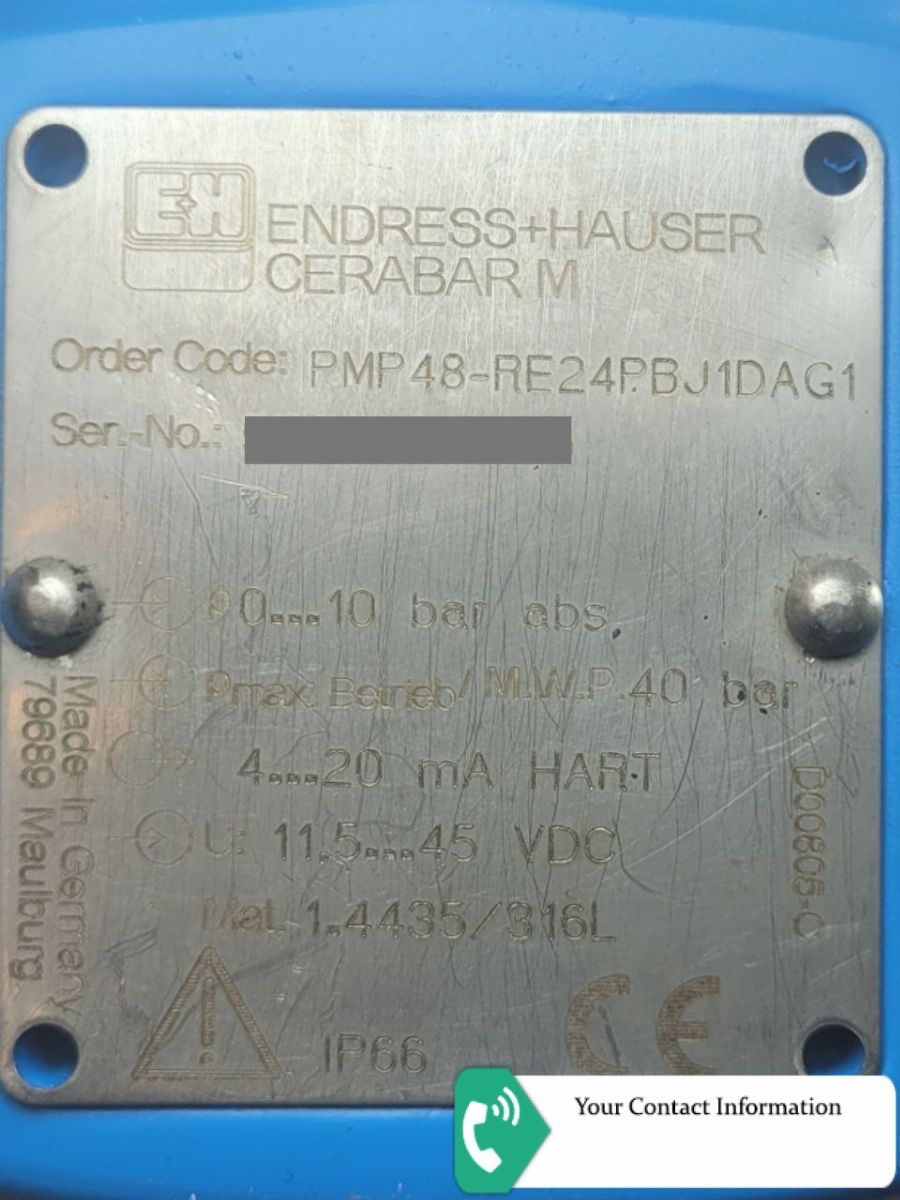

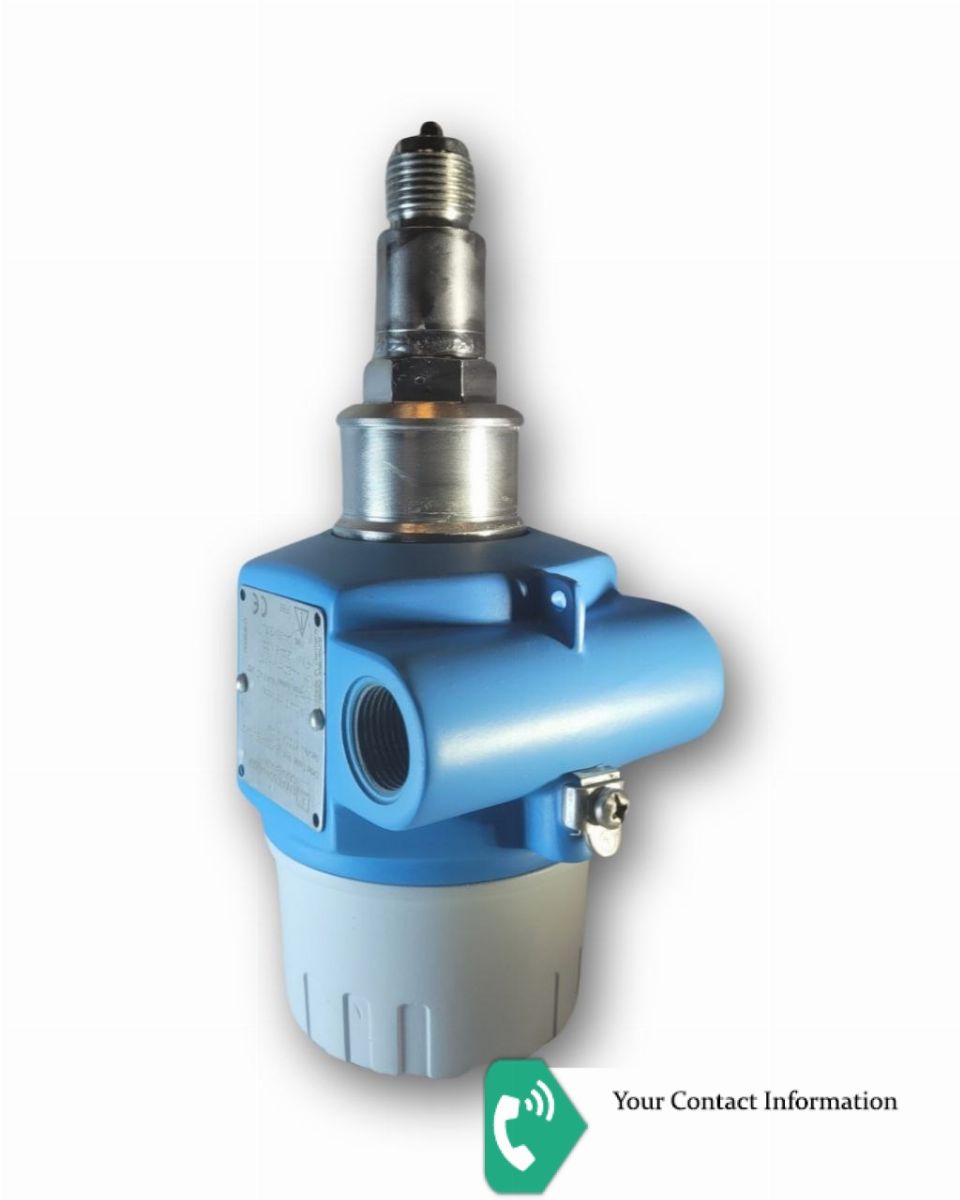

Cerabar M PMP48
PMP48-RE24PBJ1DAG1
Approval: R = Non-hazardous area
Housing; Electrical Connection: E2 = F18 Alu; gland M20, IP66
Sensor Range; Sensor Overload Limit: 4P = 0...10bar/1MPa/150psi absolute; 40bar/4MPa/600psi
Calibration; Unit: B = 0.2% see additional spec.

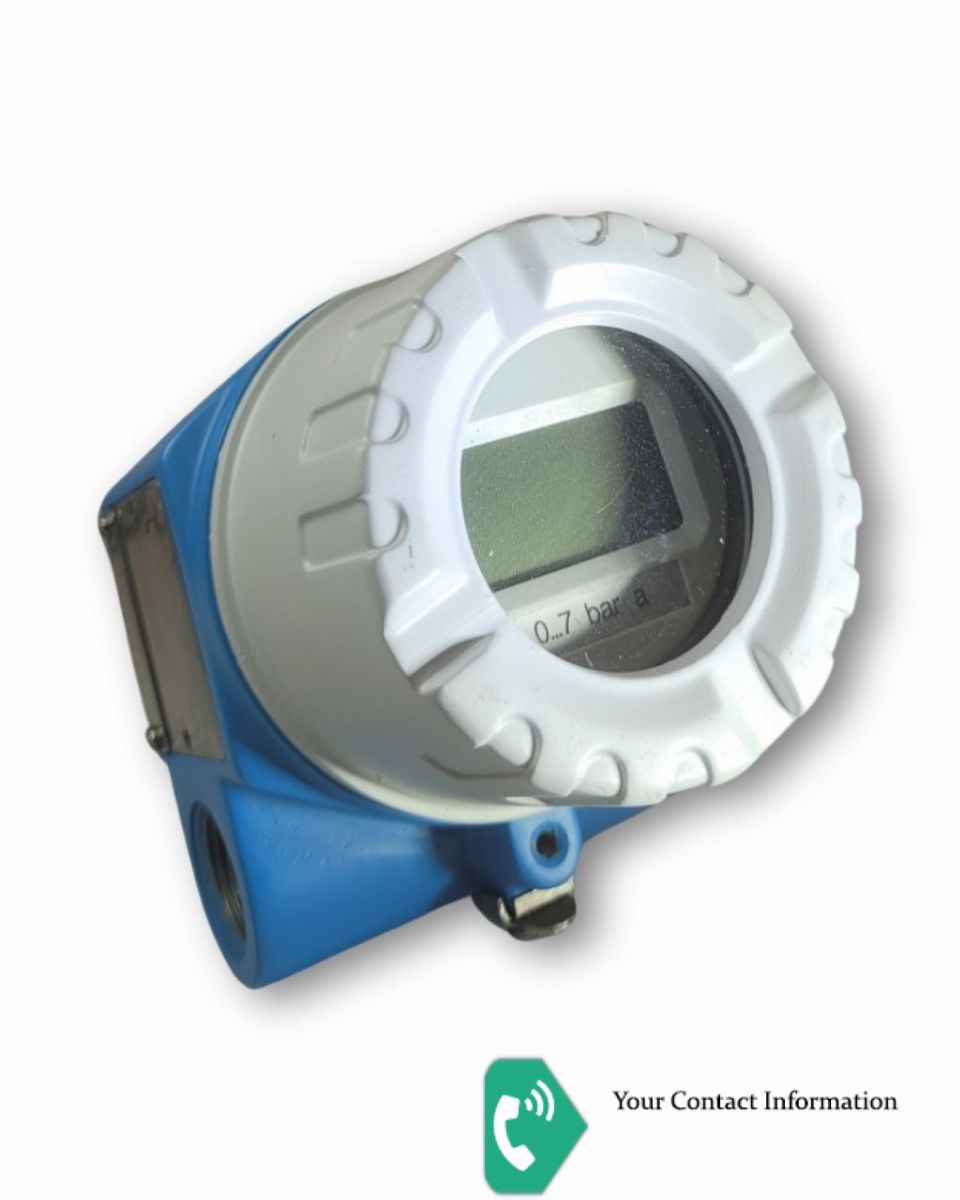

Output; Operating: J = 4-20mA HART; display 4-digit + bargraph
Additional Option: 1 = Basic version
Process Connection: DA = Thread ANSI NPT1/2, 316L, separator
Transmitter Mounting; Fill Fluid: G = Temp. isolator 100mm; High temp. oil
Membrane Material: 1 = 316L
