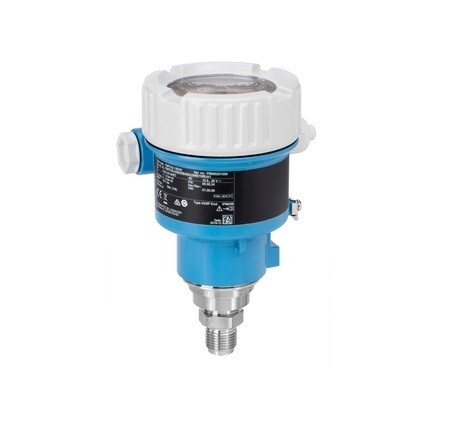

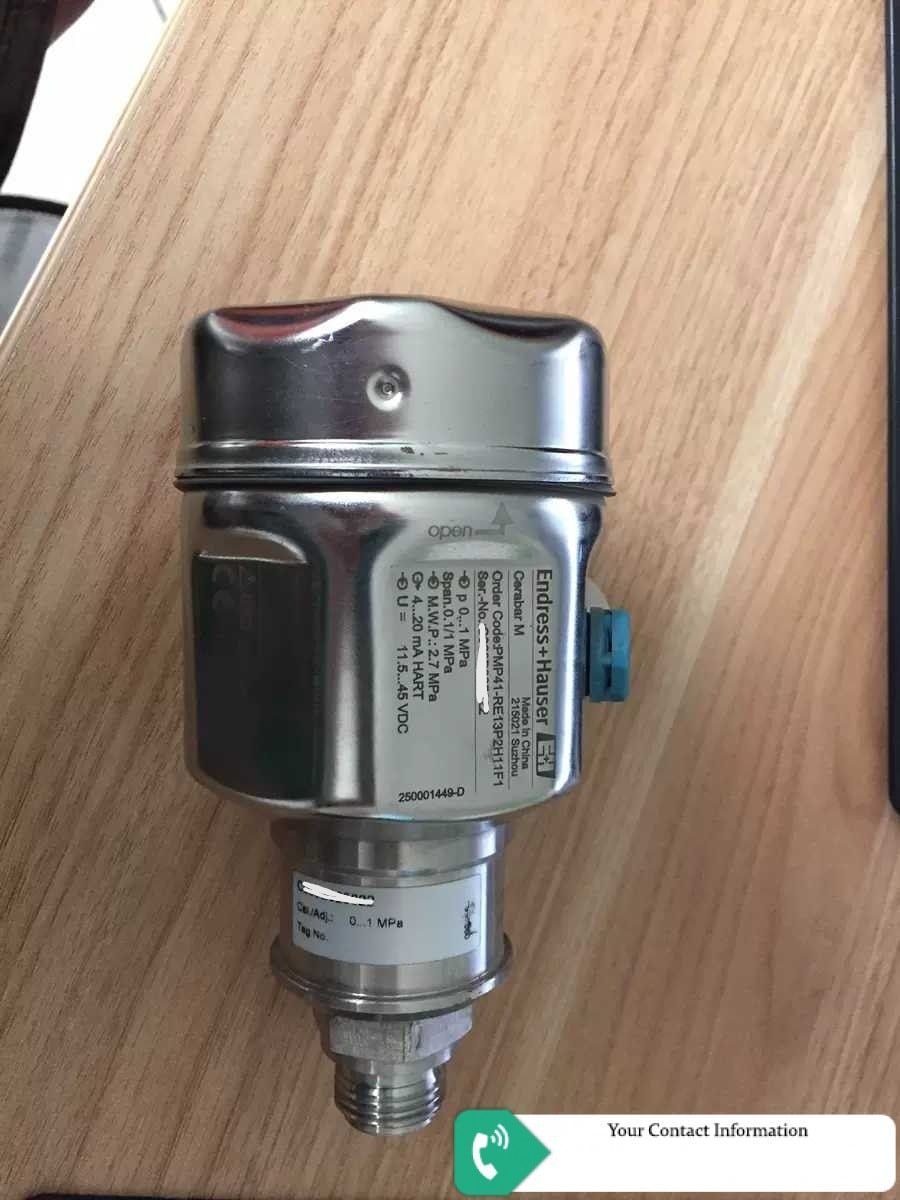

Pressure transmitter
BA=Approval: ATEX/IEC II 1G Ex ia IIC T6 Ga
BA=Output: 2-wire 4-20mA HART
C=Display; Operation: Segment display w/o buttons
B=Housing; Material: Single compartment; Alu, coated
B=Electrical Connection: Gland M20, brass nickel plated, IP66/68 NEMA Type 4X/6P
6=Pressure Type: Gauge
A=Application: Standard
A=Diaphragm Seal Type: W/o
3W=Sensor Range: 400bar/40MPa/6000psi
J=Calibration; Unit: Customized linear; see additional spec.
A1=Process Connection, Sealing Surface: Thread ASME B1.20.1, NPT
VWJ=Process Connection: MNPT1/2, hole 11.4mm, 316L
A=Membrane Material; Application:316L; standard
1=Fill Fluid: Silicone oil; standard
