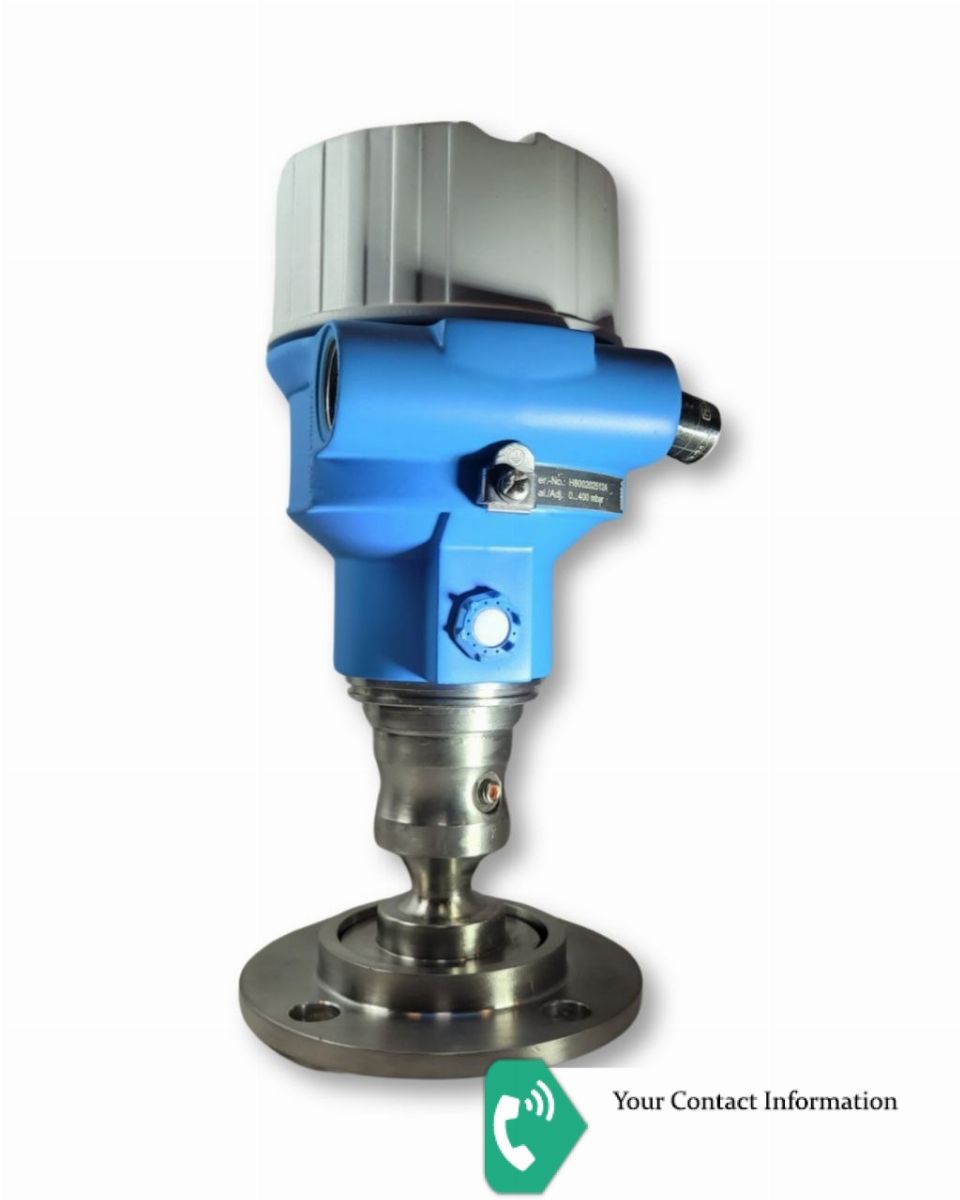

Cerabar M PMP55
PMP55-AA21JA1FGBTIJA1A+AA
Approval: AA = Non-hazardous area
Output: 2 = 4-20mA HART

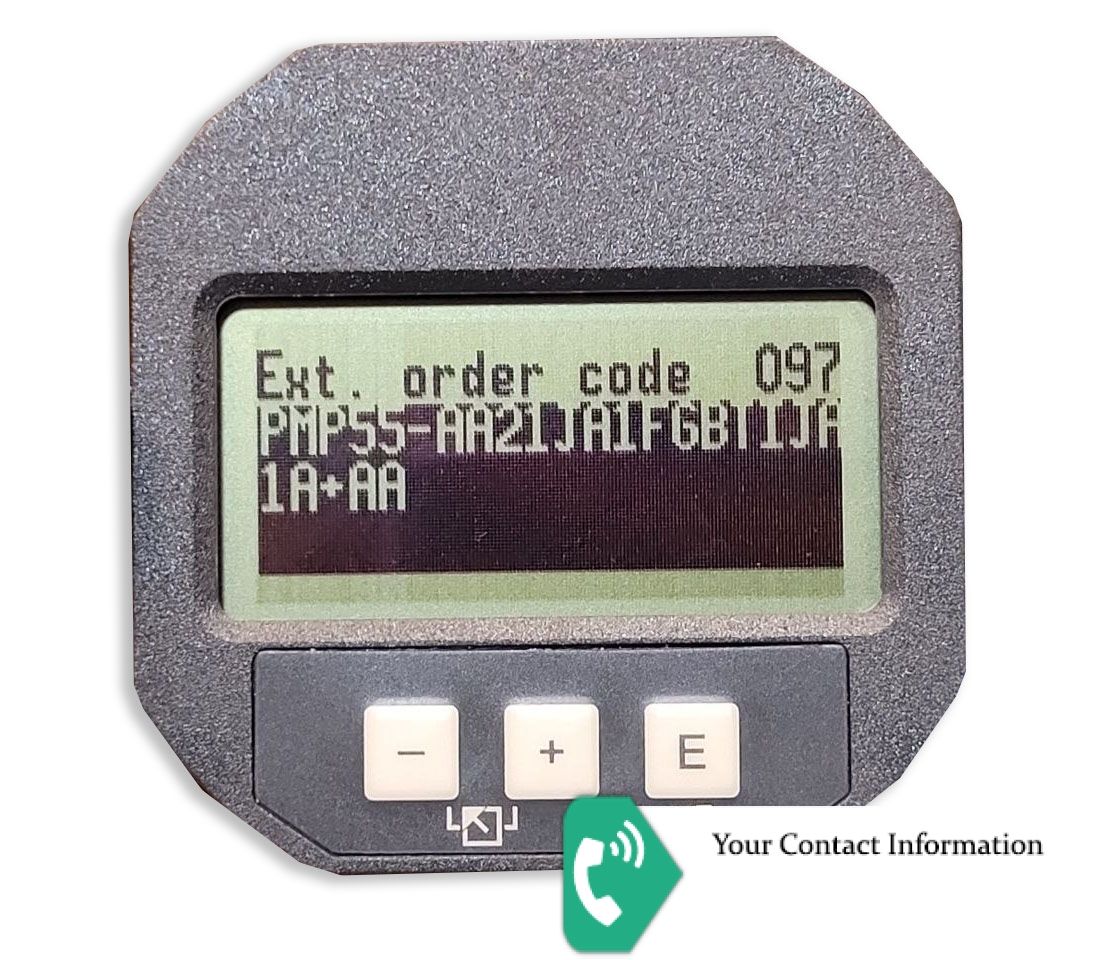

Display, Operation: 1 = LCD, push button on display/electronics

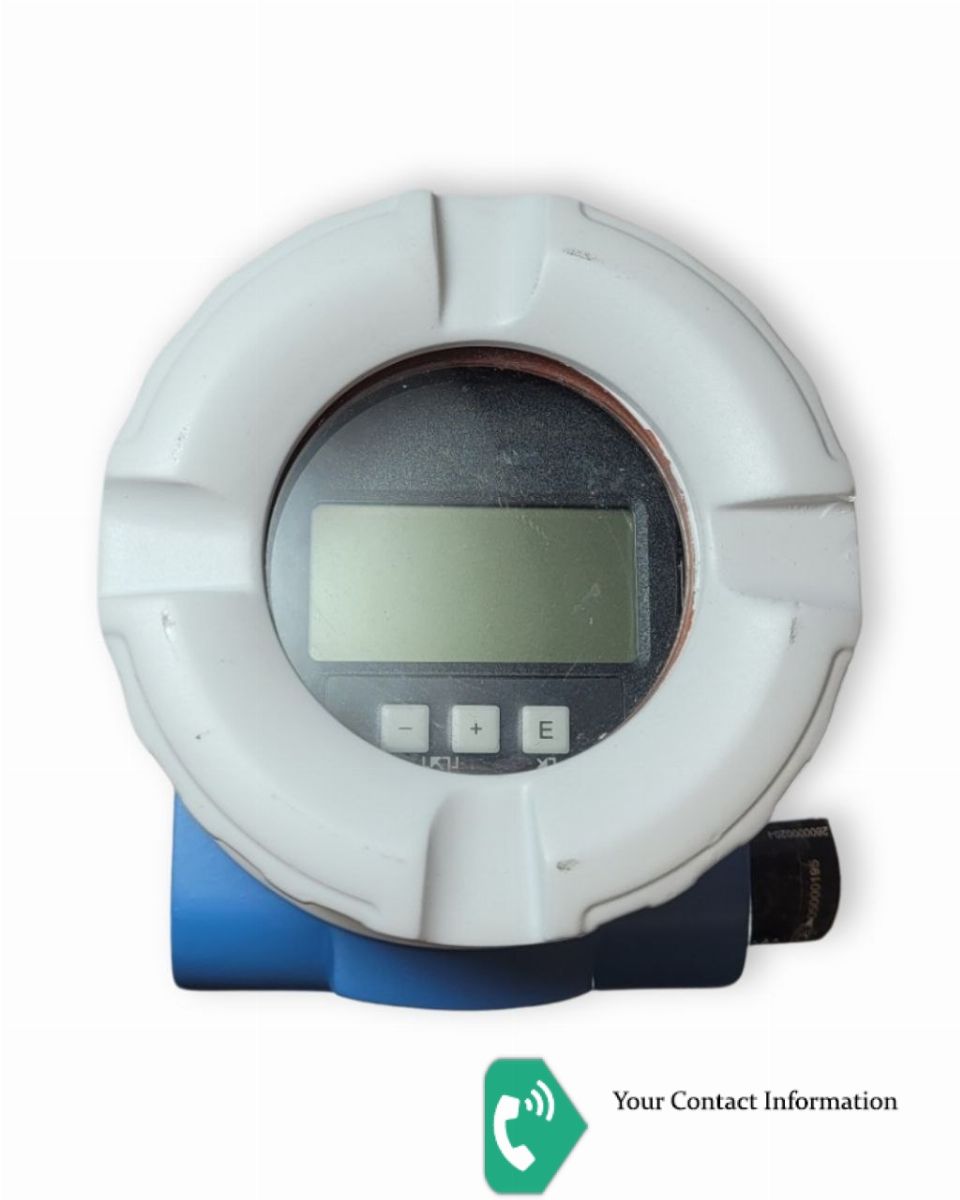

Housing: J = F31 Alu, glass window
Electrical Connection: A = Gland M20, IP66/68 NEMA4X/6P
Sensor Range: 1F = 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O overload: 6bar/600kPa/90psi
Reference Accuracy: G = Standard
Calibration; Unit: B = Sensor range; mbar/bar

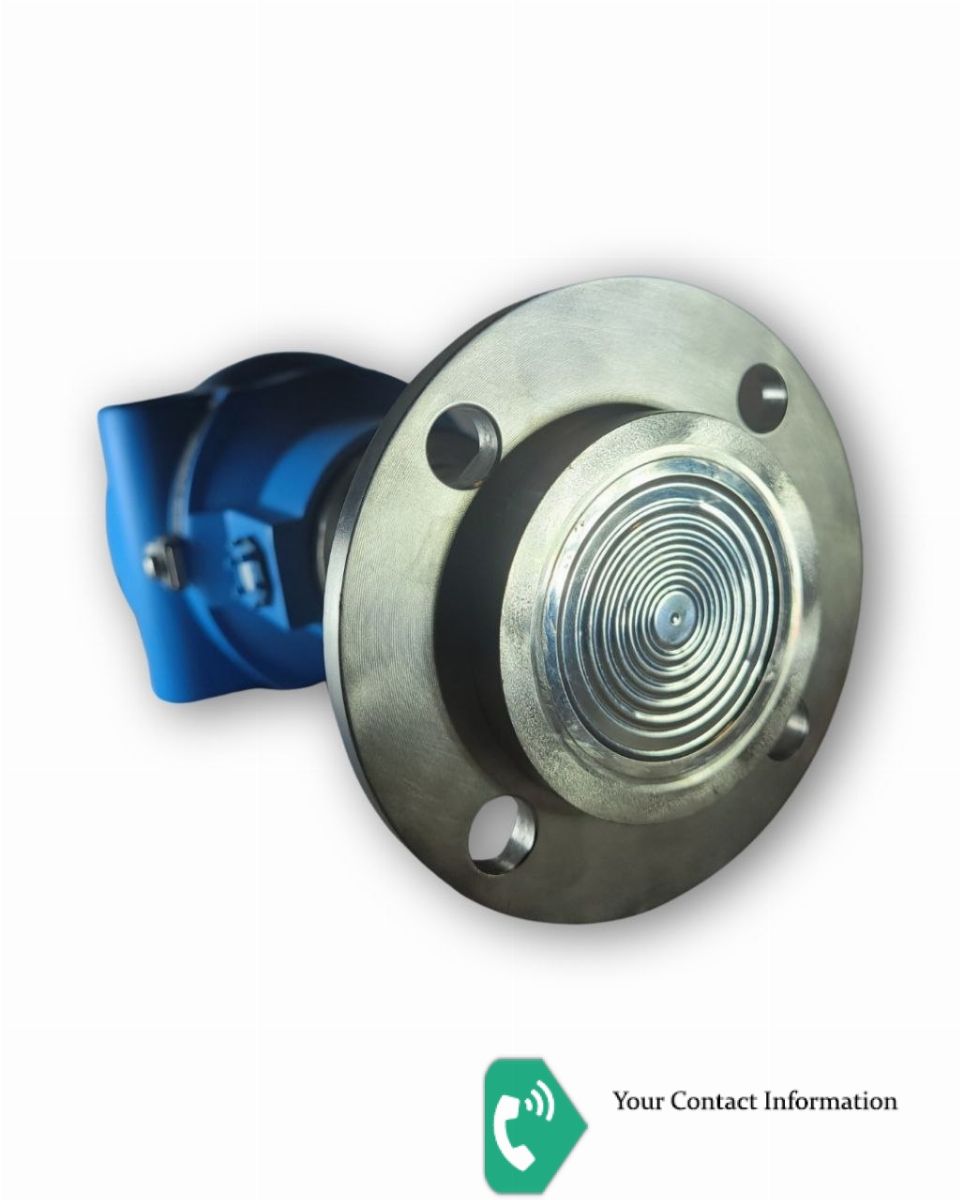

Process Connection: TIJ = DRD DN50 65mm PN25, 316L
Membrane Material: A = 316L
Fill Fluid: 1 = Silicone oil
Diaphragm Seal Connection: A = Direct
Additional Operation Language: AA = English
