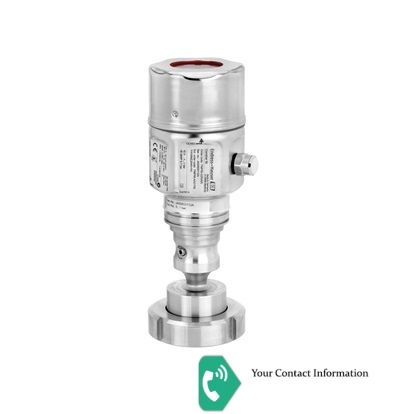

Cerabar M PMP55
PMP55-47DT4/125
AA=Approval: Non-hazardous area
2=Output: 4-20mA HART
1=Display, Operation: LCD, push button on display/electronics
J=Housing: F31 Alu, glass window
A=Electrical Connection: Gland M20, IP66/68 NEMA4X/6P
1P=Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O overload: 40bar/4MPa/600psi
G=Reference Accuracy: Standard
J=Calibration; Unit: Customised pressure; see additional spec.
AFJ=Process Connection: NPS 2" Cl.150 RF, 316/316L flange ASME B16.5
D=Membrane Material: Tantalum
1=Fill Fluid: Silicone oil
D=Diaphragm Seal Connection: ..... m capillary
AA=>Additional Operation Language: English
JA=>>Test, Certificate: 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
PA= >>Accessory Enclosed: Mounting bracket, wall/pipe, 316L
Z1=>>Marking: Tagging (TAG)
