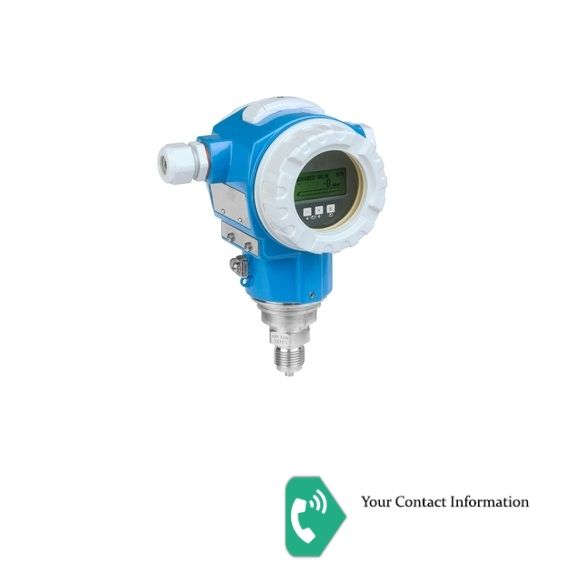

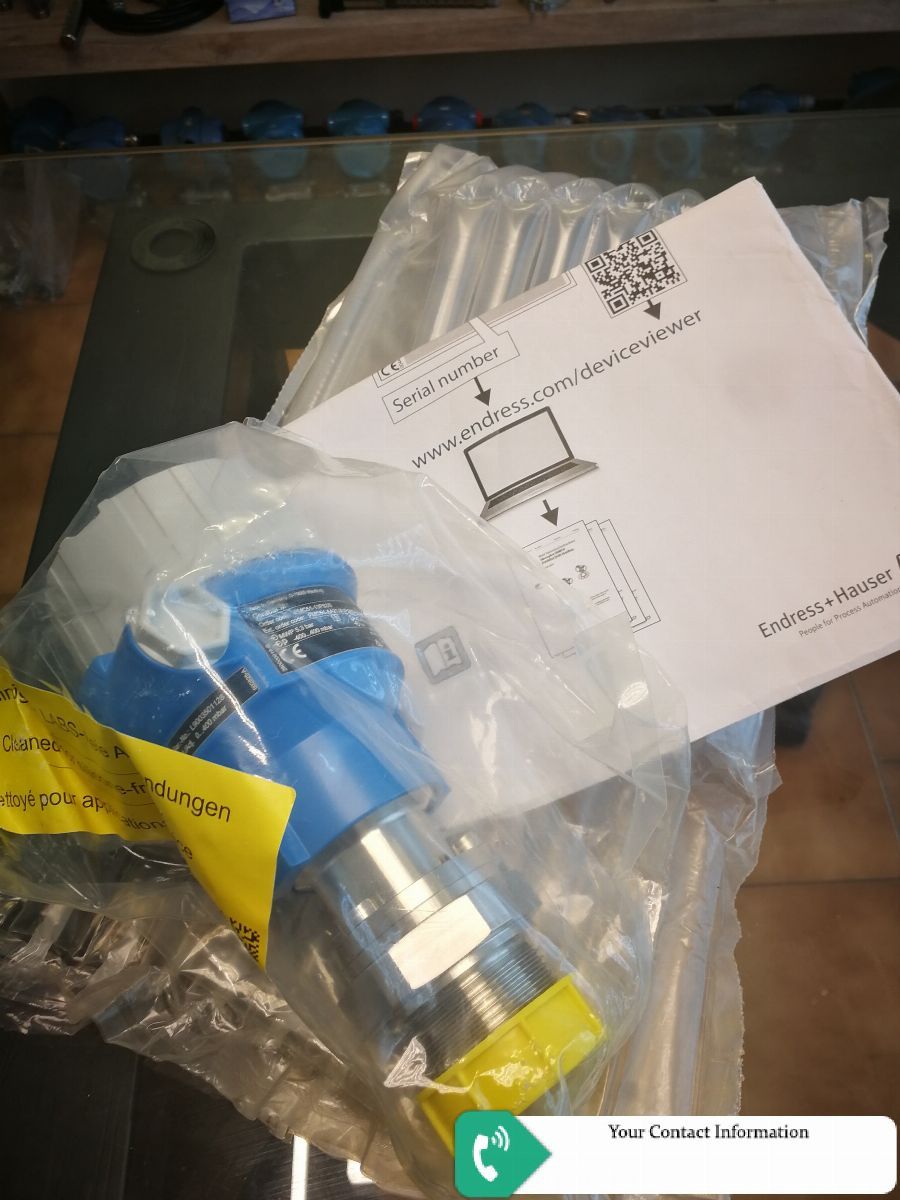

Pressure transmitter
Cerabar S PMP71
1=Approval: ATEX II 1/2G Ex ia IIC T6
B=Output; Operating: 4-20mA HART; inside + LCD
A=Housing; Cover Sealing; Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
1H=Sensor Range; Sensor Overload Limit: 1bar/100kPa/15psi gauge; 10bar/1MPa/150psi
E=Calibration; Unit: Customized pressure; see additional spec.
1=Membrane Material: 316L
RD=Process Connection:Thread ANSI MNPT1/2 hole, 316L
A=Fill Fluid: Silicone oil
B=Additional Option 1: 3.1 material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
A=Additional Option 2: Not selected
Z1=>>Marking: Tagging (TAG), see additional spec.
