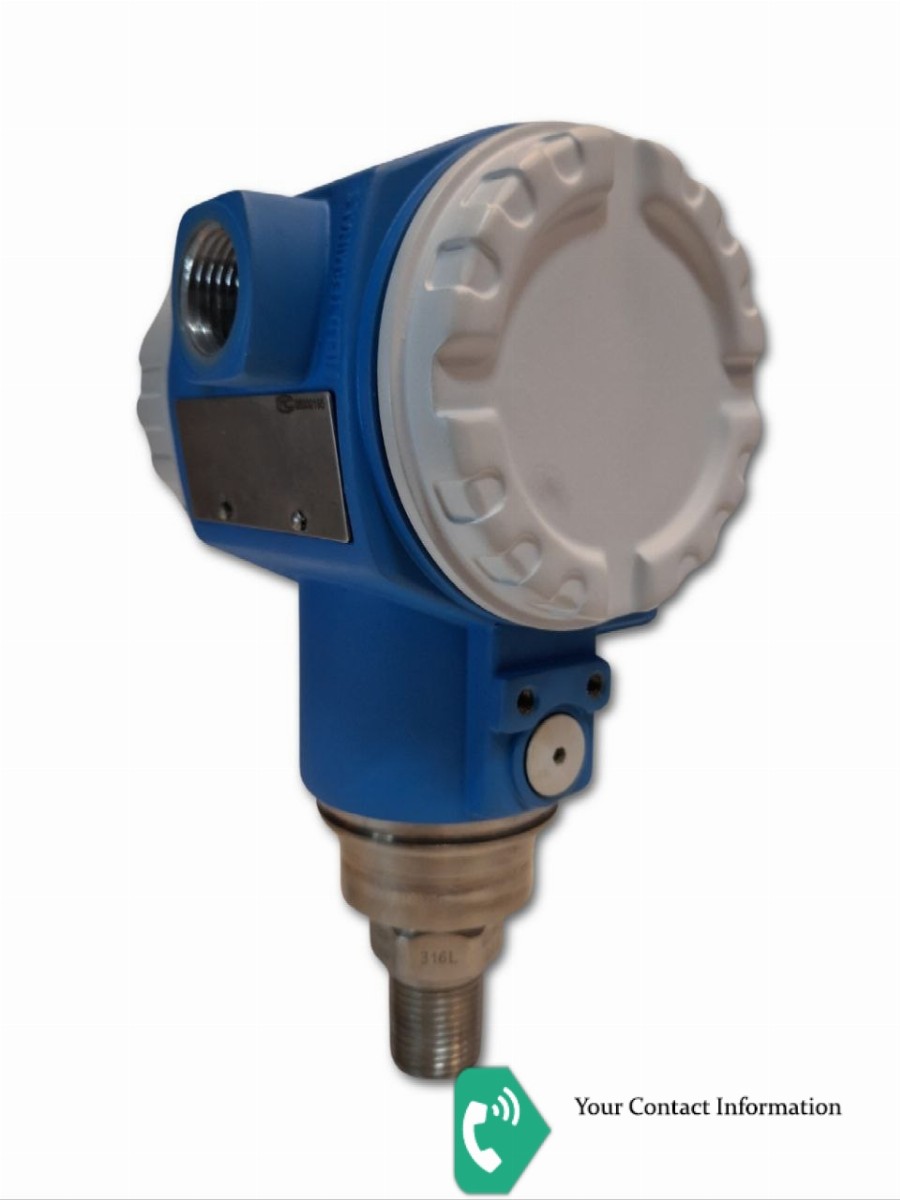

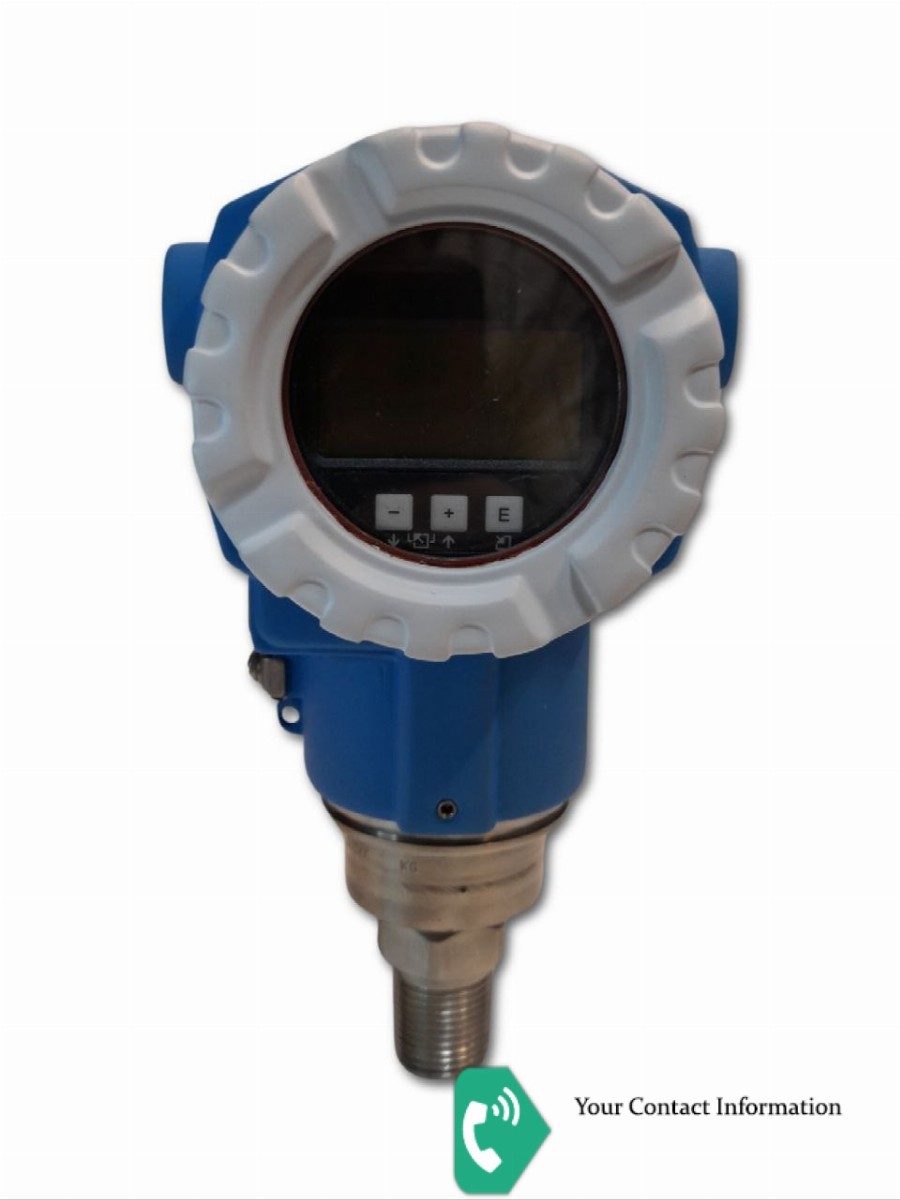

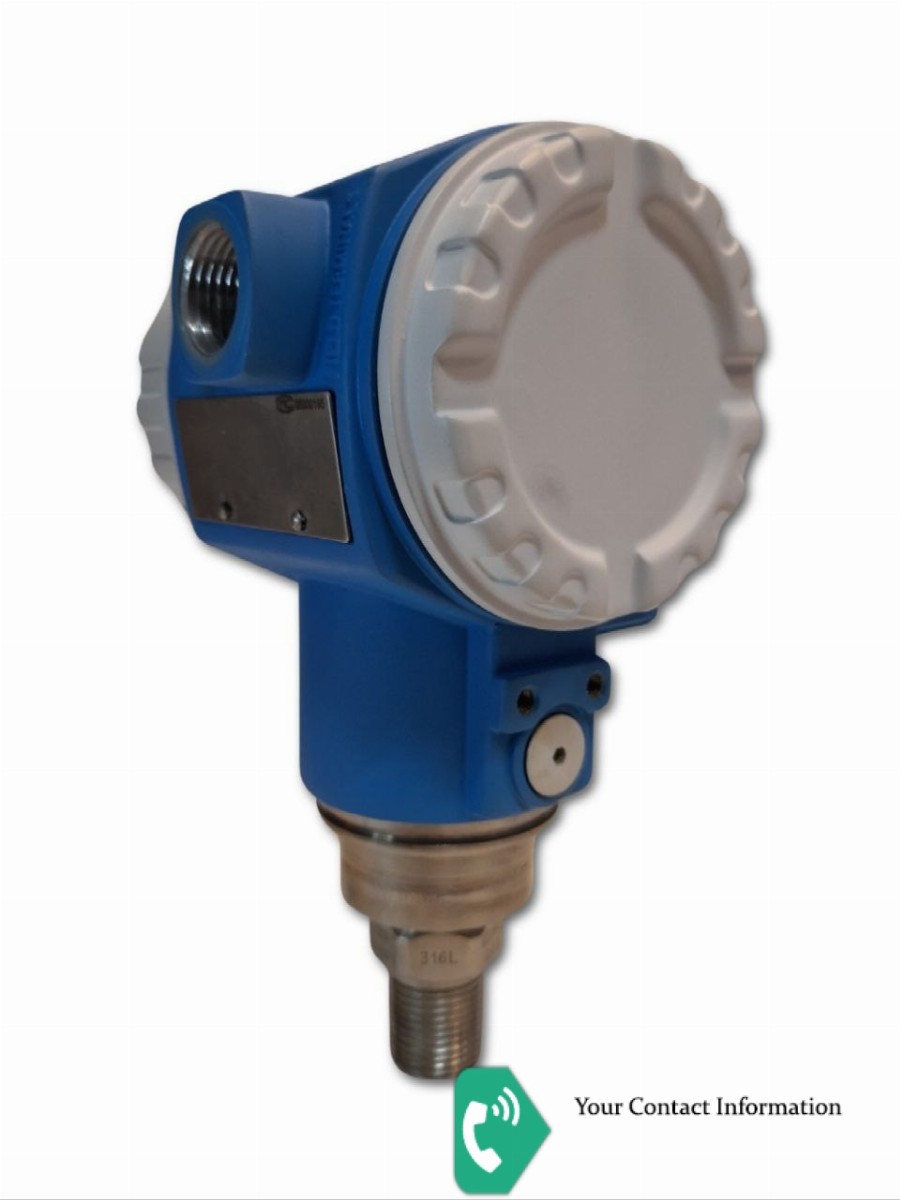

Cerabar S PMP71

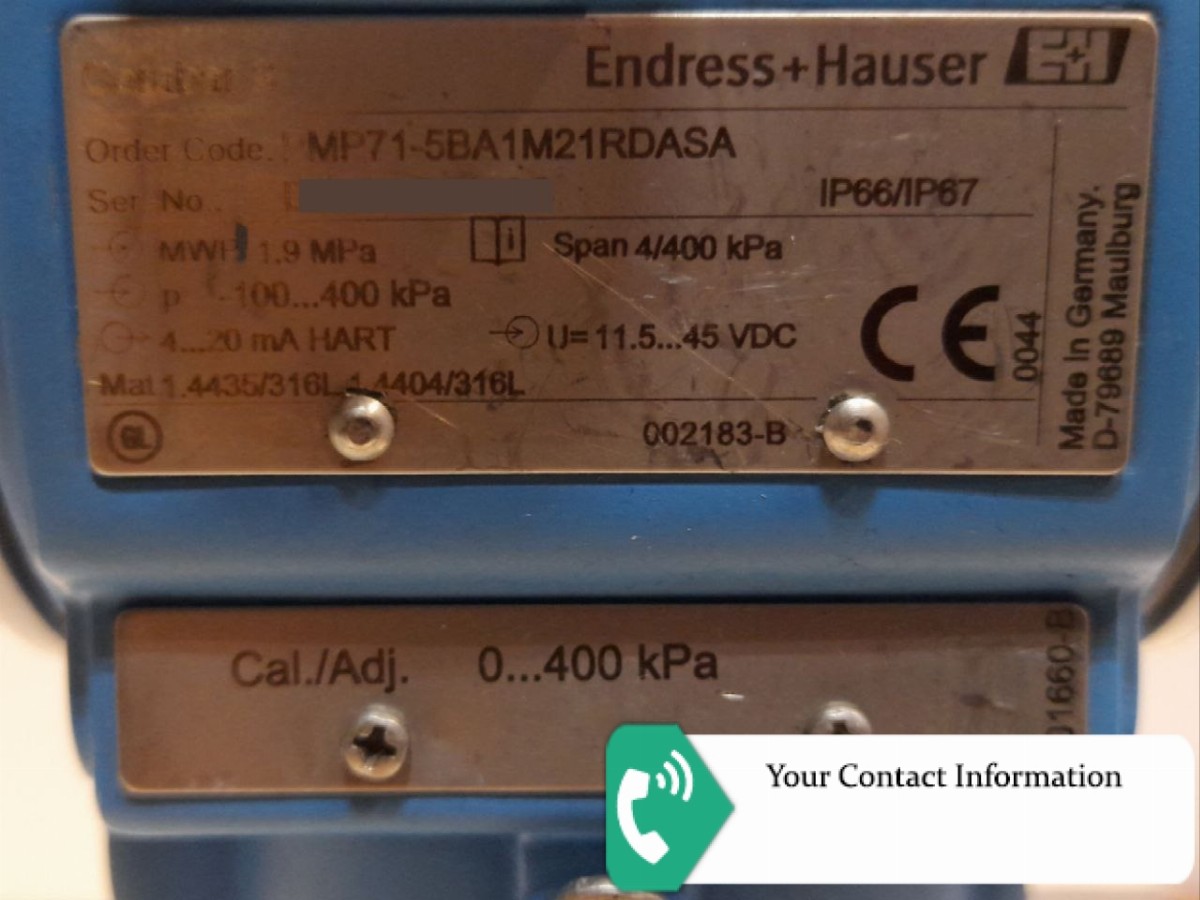

PMP71-5BA1M21RDASA
Approval: 5 = ATEX II 2G Ex db IIC T6 Gb
Output; Operating: B = 4-20mA HART; inside + LCD
Housing; Cover Sealing; Cable Entry: A = T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Sensor Range; Sensor Overload Limit: 1M = 4bar/400kPa/60psi gauge; 28bar/2800kPa/420psi
Calibration; Unit: 2 = Sensor range; kPa/MPa
Membrane Material: 1 = 316L
Process Connection: RD = Thread ANSI MNPT1/2 hole, 316L
Fill Fluid: A = Silicone oil
Additional Option 1: S = GL/ABS marine approval
Additional Option 2: A = Not selected
