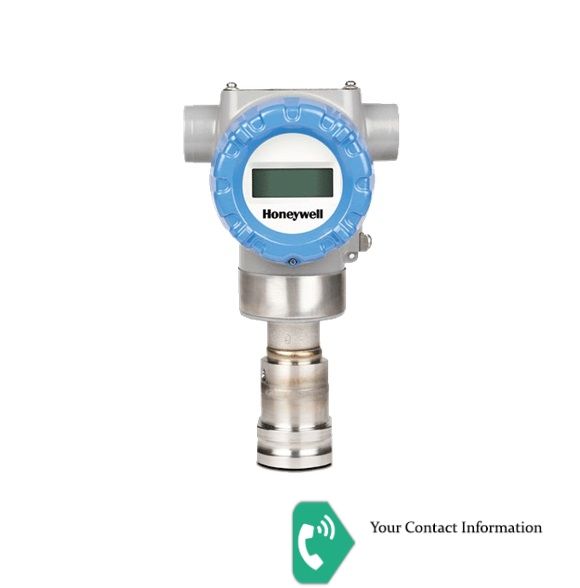

Gauge Pressure Transmitter
STG74L=Model :Gauge In-Line (URL/Max Span:500 (35) , LRL:-14.7 (-1.0) , Min Span : 5 (.35) , Units: psi (bar) )
E=(Process Head/Reference Head Material:316 Stainless Steel / 316 Stainless Steel ,Barrier Diaphragm Material:316L SS / 1=Fill Fluid
:Silicone Oil 200 / Gauge Pressure Transmitter
STG74L=Model :Gauge In-Line (URL/Max Span:500 (35) , LRL:-14.7 (-1.0) , Min Span : 5 (.35) , Units: psi (bar) )
E=(Process Head/Reference Head Material:316 Stainless Steel / 316 Stainless Steel ,Barrier Diaphragm Material:316L SS / 1=Fill Fluid
:Silicone Oil 200 / H=Process Connection :1/2" NPT (male) /0=Bolt/Nuts Materials: None / 0=Vent/Drain & Type/Location : None /0= Gasket Materials : None / 1=Head/Connect Orientation : Standard / C=Approvals: C ATEX Intrinsically Safe (II 1 G Ex ia IIC T4 Ga Material : Polyester Powder Coated Aluminum / D=Electronic Housing Material & Connection Type :Connection : M20 Lightning Protection : Yes / F=Output / Protocol : Foundation Fieldbus / C=Customer Interface SelectionS: Ext. Zero, Span & Config Buttons : Yes / 1= Application Software : Standard Diagnostics
/ 6=Output Limit, Failsafe & Write Protect Settings: Write Protect : Disabled / S=General Configuration: Factory Standard / B=Accuracy and Calibration :Accuracy : Standard (0.065 % of calibrated span) Calibrated Range : 85205-AHC-IN-DS-158 / 3= Mounting Bracket : Angle Bracket, 316 SS / 0= Customer Tag : None / A0 =Unassembled Conduit Plugs & Adapters : No Conduit Plugs or Adapters Required / FX : EN10204 Type 3.1 Material Traceability / F1: Calibration Test Report & Certificate of Conformance/ TP: Over-Pressure Leak Test Certificate (1.5X MAWP) Factory / 0000: Factory Identification
