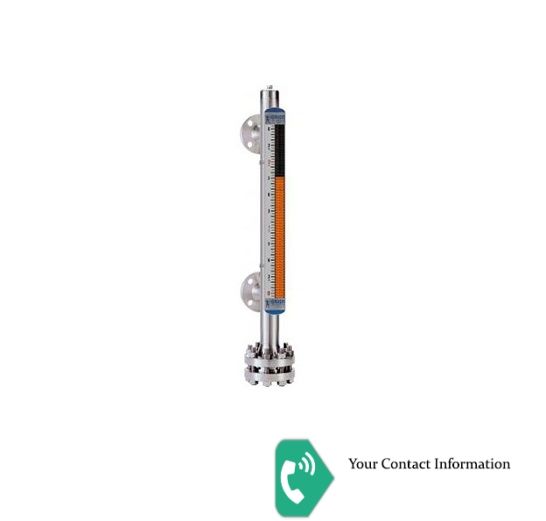

1=Product Name : Orion Atlas Magnetic Level Indicator
M=Unit of Measurement : Metric
1=Mounting Configuration & Chamber Construction : Connection orientation : Side-Side Chamber top : Welded end cap Chamber botom : Flange
B=Chamber / Flange Rating :300#
A= Material of Construction : 316/316L stainless steel chamber
3=Construction Grade : ASME B31.3 for Process Piping Standard - Non-PED
A=Chamber Flange(s) Type : RF slip-on flange, ASME
A=Process Connection Type : RF slip-on flange, ASME
D= Process Connection Size :1 1⁄2 inch
C=Gasket Style for Chamber Flange(s) : Spiral wound with graphite filler, inner ring matching chamber material (SS316) and carbon steel outer ring C=Chamber Bolting Material : 316 Stainless steel class 2; A193Gr.B8M Class 2/A194Gr.8M
1=Vent Size: 1/2"
1=Vent Type : Threaded NPT-F (female) with plug AISI SS316
1=Drain Size : 1/2"
1=Drain Type : Threaded NPT-F (female) with plug AISI SS316
N=Chamber Modification for Mounting of Optional Switches and/or Transmitter: No switch or transmitter added
N=Insulation Options : None
3=Measurement Type/Indication Style : Red / white metal flags
G=Indicator Housing Material & Measuring Scale : Wide View Stainless Steel indicator Meter / Millimeter Measurement
2=Chamber Code : 2" S40
