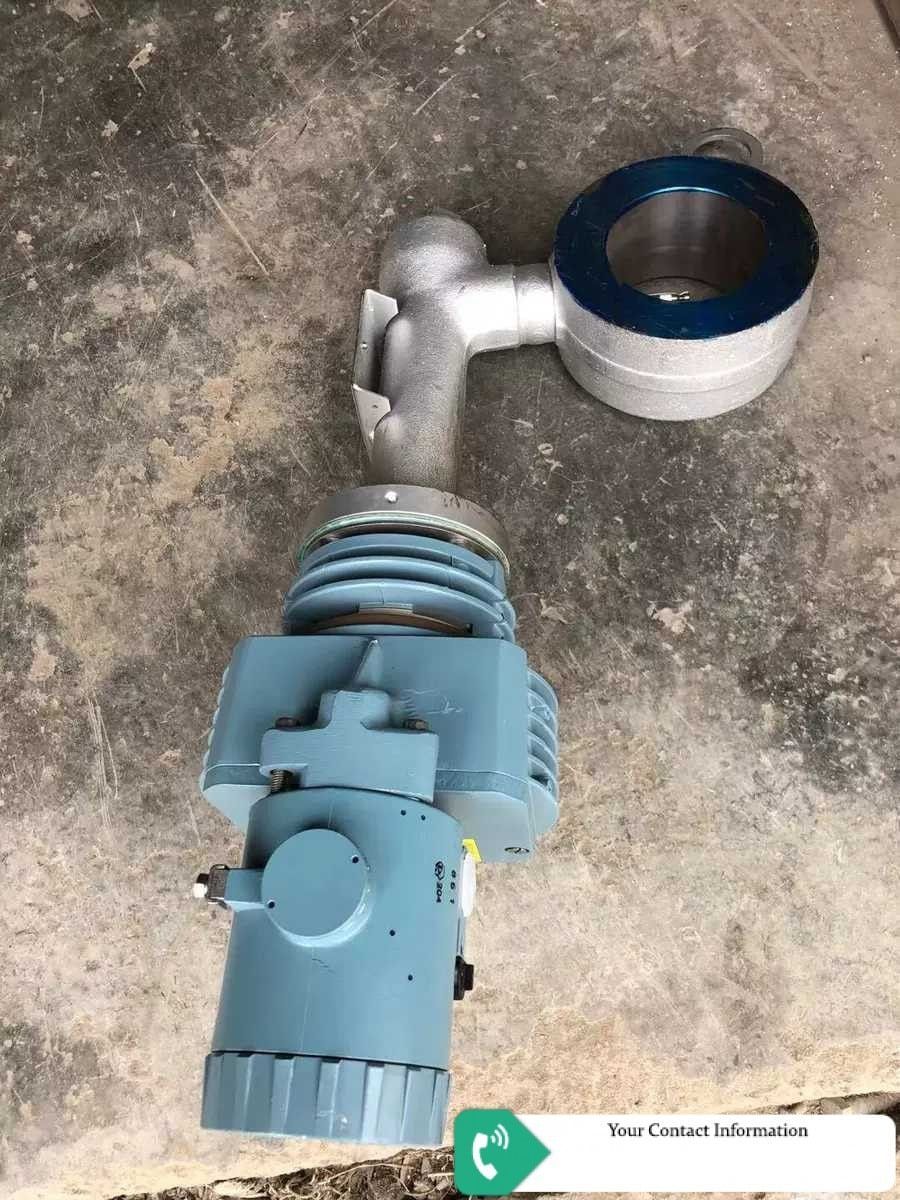

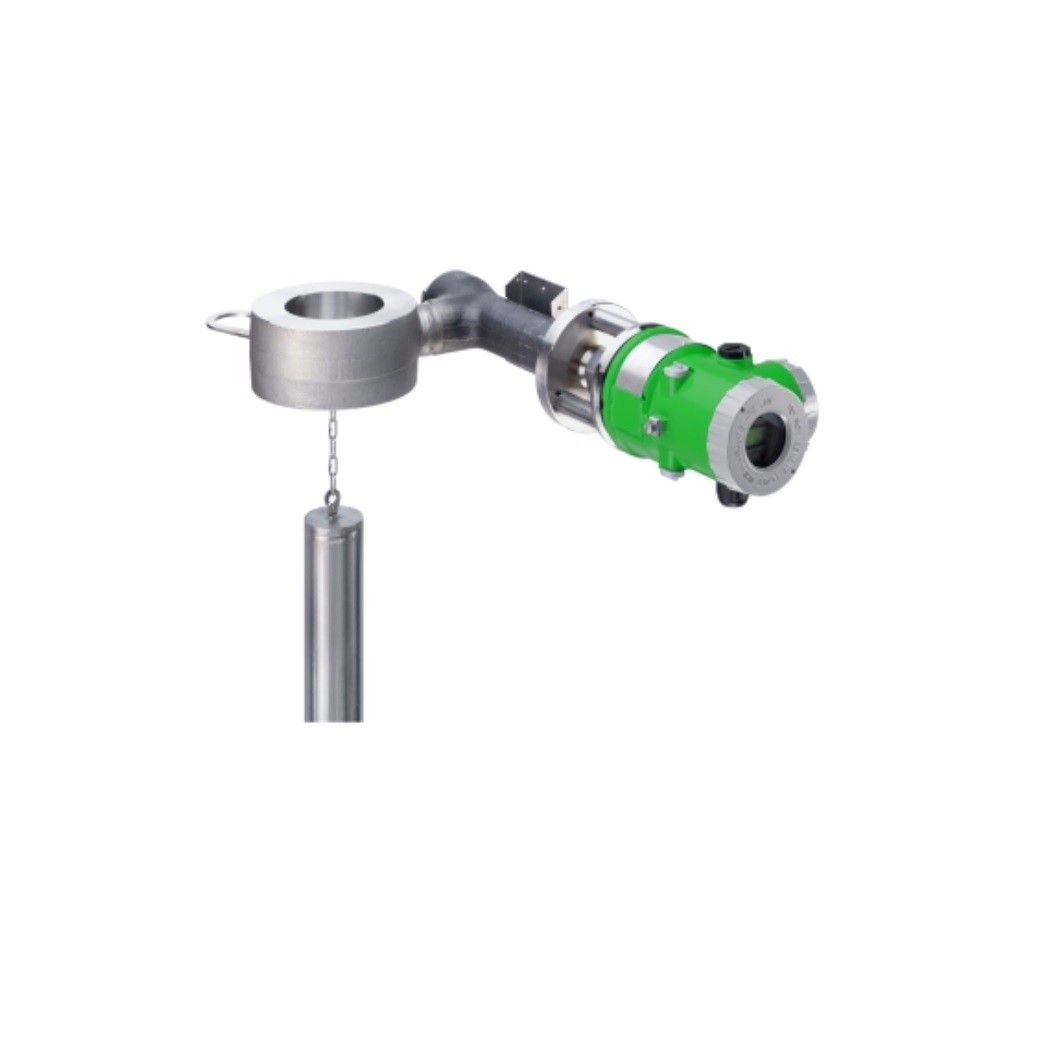

ntelligent Buoyancy Transmitter 244LD with Torque Tube
S=Wafer Body Material (Process wetted) : 1.4404 equivalent to 316L / 1.4435, application from –60°C to +400°C (material is 1.4435 when Wafer Body Pressure Rating codes H1and H2 selected)
C=Torque Tube Material (Process wetted): Hastelloy C
3=Wafer Body Flange Size (Nominal size): 3 inch
R2=Wafer Body Pressure Rating & Contact Face : ANSI Class 900 (300/600/900) RF/RF
R=Wafer Body Mounting Direction: (Amplifier to body) : Right Hand mounted
B=Version: Base VERSION - TRANSSTAR - (244LD)
M=Cable Entry : M20x1.5 without cable gland
H=Communication: HART
1C6= Electrical Classification :ATEX intrinsic safe Zone 1, IIC T6 (HART or FOUNDATION Fieldbus)
F=Tag No. Labeling : Stainless Steel Label Fixed On Amplifier
