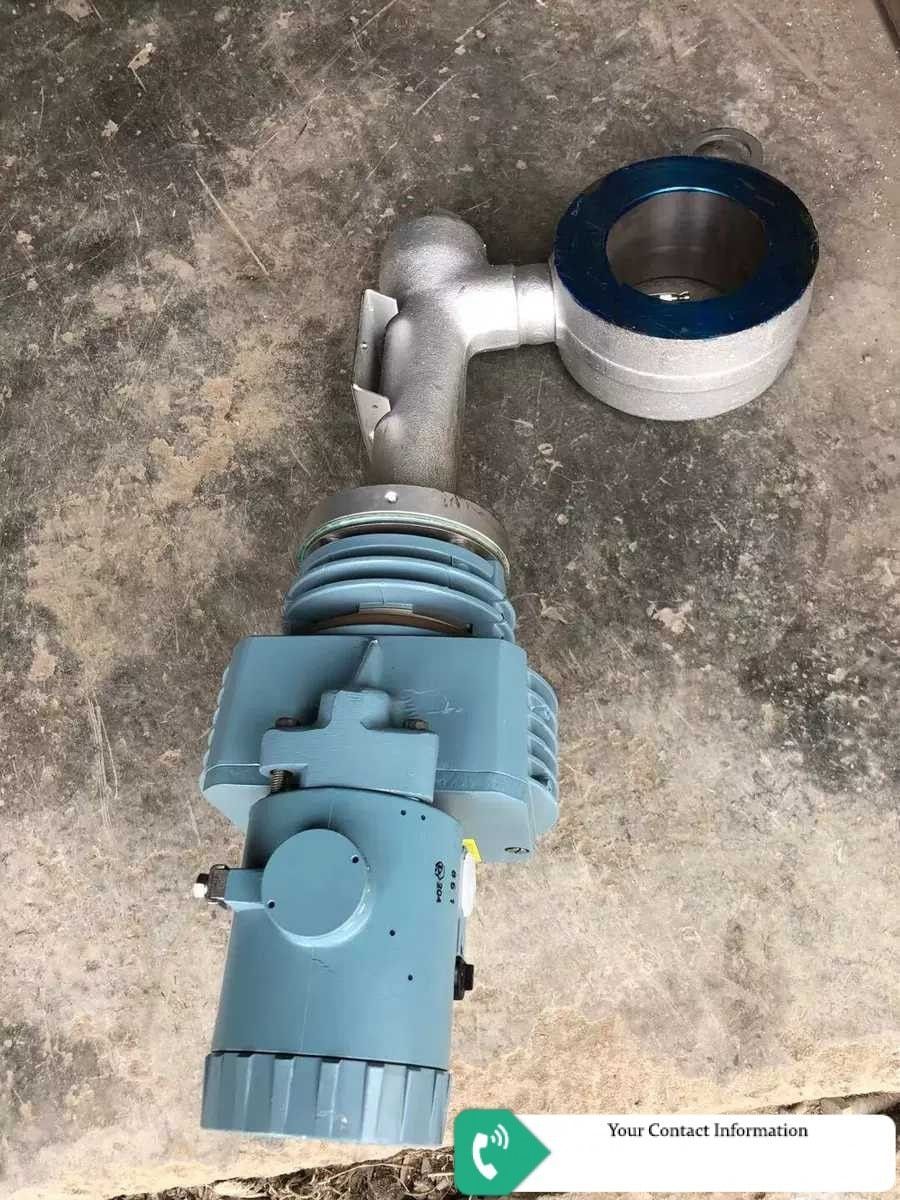

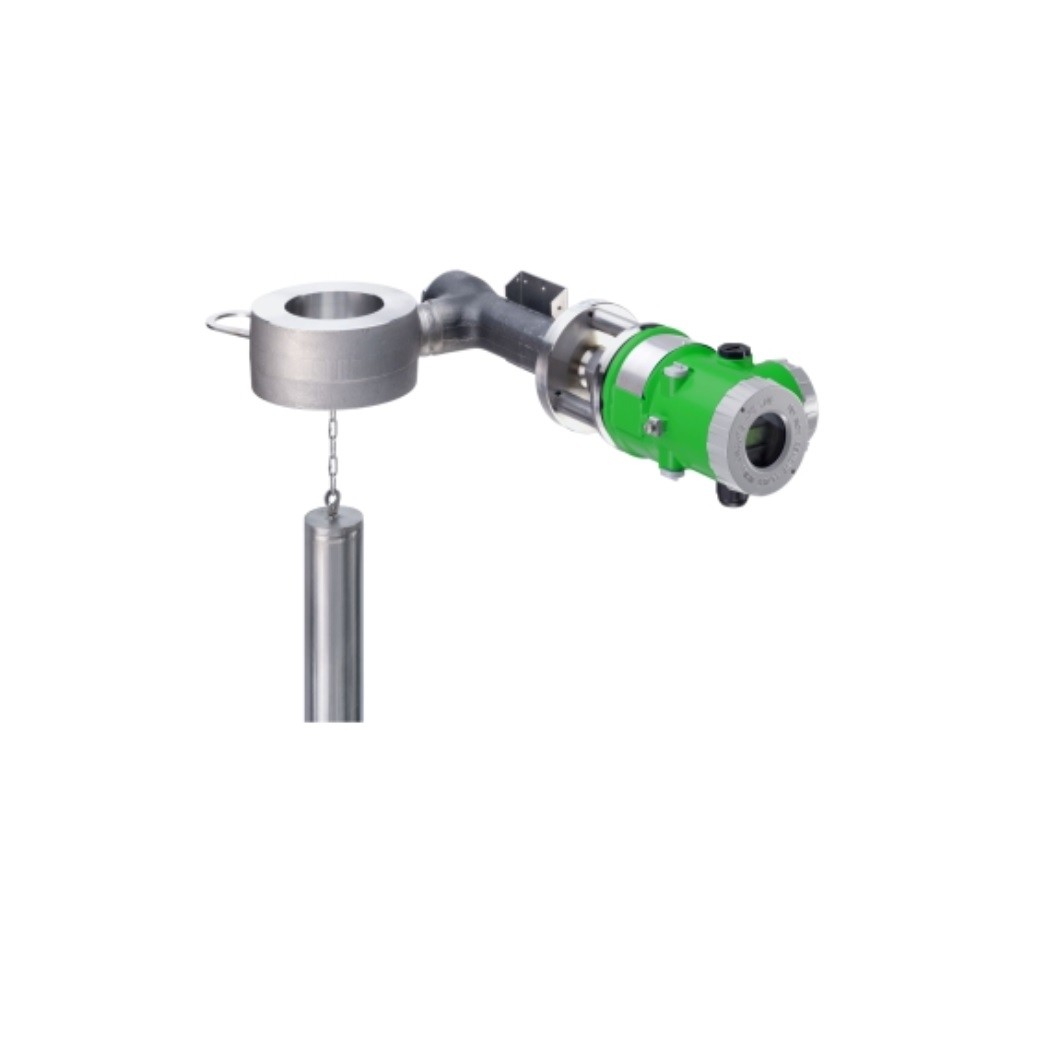

244LD = Intelligent Buoyancy Transmitter with Torque Tube
S=Wafer Body Material (Process wetted): 1.4404 equivalent to 316L / 1.4435, application from –60°C to +400°C (material is 1.4435 when Wafer Body Pressure Rating codes H1and H2 selected)
M=Torque Tube Material (Process wetted): Monel K500 - 2.4375
3=Wafer Body Flange Size (Nominal size): 3 inch
R2=Wafer Body Pressure Rating & Contact Face : ANSI Class 900 (300/600/900) RF/RF
R= Wafer Body Mounting Direction: (Amplifier to body) : Right Hand mounted
N=Version : Base VERSION - LEVELSTAR - (244LD)
M= Cable Entry : M20x1.5 without cable gland
H=Communication : HART
1C6= Electrical Classification : ATEX intrinsic safe Zone 1, IIC T6 (HART or FOUNDATION Fieldbus)
OPTIONS:
H= Housing Complete Stainless Steel without external Pushbuttons (not available with Wafer Body Material codes K)
M= External Pushbottons for Maintenance
L=Tag No. Labeling : Stainless Steel Label Fixed With Wire
