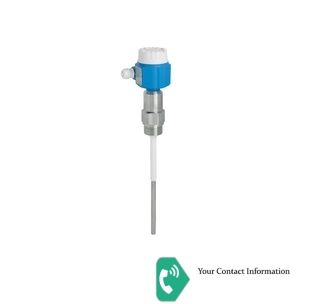

Liquicap M FTI51
K=Approval:ATEX II 1/2G Ex ia IIC, WHG, XA, electrostatic discharge, observe XA / 3=Inactive Length L3: ..... mm (<=500mm), 316L + active build-up protection 125mm, 316L / B=Active Probe Length L1; Insulation:..... mm, 16mm rod, 316L; PTFE / 2=Insulation: ..... mm L2, partial insulated (must be min. 25mm shorter than L1) / GGJ=Process Connection:Thread ISO228 G1-1/2, 316L, 100bar / 7=Electronics; Output:FEI57S; 2-wire PFM / 1=Housing:F15 316L hygiene IP66/67 NEMA4X / A=Cable Entry:Gland M20 (EEx d > thread M20) / 1=Type of Probe:Compact / A=Additional Option:Basic version
