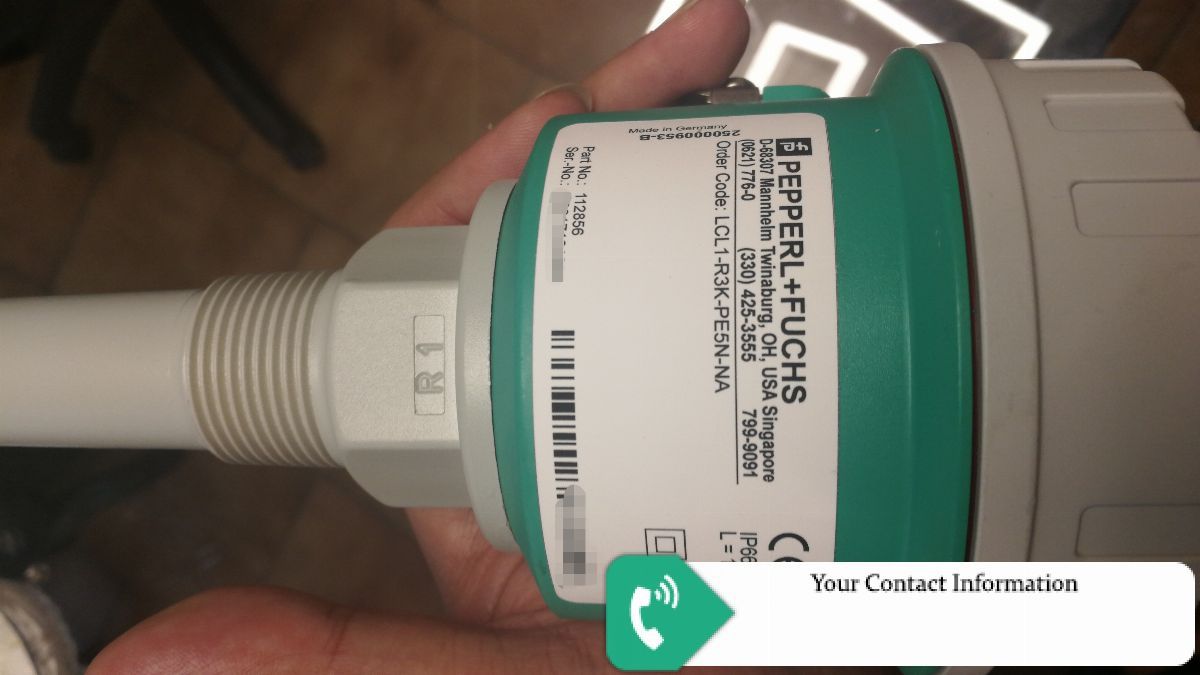

Pepperl & Fuchs
Limit switch for bulk solids.
Device with rod probe.
Complete unit consisting of the probe and electronic insert.
Integrated active build-up compensation: exact switch point, even with strong build-up.
Mechanically rugged: no wearing parts, long operating life, maintenance-free.
LCL = Capacitive limit switch
1 = Compact device
R3 = Thread EN 10226 R1, PPS
Probe length : K = 140 mm
P = Polyester housing F14, IP66, NEMA 4, cable gland M20

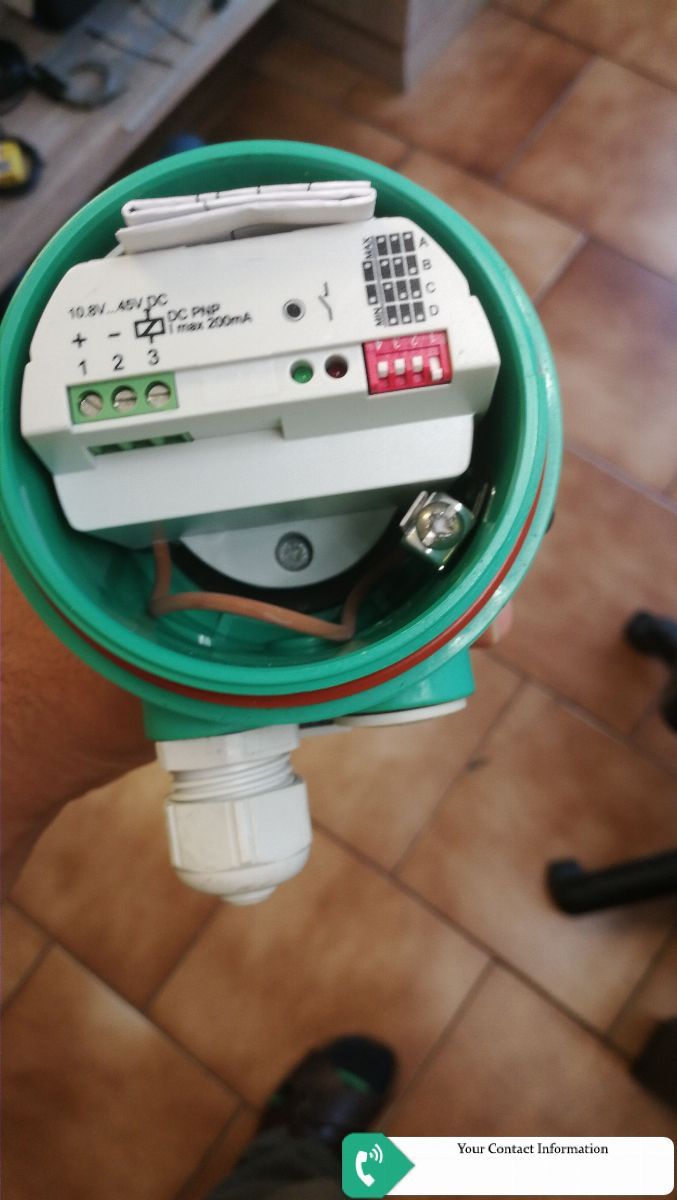

E5 = 3-wire, PNP, 10.8 V DC ... 45 V DC
N = Without additional equipment
NA = Version for non-hazardous area
