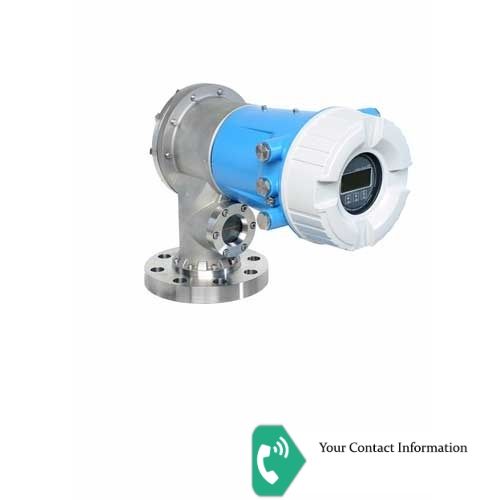

Proservo NMS81
Tank Gauging
BC=Approval: ATEX II 1/2G Ex db [ia Ga] IIC T6 Ga/Gb
2=Terminal Type: Screw terminals
B=Power Supply; Display: 85-264VAC; LCD + operation
A1=Primary Output: Modbus RS485
B2=Secondary I/O Analogue: Ex i/IS, 2x 4-20mA HART, 2x RTD input
X0=Secondary I/O Digital Ex d/XP: Not selected
AC=Housing: Transmitter Alu, coated, process 316/316L
1=Process Pressure: 0...0.2bar/20kPa/2.9psi
A=Electrical Connection: Thread M20, IP66/68 NEMA Type 4X/6P Encl.
D1=Measuring Range; Wire; Diameter: 28m; 316L; 0.15mm
1AC=Displacer Material; Type: 316L; 50mm cylindrical
A1=Process Sealing: HNBR -30...150oC/-22...302oF
AUJ=Process Connection: NPS 6" Cl.300 RF, 316/316L flange ASME B16.5
ICW=Accuracy, Custody Transfer Approval: Standard version, 3-point calibration certificate
