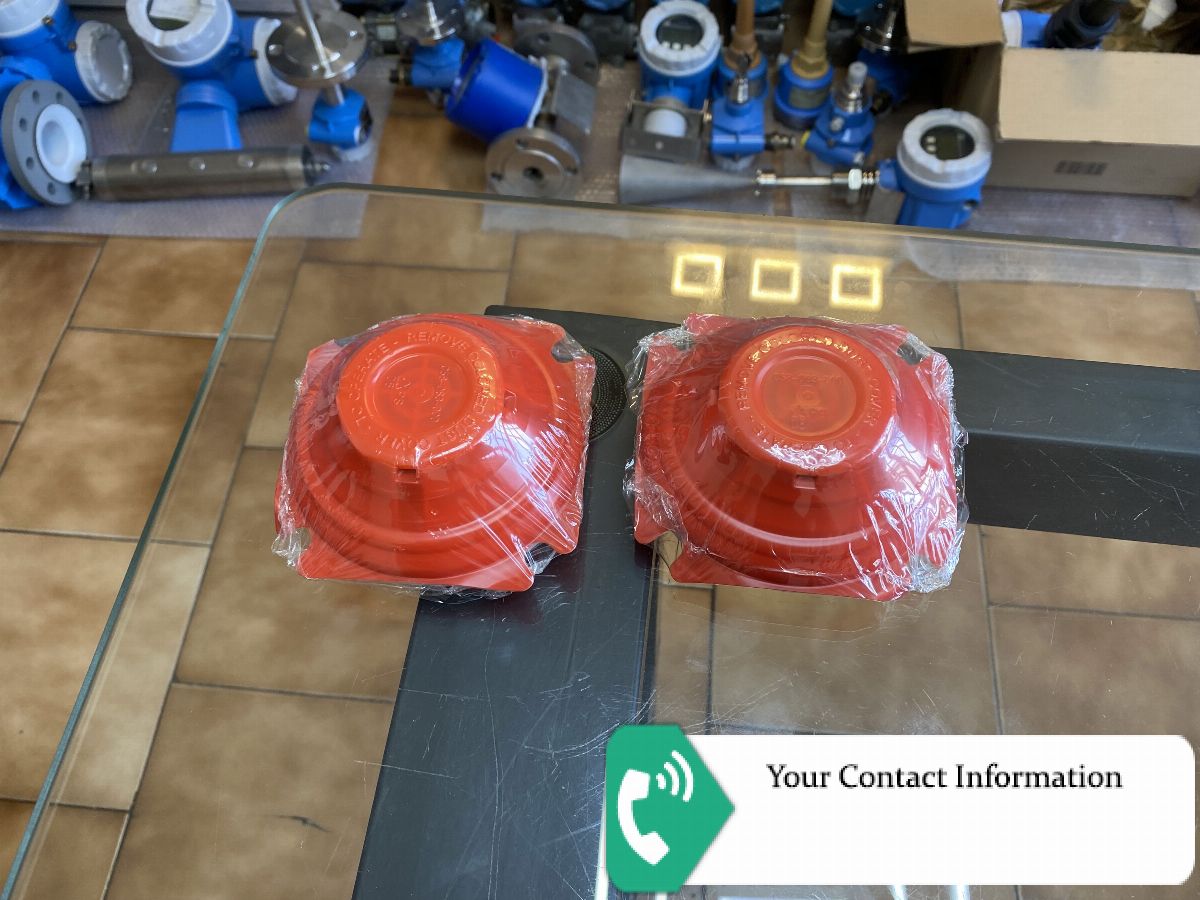

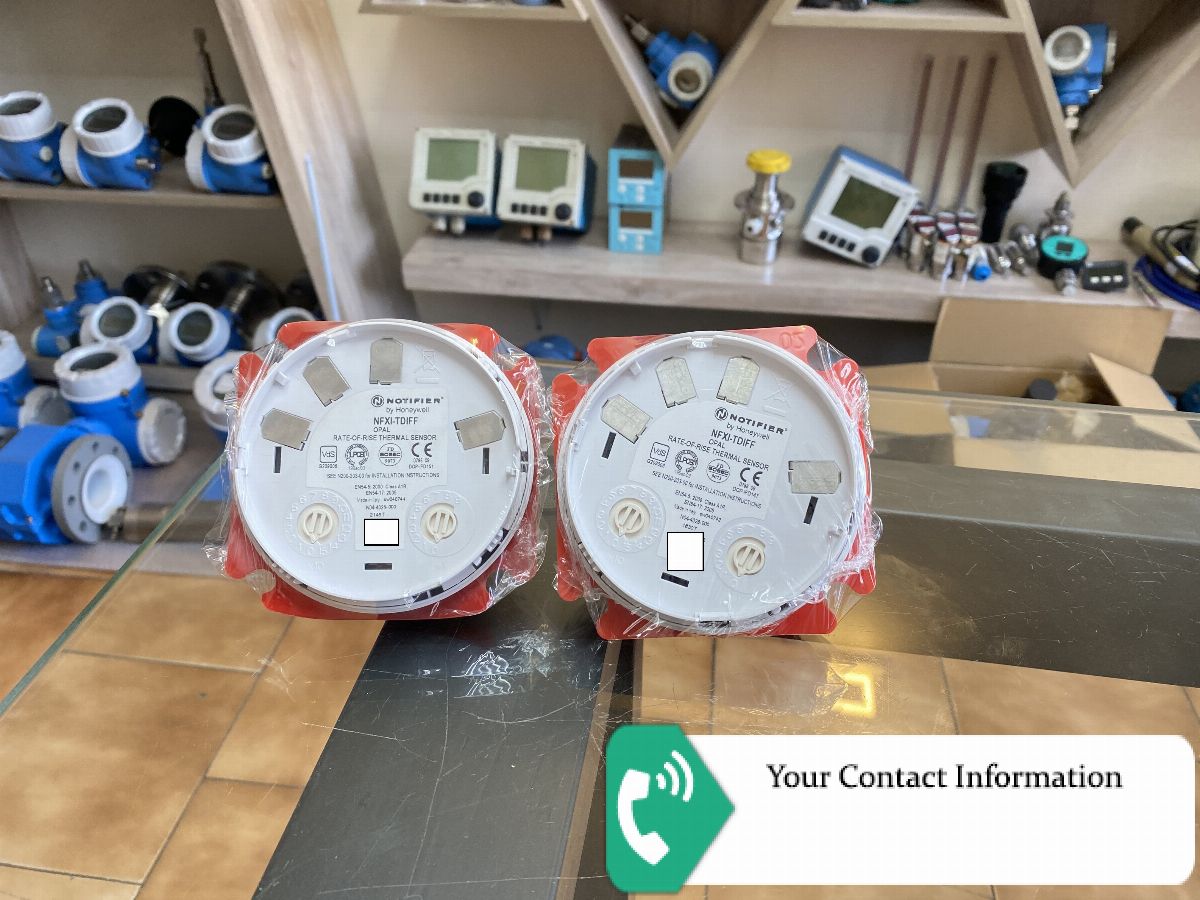

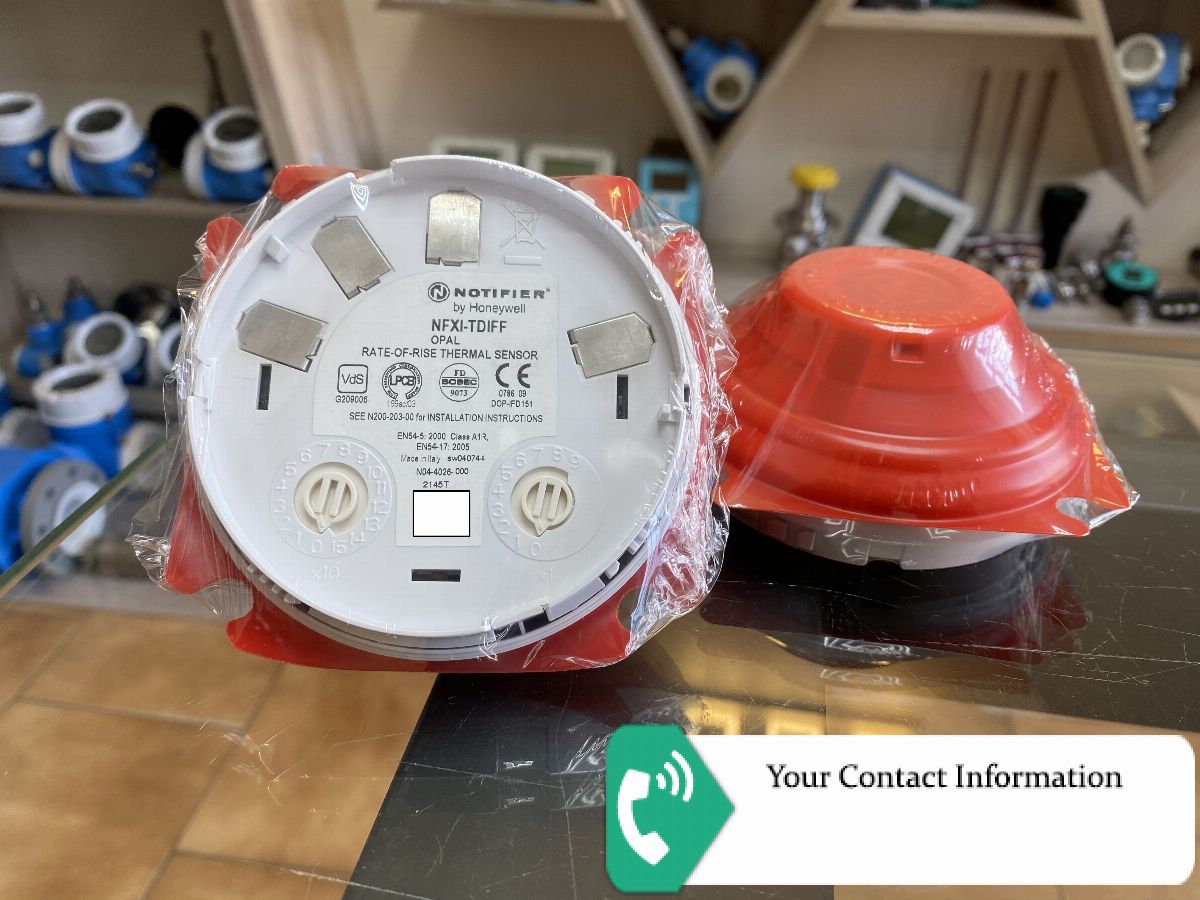

OPALTM Thermal Sensors NFXI-TDIFF
Operating Voltage Range: 15 to 28.5Vdc
Max. Standby Current=
200μA @ 24Vdc (no communications) /
300μA @ 24Vdc
Max. Continuous Current: 1A (switch closed)
Isolation Current: 15mA @ 24Vdc
LED Current=
Red: 3.5mA @ 24Vdc
Green: 7.0mA @ 24Vdc
Yellow: 10.5mA @ 24Vdc
Remote Output Voltage: 22.5Vdc
Remote Output Current: 10.8mA @ 24Vdc
Heat Detection Performance: Class A1R: 58°C fixed temperature and
rate of rise
