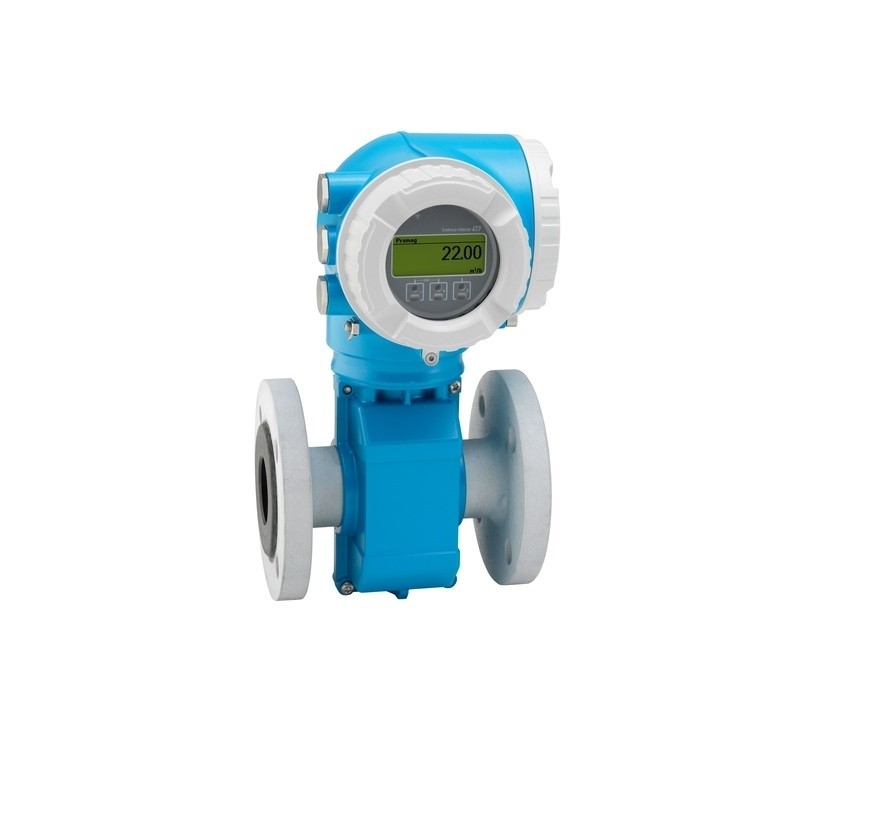

Electromagnetic flowmeter
Promag W 300, 5W3B40, DN40 1 1/2"
AA=Approval; Transmitter + Sensor: Non-hazardous area
E=Design: Fixed flange
BA=Output; Input 1: 4-20mA HART
A=Output; Input 2: W/o;
A=Output; Input 3: W/o;
F=Display; Operation: 4-line illum.; touch control
A=Housing: Alu, coated
A=Electrical Connection: Gland M20
U=Liner: Polyurethane
A1K=Process Connection: Cl.150, carbon steel, flange ASME B16.5
G=Electrodes: 1.4435/316L, bullet nose
A=Calibration Flow: 0.5%
A2=Device Model: 2 /.
